Product Details:
|
| Model Number: | R0901-CD1-B500K-17F | Type: | Rotary Potentiometer |
|---|---|---|---|
| Technology: | Carbon Film | Rated Power: | 0.05W |
| Resistance Tolerance: | ±20% | Max. Operating Voltage: | 250V AC 10A |
| 250V AC 10A: | Top Finger Adjustment | Withstand Voltage: | AC500V(1 Min) |
| Rotational Life: | 15,000cycles | Click Torque: | 50~150gf.cm |
| Rotational Torque: | 10~100gf.cm Or 20~200gf.cm | Push Pull Strenghth: | 8kgf MAX |
| High Light: | 0.05W 10k Audio Taper Potentiometer AC500V,AC500V 5k Linear Taper Potentiometer,0.05W Audio Taper Volume Pot |
||

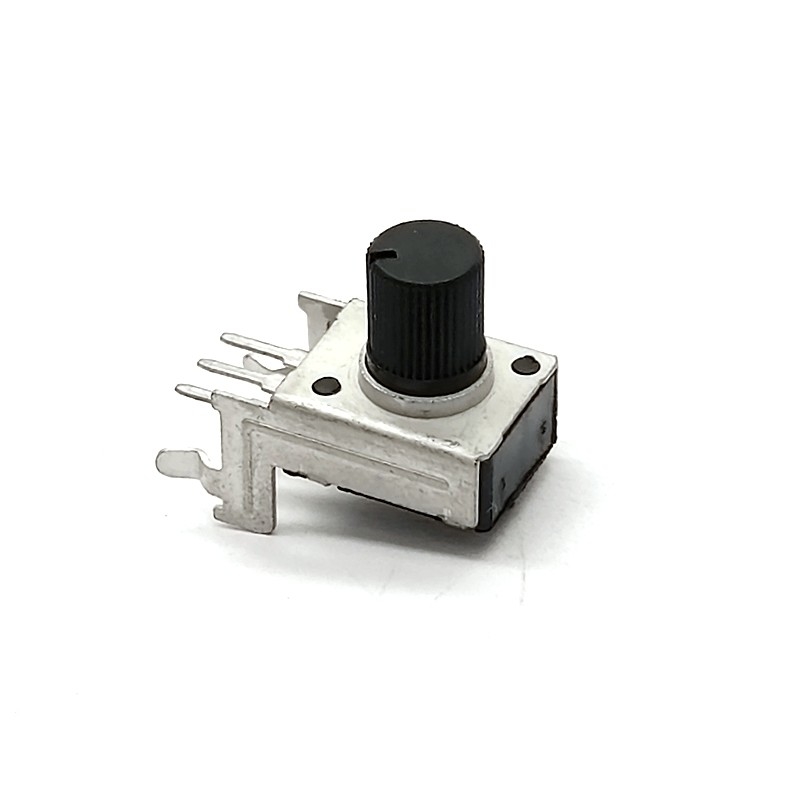

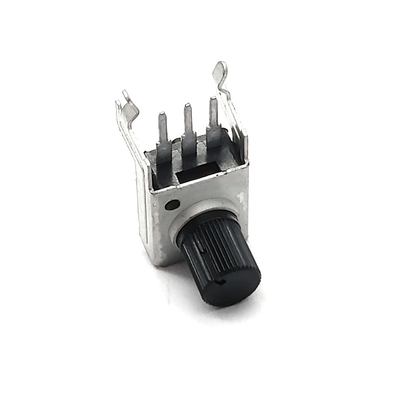

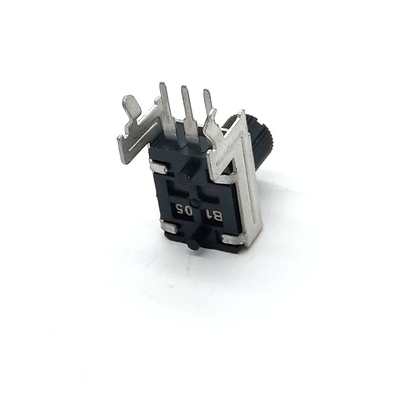

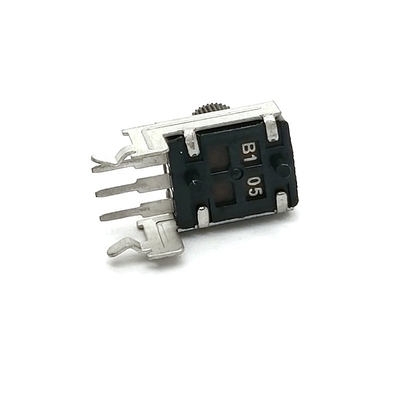

R0901 CD1-B500K-17F rotary potentiometer for high end speaker audio
About rotary potentiometer
1) Shaft type:: D shaft, R-shaft, K-shaft,Spline shaft
2) Taper: A,B,C.
3) Resistance value: 5-500K
4)Shaft length:10mm,15mm,20mm,25mm
5)Pin number:3
6)Gang number: 1,2,3,4
7)Pin type: N and P
Application
a) Audio mixer
b) Speaker
c) Microphone
d) Walkie-talkie
e) musical instrument
f) drones
g) earphones
h) amplifier
i) Dimmer adjustment
j) medical instrument
k) recorder
l) hair straigtener and curler and drier
m) sewing machines
n) juicer
o) electric fan
|
Applicaiton
We have a full range of special potentiometers, encoders and switches ,which are widely used for mixers,instruments, effects, car audio,air condition, lithgting control and household appliances contral panels ,all products are welcome customized.
Shipping
EMS: need 10-15 business days to reach your side
UPS: special express for North America,need 3-5 working days
DHL: normally 3-5 business days could reach your side
FEDEX: normally 3-10 business days could reach US and European
or By Ocean & By Air
Why choose us
Tianqian Electronics specialize in this field more than 20 years,with good quality and pretty competitive price.Variety of Designs, Provide Professional & Original Fashionable Designs, with more than thousand designs. Original manufacturer with direct factory price, Competitive & Fashionable. High management Standard for quality control. Small order acceptable: 500pcs are welcome. Safe payment terms: T/T, Western Union, are available. Prompt Delivery & Lowest shipping cost : We can ship out within 30 days for general order. OEM available, Customers' designs are warmly welcome
