Product Details:
|
| Operating Force: | 0.2~2N | Stopper Strength: | 50N |
|---|---|---|---|
| Lever Wobble: | 2 | Bending Moment: | 25mN.m |
| Push Pull Strength: | 30N | Click Slip-out Force: | 0.2~2N |
| Lever Deviation: | 0.5 Max | Total Resistance: | 5kΩ-2MΩ |
| Total Resistance Tolerance: | ±20％ | Resistance Taper: | A B C W |
| Insulation Resistance: | 100MΩ Min. At 250VDC | Withstand Voltage: | AC 300V |
| Rated Power: | 0.2W | Max. Operating Voltage: | 200AC V |
| Residual Resistance: | 100kΩ | Sliding Life: | 15000 Cycles |
| Application: | Sound Console | ||
| High Light: | C3044G Slide Potentiometer,Slide Potentiometer 8.1Mm,8.1Mm Wide Motorized Slide Pot |
||

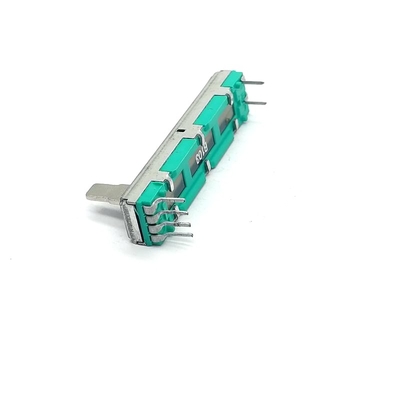

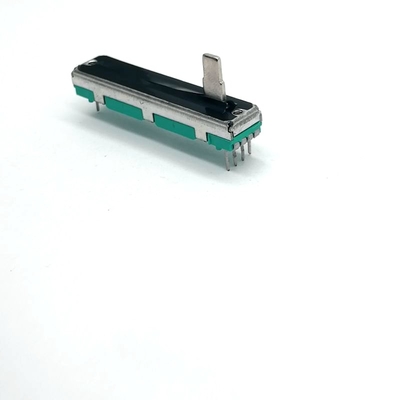

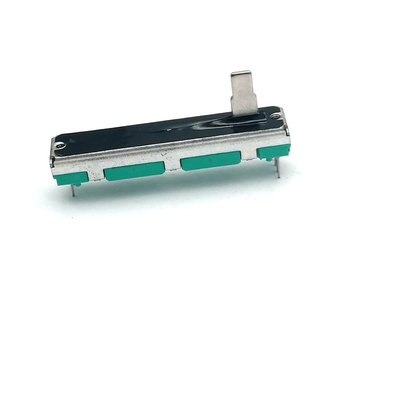

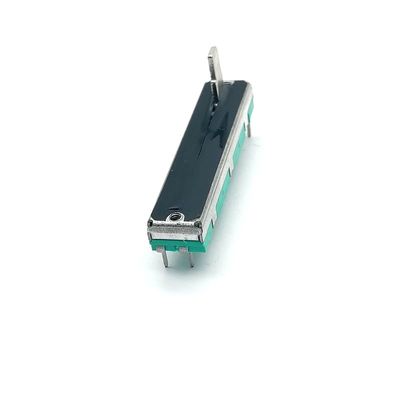

C3044G Metal Handle 30mm Travel 8.1 Mm Wide Used For Sound Console Earphone And Microphone
About slide potentiometer
1) Shaft type:: D shaft, R-shaft, K-shaft,Spline shaft
2) Taper: A,B,C.
3) Resistance value: 5-500K
4)Shaft length:10mm,15mm,20mm,25mm
5)Pin number:3
6)Gang number: 1,2,3,4
7)Pin type: N and P
|
Mechanical specification
|
|
|
operating force
|
0.2~2N
|
|
Stopper strength
|
50N
|
|
lever wobble
|
2 (2*L)/20mm max
|
|
bending moment
|
25mm.m (250gf.cm)
|
|
push pull strength
|
30N
|
|
Electrical specification
|
|
|
total resistance
|
5KΩ~2MΩ
|
|
resistance tolerance
|
±20% (more than 1MΩ ±30%)
|
|
resistance taper
|
A,B,C
|
|
Insulation resistance
|
100MΩ min @250V DC
|
Application
Products are widely used in: Internet of things,aviation model, OA transaction machine, computer perimeter,electronic toys,game, car image, power tools, intercom, household appliances, home theater, adjustable lighting and medical equipment,instruments and other fields
Company Profile
Dongguan TianQian Electronics Co., Ltd. established in 2008, it is specialized in design, development and production of high precision components such as Rotary Potentiometer, Sliding Potentiometer, Foot Switch, Band Switch, AC Switch, Sensor, Encoder, Tact Switch and Connectors. The products are widely used in Dimmable Lighting, Audio Mixer, Home Appliances, Automobile, Multimedia, Audio Equipments, Instrument, Toys, Aviation Model and Communication Equipments. We have an area of 3,000 square meters of factory building. Our R&D team members have more than 20 years experience in the component industry. In order to meet the high quality demand from worldwide customers, we widely use automated production lines which can output more than 80% of annual production capacity. It takes pride in the achievement that we have been the key supplier of JVC, Brother, IKEA, Midea, Microsoft, Honeywell, Sennheiser, Primax and GGEC...etc. With the consistent enterprise principles "Striving Excellence" & "Quality Assurance", we hope both parties can establish a mutual benefit relationship and create a win-win situation.
About slide potentiometer
1) lever type:: C lever, CA-lever, B-lever
2) Taper: A,B,C.W
3) Resistance value: 5-500K
4)lever length:10mm,15mm,20mm,25mm
5)Pin number:3
Application
a) Audio mixer
b) Speaker
c) Microphone
d) Walkie-talkie
e) musical instrument
f) drones
g) earphones
h) amplifier
i) Dimmer adjustment
j) medical instrument
k) recorder
l) hair straigtener and curler and drier
m) sewing machines
n) juicer
o) electric fan
Packing
1 polybag
2 inner box
3 carton
Our Advantages
1. Years of manufacturing experience
2. Variety of Type, Provide Professional Products with more than 2,000 type.
3. Original manufacturer with direct factory price, Competitive & Professional.
4. High Standard management for quality control.
5. Small order acceptable: 1,000 pieces.
6. Safe payment terms: T/T and Western Union are available.
7. Prompt Delivery & Lowest shipping cost : We can get low discount from DHL, Fedex, UPS, TNT, EMS, etc.
8. OEM, ODM available.
9. Got good reputation both at home and abroad. Long-term Supplier for Customers' reference.
10. Excellent Service, Smooth export procedure
