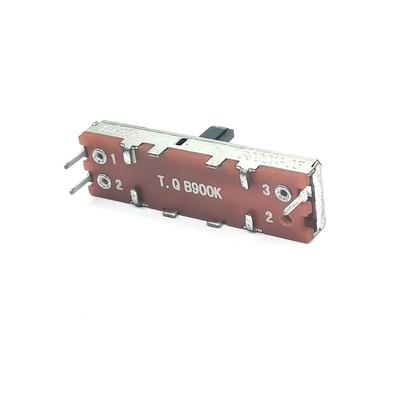

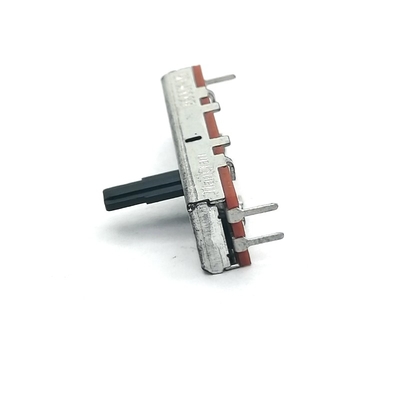

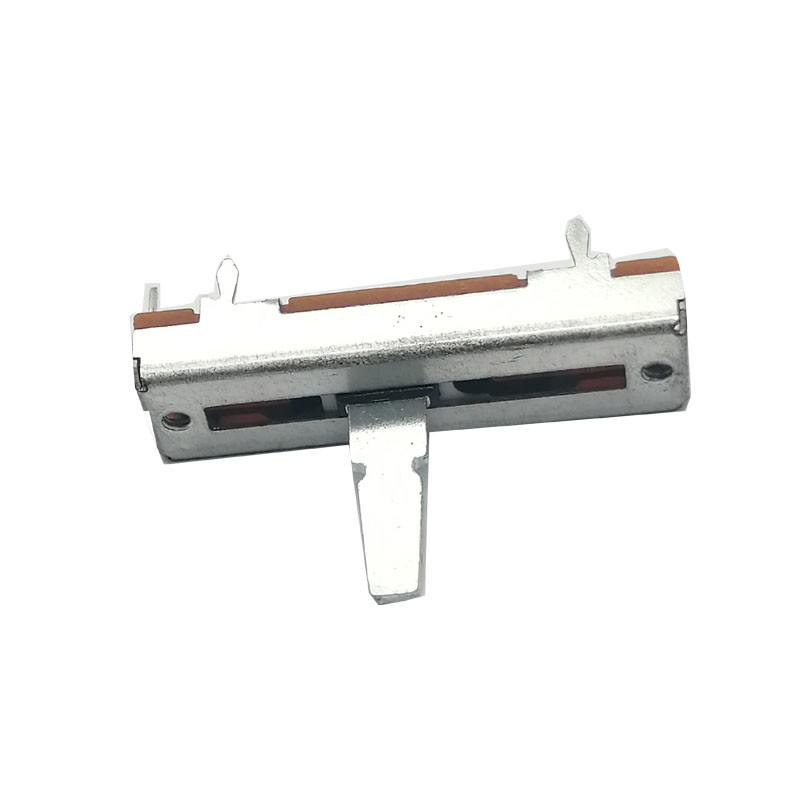

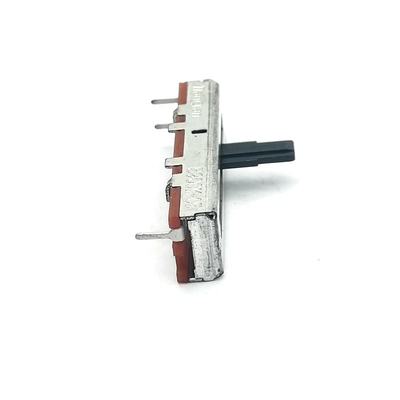

20mm Travel Motorized Slide Potentiometer 5K Slide Pot For Soundbox

Large Image : 20mm Travel Motorized Slide Potentiometer 5K Slide Pot For Soundbox

Product Details:

Place of Origin:	CHINA
Brand Name:	TQ
Certification:	CE
Model Number:	C2031

Payment & Shipping Terms:

Minimum Order Quantity:	500 piece
Price:	USD 0.1~0.26 piece
Packaging Details:	Carton with blister box inside
Delivery Time:	25 days
Payment Terms:	T/T, Western Union
Supply Ability:	100000 piece per day

Contact Now

20mm Travel Motorized Slide Potentiometer 5K Slide Pot For Soundbox

Description

Model Number:	C2031	Type:	Slide Potentiometer
D/C:	C2031	Technology:	Carbon Film
Resistance:	5K~500K	Resistance Tolerance:	+/- 20%
Rated Power:	0.05W	Max. Operating Voltage:	AC 250V
Operating Temperature:	-20~+70	Packaging:	Mental
Power (Watts):	0.2W	Tolerance:	±1%
Adjustment Type:	Slide	Diameter:	20
Length:	15	Mounting Type:	Assemble
Termination:	Pin	Package / Case:	Mental
Built In Switch:	None	Temperature Coefficient:	±50ppm/°C
Resistive Material::	Carbon	Termination Style::	PC Pin
Actuator Type:	Knob	Actuator Length:	2mm
Actuator Diameter:	0.217" (5.50mm)	Bushing Thread:	M2
Shaft Size:	0.236" (6.00mm)	Number Of Turns:	1
Cross Reference:	5	Key Words:	Slide Potentiometer 1K 5K 10K 500K
PAYMENT:	T/T	Model:	BOCHEN Cermet Trimmer 3296W
Certification:	ISO14001	Delivery Time:	7-10 Days(exact Time
Insulation Resistance:	100M	Travel:	20mm
Usage:	Audio
Highlight:	20mm Travel Motorized Slide Potentiometer , Motorized Slide Potentiometer 5K , 5K Slide Pot

20mm Travel Slide Potentiometer Carbon Film For Mixing Console And Soundbox

What is a potentiometer used for?

A potentiometer is a type of position sensor. They are used to measure displacement in any direction. Linear potentiometers linearly measure displacement and rotary potentiometers measure rotational displacement.

How does a slide potentiometer work?

Potentiometers work by varying the position of a sliding contact across a uniform resistance. In a potentiometer, the entire input voltage is applied across the whole length of the resistor, and the output voltage is the voltage drop between the fixed and sliding contact.

Specification

item	value
Model Number	C2031S-1A2-B900K-9N
Type	Slide Potentiometer
Place of Origin	China
	Guangdong
Brand Name	TQ
D/C	C2031S-1A2-B900K-9N
Technology	Carbon Film
Resistance	5K-2M
Resistance Tolerance	±20%(more than 1MΩ±30%)
Rated Power	0.15W
Max. Operating Voltage	200V AC
Operating Temperature	-20°C to +70°C
Brand	Slide Potentiometer
Packaging	standard
Power (Watts)	0.1
Tolerance	±10%
Adjustment Type	Top Adjustment
Diameter	20mm
Length	standard
Mounting Type	insert
Termination	pin
Package / Case	metal
Built in Switch	Push-Pull, SPST
Temperature Coefficient	0.05
Rotation	300°
Resistive Material	Carbon
Termination Style	PC Pin
Actuator Type	Knob
Actuator Length	standard
Actuator Diameter	Not Applicable
Bushing Thread	M8 x 0.75
Shaft Size	Not Applicable
Number of Turns	15000 cycles
Cross Reference	ALPHA
Product name	15mm slide Potentiometer
Insulation Resistance	100M Min. 500V DC
Keywords	Volume Control 10k Linear Potentiometer
Key words 2	Dual Potentiometer Switch
Appliance	Audio
Shaft Type	Round Shaft
Item	Linear Motion Potentiometer

20mm Travel Motorized Slide Potentiometer 5K Slide Pot For Soundbox 0

Application

Products are widely used in: Internet of things,aviation model, OA transaction machine, computer perimeter,electronic toys,game, car image, power tools, intercom, household appliances, home theater, adjustable lighting and medical equipment,instruments and other field.

Certifications&Exhibition

Workshop

Cooperation partner

FAQ

1. How can Tianqian guarantee quality?
Pre-production sample before mass production;
Final Inspection before shipment;

2.what product does Tianqian electronic supply?
Potentiometer,encoder,switch,Foot Switch,Rotary Switch

3. why does client choose Tianqian?
R&D team have more than 20 years experience in the component industry.Our customers through all over the world,such as Brother,,Microsoft,Honeywell etc. The products widely used in aviation model,communication equipment, adjustable lighting.

4. what services can we provide?
Delivery Terms: FOB,CFR,CIF,EXW,FCA,DDP,DDU,Express Delivery；
Payment Currency:USD,EUR,HKD,CNY;
Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash;
