Product Details:
|
| Number Of Pules(360degree): | 10pules/20pules | Supply Voltage: | 5 VDC |
|---|---|---|---|
| Max. Operating Current: | 10mA | Total Rotational Angle: | 360degree(Endless) |
| Withstand Voltage: | 300v AC | Dielectric: | 1 Minute At AC 110V |
| Resolution: | 30000 Cycles | Application: | Induction Cooker，oven Microwave Oven，car Audio Volume |
| High Light: | EC35 Hollow Shaft Incremental Encoder,Hollow Shaft Incremental Encoder 10mA,10mA Hollow Rotary Encoder |
||

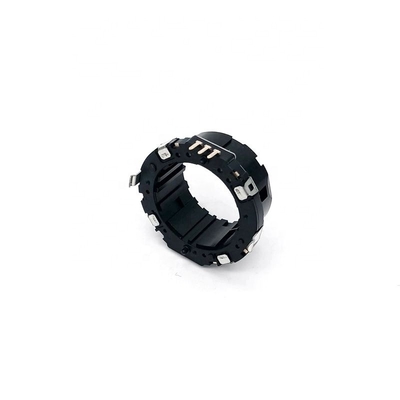

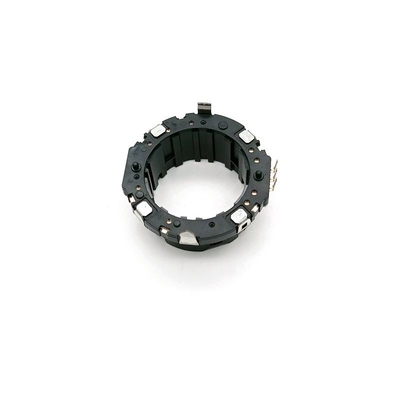

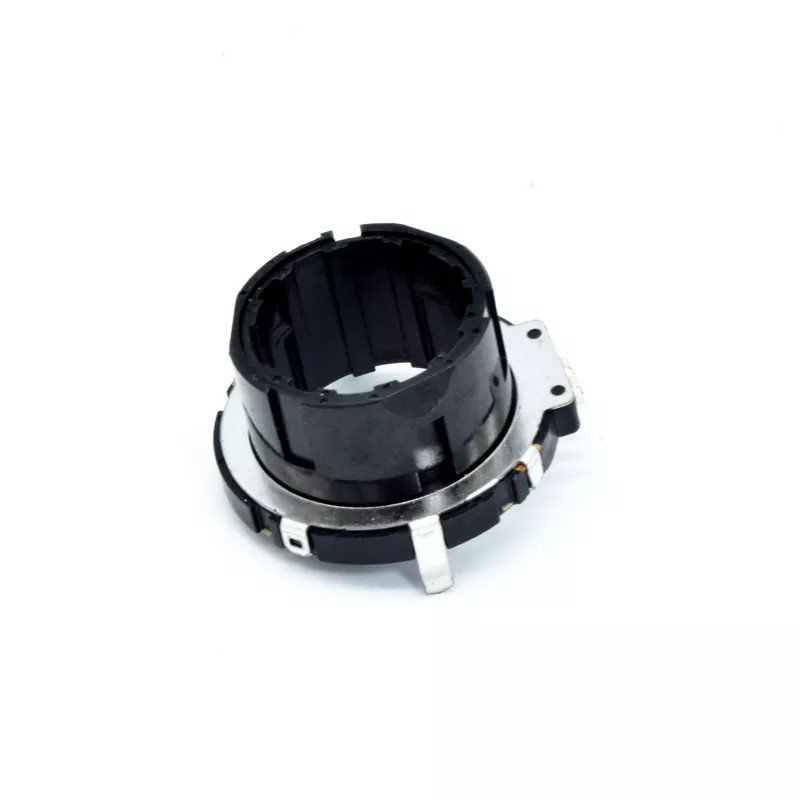

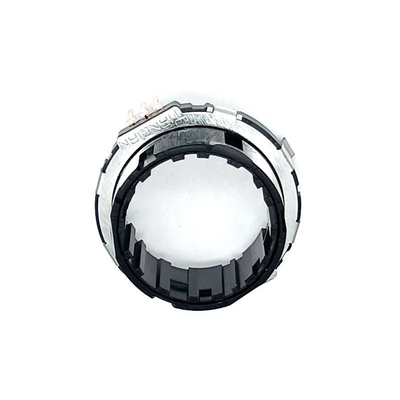

EC35 35mm hollow encoder induction cooker oven microwave car navigation audio 360 degree incremental encoder
Product Description
An encoder is a device that compiles and converts signals (such as bitstreams) or data into signals that can be used for communication, transmission, and storage. The encoder converts angular displacement or linear displacement into electrical signals. The former is called a code disc, and the latter is called a code stick. Encoders can be divided into contact type and non-contact type according to the way of readout. According to the working principle, encoders can be divided into two types: incremental and absolute. Incremental encoder is to convert the displacement into periodic electrical signals, and then the electrical signals into counting pulses, with the number of pulses to represent the size of the displacement. Each position of the absolute encoder corresponds to a certain digital code, so its value is only related to the starting and ending positions of the measurement, and has nothing to do with the intermediate process of measurement.
Specification
|
ENCODERS EC21/25/28/35/43
|
|
|
Total rotational angle
|
360°
|
|
Rotational Torque
|
50-200gf.cm
|
|
Operating temperature range
|
-30℃-80℃
|
|
Rating
|
5V DC, 10mA
|
|
Withstand voltage
|
300V AC
|
|
Max Operating voltage
|
10mΩ 1Minute at DC 110V
|
|
Insulation resistance
|
1 Minute at AC 110V
|
|
Rotational Life
|
30000 cycles min
|
Packing & Delivery
UPS: special express for North America,need 3-5 working days
DHL: normally 3-5 business days could reach your side
FEDEX: normally 3-10 business days could reach US and European or By Ocean & By Air
Service:WELCOME TO ASK ANY QUESTIONS. Any inquiry will be replied in 12 hours.
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Workshop
Company Profile
Dongguan TianQian Electronics Co., Ltd. established in 2008, it is specialized in design, development and production of high precision components such as Rotary Potentiometer, Sliding Potentiometer, Foot Switch, Band Switch, AC Switch, Sensor, Encoder, Tact Switch and Connectors. The products are widely used in Dimmable Lighting, Audio Mixer, Home Appliances, Automobile, Multimedia, Audio Equipments, Instrument, Toys, Aviation Model and Communication Equipments. We have an area of 3,000 square meters of factory building. Our R&D team members have more than 20 years experience in the component industry. In order to meet the high quality demand from worldwide customers, we widely use automated production lines which can output more than 80% of annual production capacity. It takes pride in the achievement that we have been the key supplier of JVC, Brother, IKEA, Midea, Microsoft, Honeywell, Sennheiser, Primax and GGEC...etc. With the consistent enterprise principles "Striving Excellence" & "Quality Assurance", we hope both parties can establish a mutual benefit relationship and create a win-win situation.
Certifications & Exhibition
Application
Encoder products are common for some automotive navigation volume control, small household appliances microwave ovens, ovens, washing machines, medical equipment ventilators, microphone and so on
Product Drawing
