Product Details:
|
| Product Name: | Electric Guitar Potentiometer | Total Rotational Angle: | 300°±5° |
|---|---|---|---|
| Total Resistance: | 5KΩ~2MΩ | Resistance Taper: | A,B |
| WIthstand Voltage: | For 1 Minute Or More At DC500V | Insulation Resistance: | More Than100MΩ At DC500V |
| Max.operating Voltage: | B:200V AC Other Than B:150V AC | Rated Power: | B:0.125W Other Than B:0.06w |
| Application: | Control The Volume Of Electric Guitar And Bass | ||
| High Light: | 16mm Push Pull Potentiometer,volume pot DPDT,DPDT Electric Guitar Potentiometers |
||

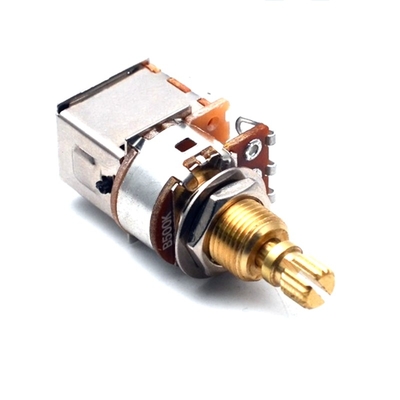

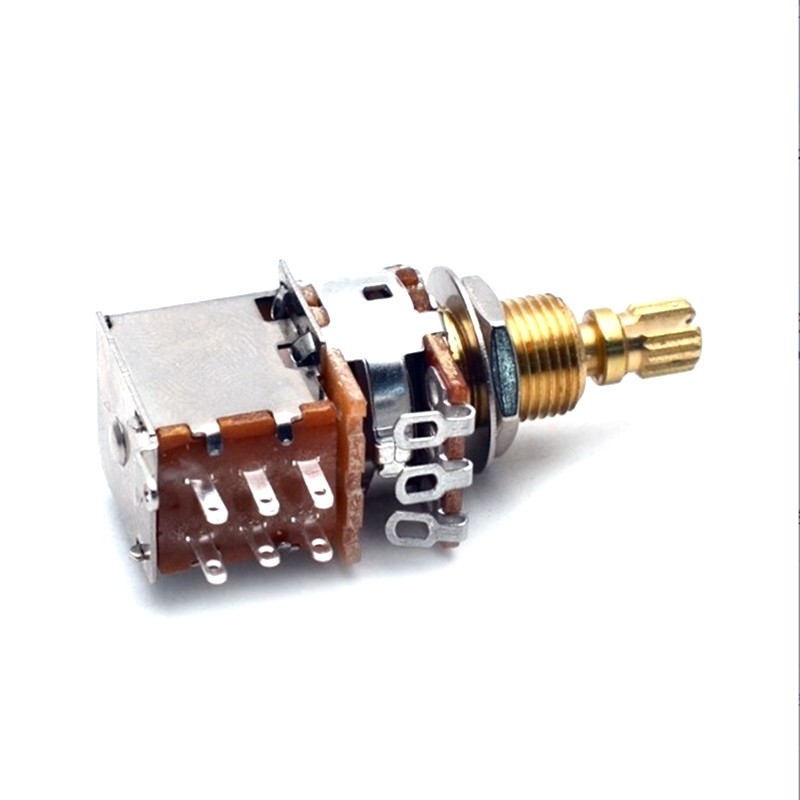

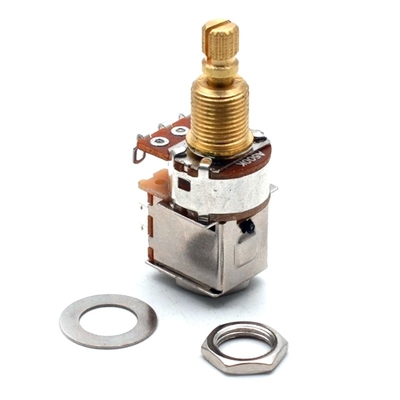

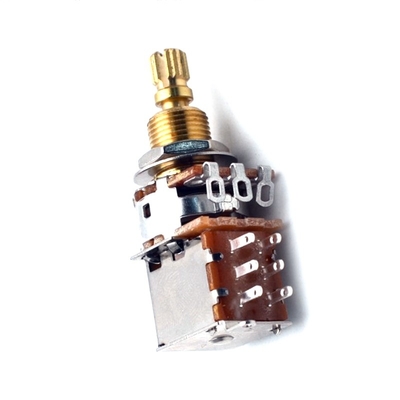

16mm brass shaft pull switch DPDT potentiometer for electric bass electric guitar rotary potentiometer
Specification
|
item
|
value
|
|
Model Number
|
SP-RA16K1
|
|
Type
|
Rotary Potentiometer
|
|
Place of Origin
|
China
|
|
Brand Name
|
tianqian
|
|
Technology
|
Carbon Film
|
|
Max. Operating Voltage
|
B:200V AC other than B:150V AC
|
|
Total rotational angle
|
300°±5°
|
|
Rotational torque
|
2-20mN.m(20~200gf.cm)
|
|
Push pull strength
|
80N(8kgf)
|
|
Bushing nut tighting strengty
|
0.4N.m(4kgf.cm)
|
|
Total Resistance
|
5KΩ~2MΩ
|
|
Total resistance tolerance
|
±20%(more than 1MΩ±30%
|
|
Resistance taper
|
A,B
|
|
Rated power
|
B:0.125W other than B:150V AC
|
|
WIthstand voltage
|
for 1 minute or more at DC500V
|
|
Rotational life
|
10000 Cycels
|
Packing & Delivery
1. Bags, blister boxes, bubble wrap, boxes, cartons
2. Each carton shall be labeled with the original label to register the items in the carton
3. Original packaging, reasonable cutting boxes to save freight
4. Invoices are available
UPS: special express for North America,need 3-5 working days
DHL: normally 3-5 business days could reach your side
FEDEX: normally 3-10 business days could reach US and European or By Ocean & By Air
Service:WELCOME TO ASK ANY QUESTIONS. Any inquiry will be replied in 12 hours.
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Workshop
As a manufacturer, we have mature manual production line and automatic equipment production line, all products must pass all manual inspection before leaving the factory. Large quantities of automatic equipment, small batches of manual responsibility. These production lines are designed to support customer site visits and a steady stream of products are shipped from our factories every day.
Company Profile
Dongguan TianQian Electronics Co., Ltd. established in 2008, it is specialized in design, development and production of high precision components such as Rotary Potentiometer, Sliding Potentiometer, Foot Switch, Band Switch, AC Switch, Sensor, Encoder, Tact Switch and Connectors. The products are widely used in Dimmable Lighting, Audio Mixer, Home Appliances, Automobile, Multimedia, Audio Equipments, Instrument, Toys, Aviation Model and Communication Equipments. We have an area of 3,000 square meters of factory building. Our R&D team members have more than 20 years experience in the component industry. In order to meet the high quality demand from worldwide customers, we widely use automated production lines which can output more than 80% of annual production capacity. It takes pride in the achievement that we have been the key supplier of JVC, Brother, IKEA, Midea, Microsoft, Honeywell, Sennheiser, Primax and GGEC...etc. With the consistent enterprise principles "Striving Excellence" & "Quality Assurance", we hope both parties can establish a mutual benefit relationship and create a win-win situation.
Certifications & Exhibition
Application
Potentiometer is often used for audio control, tuning, dimming, speed regulation, temperature regulation, fog regulation. For example: mixing desk, guitar effects, stereo, headphones, walkie-talkie, radio, amplifier, audio amplifier, mechanical equipment, punch, recorder, sewing machine, medical equipment, microphone and so on.
Products are widely used in: Internet of things,aviation model, OA transaction machine, computer perimeter,electronic toys,game, car image, power tools, intercom, household appliances, home theater, adjustable lighting and medical equipment,instruments and other fields
FAQ
Q: what is your MOQ for this item?
A: MOQ is 1000, but always flexible.
Q: Can I get some samples?
A: Sure, Sample order is available.
Q: what about lead time?
A: 7-10 days after deposit received.
Q: terms of payment?
A: Trade Assurance, T/T, credit card, western union, cash, Money Gram, Paypal
Q: My item was damaged in shipping?
A: Our parts are carefully packaged to prevent damage in shipping. If there is any damage, we will send you a new one
