Product Details:
|
| Total Resistance: | 5KΩ~2MΩ | Total Resistance Tolerance: | ±20%(more Than 1MΩ±30%) |
|---|---|---|---|
| Withstand Voltage: | AC300V(1min) | Resistance Taper: | A,B,C,W |
| Sliding Life: | 15,000 Cycles | Insulation Resistance: | 100MΩ Min.250V DC |
| Power (Watts): | B 0.2W Other Than B:0.1W | Push Pull Strength: | 30N(3.0kgf) |
| Operating Force: | 0.2~2N(20~200gf) | Appliaction: | Instrument Sound Card, Mixing Desk, Tuning Fan |
| Highlight: | 45mm Length Slide Fader,Slide Fader AC300V,AC300V B10k Slide Potentiometer |
||

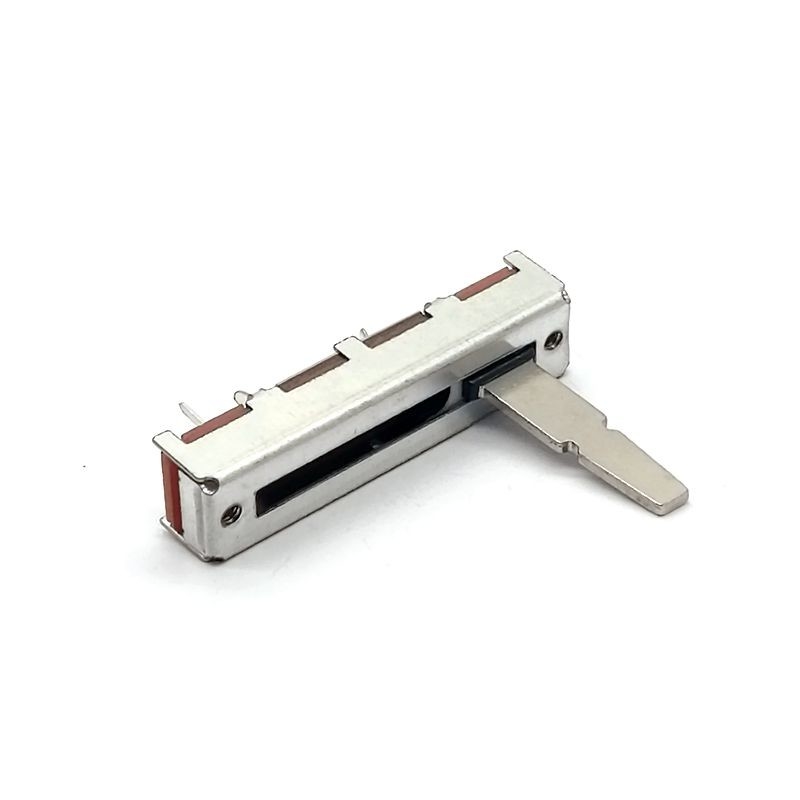

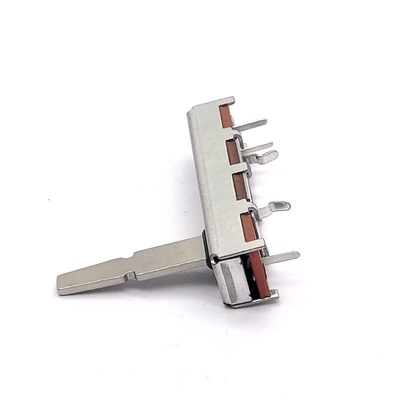

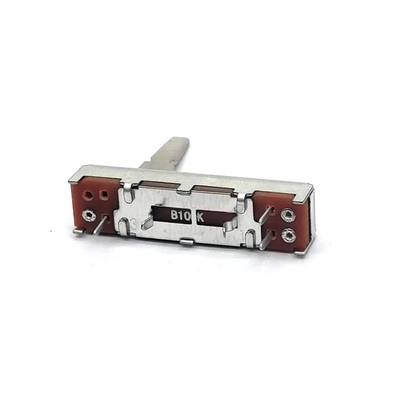

C3043N 30mm stroke single linear slide potentiometer 45mm length metal push handle sound card sliding rheostat
Product Description
Potentiometer Potentiometer, also known as Pot and a little more literally as a Potentiometer, is commonly known in Chinese as a Variable Resistor (VR) or simply the Variable Resistor. It is a variety of mostly three terminals, with two fixed contacts and a sliding one. Electronic components that can change the resistance value between the sliding end and the two fixed ends by sliding are passive components. When used, different partial pressure ratios can be formed to change the potential of the sliding point, hence the name.
As for rheostat, which has only two terminals (or the ones that have kept the sliding ends connected to one of the fixed ends, and have only two effective terminals), they are not called potentiometers but only variable resistors.
Common carbon film or ceramic metal film potentiometer can be through copper foil or copper sheet and printing film contact, by rotating or sliding output, input end of different resistance. The potentiometer that needs higher power is to use wire to wind type.
Potentiometer can combine to incidental other function sometimes, for example the potentiometer that certain volume controls uses is attached switch, can hold concurrently the function that makes volume and power supply switch, right now it is incidental to close power supply in the least one end of volume normally.
Product Drawing
Specification
|
item
|
value
|
|
Model Number
|
C2043N
|
|
Type
|
Slide Potentiometer
|
|
Place of Origin
|
China
|
|
|
Guangdong
|
|
Brand Name
|
TQ
|
|
Technology
|
Carbon Film
|
|
Resistance
|
5KΩ~2MΩ
|
|
Resistance Tolerance
|
±20%
|
|
Rated Power
|
B 0.2W other than B:0.1W
|
|
Max. Operating Voltage
|
B:AC 200V other than B:AC 150V
|
|
Operating Temperature
|
-20~+70
|
|
Brand
|
C2043N
|
|
Packaging
|
Metals and Plastics
|
|
Power (Watts)
|
B 0.2W other than B:0.1W
|
|
Tolerance
|
±20%
|
|
Adjustment Type
|
Slide
|
|
Diameter
|
35mm,45mm,60mm,75mm
|
|
Length
|
15mm
|
|
Mounting Type
|
pc pin
|
|
Termination
|
PCB
|
|
Package / Case
|
encapsulation
|
|
Built in Switch
|
None
|
|
Temperature Coefficient
|
0.05
|
|
Rotation
|
Not Applicable
|
|
Resistive Material
|
Carbon
|
|
Termination Style
|
PC Pin
|
|
Actuator Type
|
Slotted
|
|
Actuator Length
|
15mm
|
|
Actuator Diameter
|
0.197" (5.00mm)
|
|
Bushing Thread
|
Not Applicable
|
|
Shaft Size
|
Not Applicable
|
|
Number of Turns
|
10
|
|
Model Number
|
C2043N
|
|
Insulation Resistance
|
100MΩ Min.250V DC
|
|
Operating Force
|
0.2~2N(20~200gf)
|
|
bending moment
|
25mM.m(250gf.cm)
|
|
push pull strength
|
30N(3.0kgf)
|
|
total resistance
|
5KΩ~2MΩ
|
|
total resistance tolerance
|
±20%(more than 1MΩ±30%)
|
|
Withstand voltage
|
AC300V(1min)
|
|
resistance taper
|
A,B,C,W
|
|
sliding life
|
15,000 cycles
|
Packing & Delivery
1. Bags, blister boxes, bubble wrap, boxes, cartons
2. Each carton shall be labeled with the original label to register the items in the carton
3. Original packaging, reasonable cutting boxes to save freight
4. Invoices are available
5. Fedex, UPS, DHL online shipping
UPS: special express for North America,need 3-5 working days
DHL: normally 3-5 business days could reach your side
FEDEX: normally 3-10 business days could reach US and European or By Ocean & By Air
Service:WELCOME TO ASK ANY QUESTIONS. Any inquiry will be replied in 12 hours.
