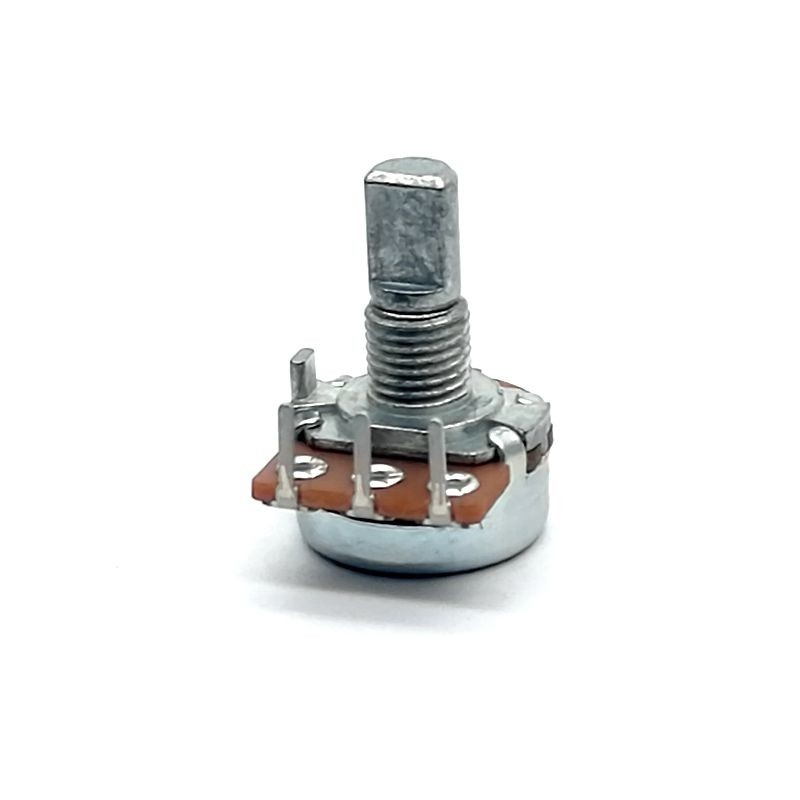

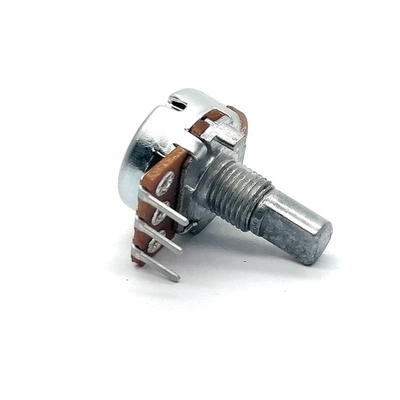

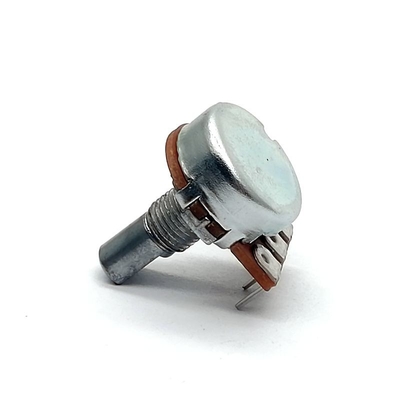

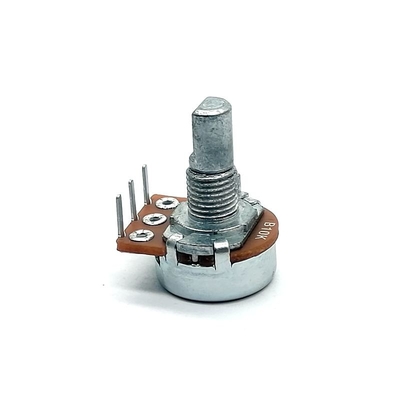

70N Single Gang Potentiometer 16mm 5k Potentiometer With On Off Switch

16mm single connected tripin reverse terminal rotary potentiometer for multimedia audio, amplifier, audio control

Specification

Packing & Delivery

Millions of goods are shipped from our factories every day on fedex, DHL or UPS planes and ships to all parts of the world.
All products are protected by blister boxes and shockproof foam board messages, and the external use of high hardness cartons to protect products while reducing weight. Let each product safely delivered to the hands of customers.

TQ team will provide you with the most intimate service.

Dongguan TianQian Electronics Co., Ltd. established in 2008, it is specialized in design, development and production of high precision components such as Rotary Potentiometer, Sliding Potentiometer, Foot Switch, Band Switch, AC Switch, Sensor, Encoder, Tact Switch and Connectors. The products are widely used in Dimmable Lighting, Audio Mixer, Home Appliances, Automobile, Multimedia, Audio Equipments, Instrument, Toys, Aviation Model and Communication Equipments. We have an area of 3,000 square meters of factory building. Our R&D team members have more than 20 years experience in the component industry. In order to meet the high quality demand from worldwide customers, we widely use automated production lines which can output more than 80% of annual production capacity. It takes pride in the achievement that we have been the key supplier of JVC, Brother, IKEA, Midea, Microsoft, Honeywell, Sennheiser, Primax and GGEC...etc. With the consistent enterprise principles "Striving Excellence" & "Quality Assurance", we hope both parties can establish a mutual benefit relationship and create a win-win situation.

Application

Potentiometers consist of a resistive element, a sliding contact (wiper) that moves along the element, making good electrical contact with one part of it, electrical terminals at each end of the element, a mechanism that moves the wiper from one end to the other, and a housing containing the element and wiper.

You will often see them in some multimedia speakers, amplifiers, recording equipment and other audio control devices.

Products are widely used in: Internet of things,aviation model, OA transaction machine, computer perimeter,electronic toys,game, car image, power tools, intercom, household appliances, home theater, adjustable lighting and medical equipment,instruments and other fields

Workshop

As a production factory, our advantage lies in that we not only have a rich variety of products and accept specifications customization, the production factory product quality is guaranteed, each product can be traced, and direct sales price concessions!Let's talk about your needs

FAQ

1. How do linear and rotary potentiometers work

Potentiometers work by varying the position of a sliding contact across a uniform resistance. In a potentiometer, the entire input voltage is applied across the whole length of the resistor, and the output voltage is the voltage drop between the fixed and sliding contact.

2. How does a potentiometer measure displacement?

To measure the displacement of the body, this body, which is moving, is connected to the sliding element of the potentiometer. As the body moves, the position of the slider located on the potentiometer also changes so the resistance between the fixed point and the slider changes.

3.What is the purpose of using potentiometer in displacement sensor?

The simplest type of Displacement Sensor involves the action of displacement in moving the wiper of a potentiometer. This device then converts linear or angular motion into a changing resistance that may be converted directly to voltage and/ or current signals.
