Product Details:
|
| Total Resistance: | 5KΩ~2MΩ | Total Resistance Tolerance: | ±20% |
|---|---|---|---|
| Resistance Taper: | A,B,C,W | Sliding Life: | 15,000 Cycles |
| Push Pull Strength: | 30N(3.0kgf) | Bending Moment: | 25mM.m(250gf.cm) |
| Stopper Strength: | 50N(5kgf) | Lever Deviation: | 0.5max |
| Operating Force: | 0.2~2N(20~200gf) | Application: | Slide The Mixer, The Mixer,sound Card |
| High Light: | TQ 100mm Motorized Fader,100mm Motorized Fader 25mM.m,25mM.M Single Potentiometer Slide |
||

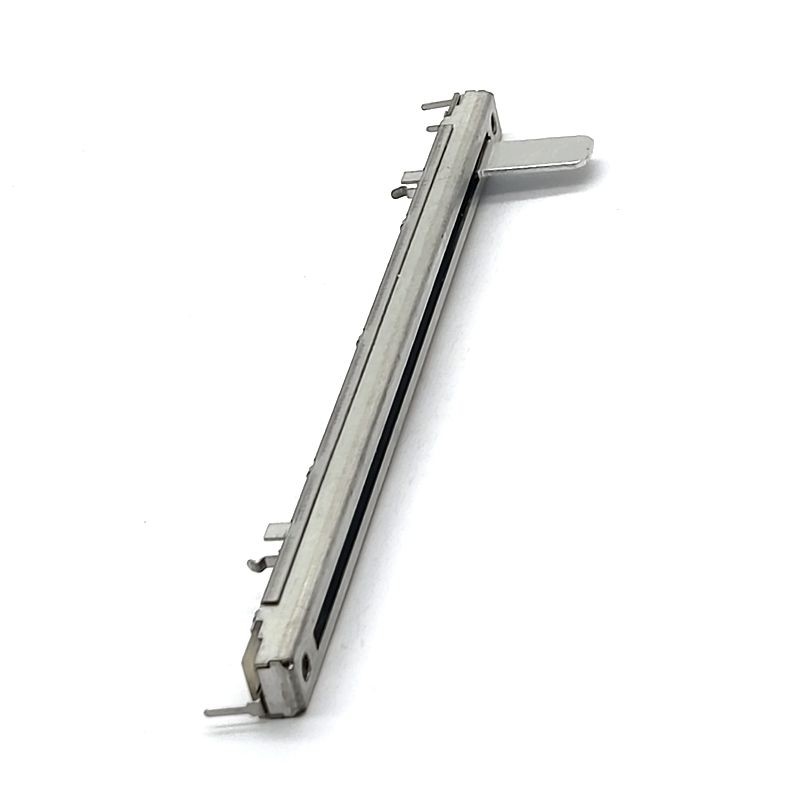

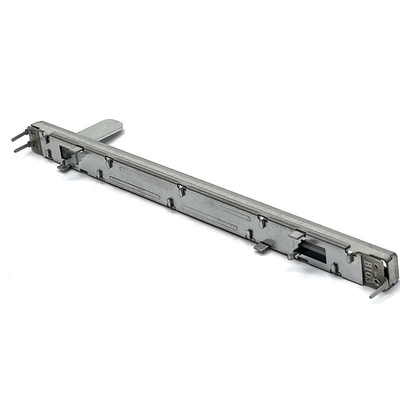

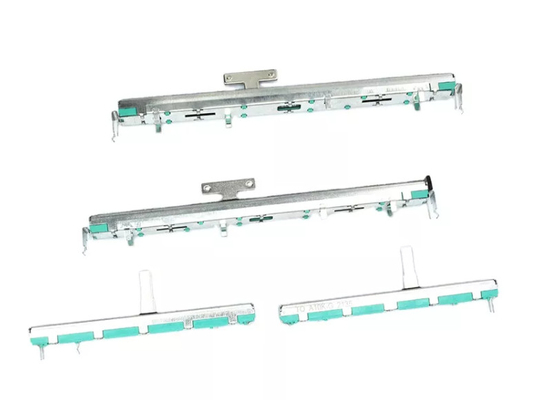

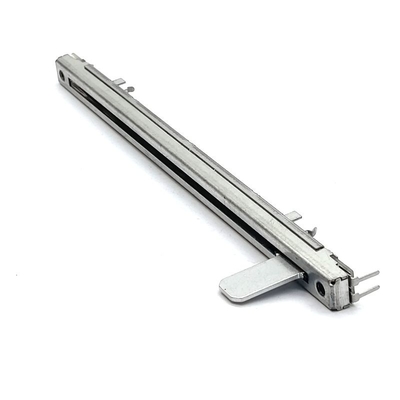

100mm travel single connected tripod with bracket slide potentiometer tuning fader for mixing table, sound card
Potentiometer Potentiometer, also known as Pot and a little more literally as a Potentiometer, is commonly known in Chinese as a Variable Resistor (VR) or simply the Variable Resistor. It is a variety of mostly three terminals, with two fixed contacts and a sliding one. Electronic components that can change the resistance value between the sliding end and the two fixed ends by sliding are passive components. When used, different partial pressure ratios can be formed to change the potential of the sliding point, hence the name.
As for rheostat, which has only two terminals (or the ones that have kept the sliding ends connected to one of the fixed ends, and have only two effective terminals), they are not called potentiometers but only variable resistors.
Common carbon film or ceramic metal film potentiometer can be through copper foil or copper sheet and printing film contact, by rotating or sliding output, input end of different resistance. The potentiometer that needs higher power is to use wire to wind type.
Potentiometer can combine to incidental other function sometimes, for example the potentiometer that certain volume controls uses is attached switch, can hold concurrently the function that makes volume and power supply switch, right now it is incidental to close power supply in the least one end of volume normally.
Specification
|
item
|
value
|
|
Model Number
|
C10042N-B10K-L15B
|
|
Type
|
Slide Potentiometer
|
|
Place of Origin
|
China
|
|
|
Guangdong
|
|
Brand Name
|
TQ
|
|
Technology
|
Carbon Film
|
|
Operating force
|
0.2~2N(20~200gf)
|
|
stopper strength
|
50N(5kgf)
|
|
bending moment
|
25mM.m(250gf.cm)
|
|
push pull strength
|
30N(3.0kgf)
|
|
lever deviation
|
0.5max.
|
|
total resistance
|
5KΩ~2MΩ
|
|
total resistance tolerance
|
±20%
|
|
resistance taper
|
A,B,C,W
|
|
sliding life
|
15,000 cycles
|
|
Model Number
|
C10042N
|
Packing & Delivery
1. Bags, blister boxes, bubble wrap, boxes, cartons
2. Each carton shall be labeled with the original label to register the items in the carton
3. Original packaging, reasonable cutting boxes to save freight
4. Invoices are available
5. Fedex, UPS, DHL online shipping
UPS: special express for North America,need 3-5 working days
DHL: normally 3-5 business days could reach your side
FEDEX: normally 3-10 business days could reach US and European or By Ocean & By Air
Service:WELCOME TO ASK ANY QUESTIONS. Any inquiry will be replied in 12 hours.
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
Dongguan TianQian Electronics Co., Ltd. established in 2008, it is specialized in design, development and production of high precision components such as Rotary Potentiometer, Sliding Potentiometer, Foot Switch, Band Switch, AC Switch, Sensor, Encoder, Tact Switch and Connectors. The products are widely used in Dimmable Lighting, Audio Mixer, Home Appliances, Automobile, Multimedia, Audio Equipments, Instrument, Toys, Aviation Model and Communication Equipments. We have an area of 3,000 square meters of factory building. Our R&D team members have more than 20 years experience in the component industry. In order to meet the high quality demand from worldwide customers, we widely use automated production lines which can output more than 80% of annual production capacity. It takes pride in the achievement that we have been the key supplier of JVC, Brother, IKEA, Midea, Microsoft, Honeywell, Sennheiser, Primax and GGEC...etc. With the consistent enterprise principles "Striving Excellence" & "Quality Assurance", we hope both parties can establish a mutual benefit relationship and create a win-win situation.
Certifications & Exhibition
Application
Potentiometer is often used for audio control, tuning, dimming, speed regulation, temperature regulation, fog regulation. For example: mixing desk, guitar effects, stereo, headphones, walkie-talkie, radio, amplifier, audio amplifier, mechanical equipment, punch, recorder, sewing machine, medical equipment, microphone and so on.
Products are widely used in: Internet of things,aviation model, OA transaction machine, computer perimeter,electronic toys,game, car image, power tools, intercom, household appliances, home theater, adjustable lighting and medical equipment,instruments and other fields
Workshop
We have a large enough production workshop, including manual workshop and fully automated workshop, manual is responsible for all product testing, machine is responsible for rapid production, at least 50,000 products a day
FAQ
Q: what is your MOQ for this item?
A: MOQ is 1000, but always flexible.
Q: Can I get some samples?
A: Sure, Sample order is available.
Q: what about lead time?
A: 7-10 days after deposit received.
Q: terms of payment?
A: Trade Assurance, T/T, credit card, western union, cash, Money Gram, Paypal
Q: My item was damaged in shipping?
A: Our parts are carefully packaged to prevent damage in shipping. If there is any damage, we will send you a new one
