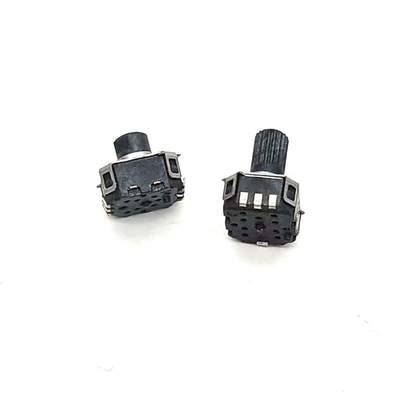

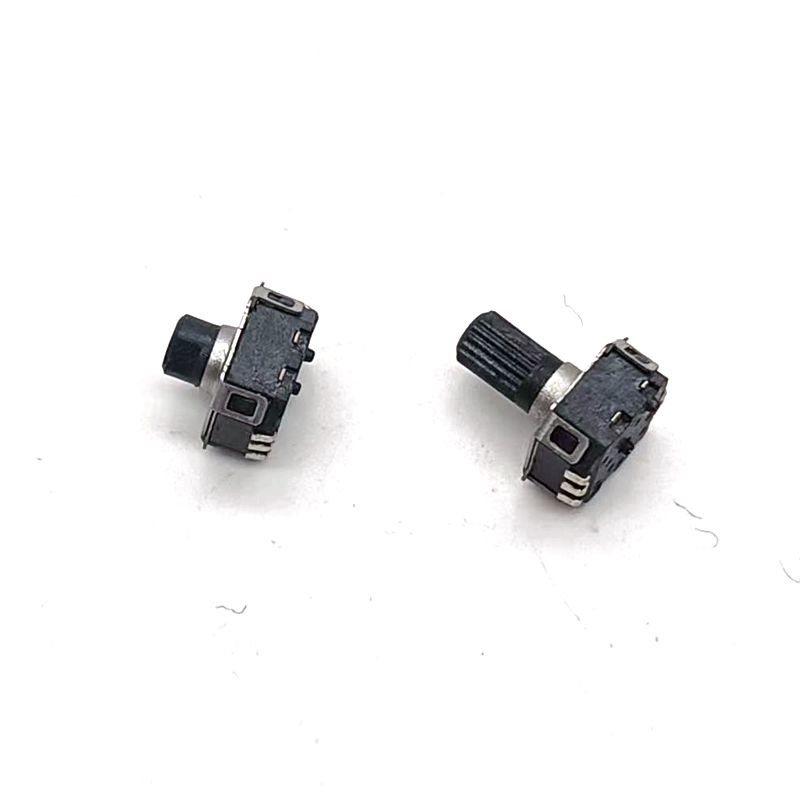

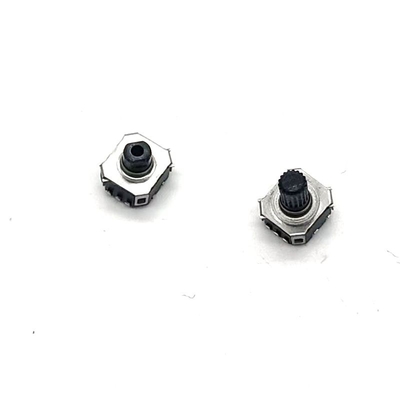

Product Details:
|
| Material: | Plastic | Model Number: | E06 |
|---|---|---|---|
| Max. Current: | 5mA | Product Name: | 6mm Encoder |
| Type: | Incremental | Application: | Auto,speaker Audio |
| Hollow Shaft Diameter: | 6mm | Pulse Number: | 6 |
| Number Of Clicks: | 12 | Total Rotational Angle: | 360 Degree |
| Rotational Torque: | 10~40gf.cm | Operational Temperature: | -30°C To 80°C |
| Rating Power: | DC5V 0.5mA | Insulation Resistance: | 50MΩ 1 Minute At DC250V |
| Rotational Life: | 30000 Times Min | Switch Circuit And Number Of Pulse: | Single Pole And Single Throw (push On) |
| Operating Force Of Switch: | 250±100gf | Rated Capacity: | DC 5V 10mA |
| Contact Resistance: | 100mΩ Max | Push Operating Life: | 20,000 Times |
| High Light: | 6mm Rotary Encoder With Push Button,Rotary Encoder With Push Button 50ohm,50ohm Encoder Ec12 |
||
Specification
|
item
|
value
|
|
Certification
|
CE ISO
|
|
Whether the smart
|
NO
|
|
Place of Origin
|
China
|
|
|
Guangdong
|
|
Brand Name
|
TQ
|
|
Model Number
|
EC06
|
|
Max. Current
|
5mA
|
|
Type
|
Incremental
|
|
Application
|
auto,speaker audio
|
|
Pulse number
|
6
|
|
Number of clicks
|
12
|
|
Total rotational angle
|
360 degree
|
|
Rotational torque
|
50~200gf.cm
|
|
Operational temperature
|
-30℃~80℃
|
|
Dielectric Voltage
|
1 minute at AC 110V
|
|
Insulation resistance
|
10mΩ 1Minute at DC 110V
|
|
Rotational life
|
50,000 times Min
|
Company Profile
Dongguan TianQian Electronics Co., Ltd. established in 2008, it is specialized in design, development and production of high precision components such as Rotary Potentiometer, Sliding Potentiometer, Foot Switch, Band Switch, AC Switch, Sensor, Encoder, Tact Switch and Connectors. The products are widely used in Dimmable Lighting, Audio Mixer, Home Appliances, Automobile, Multimedia, Audio Equipments, Instrument, Toys, Aviation Model and Communication Equipments. We have an area of 3,000 square meters of factory building. Our R&D team members have more than 20 years experience in the component industry. In order to meet the high quality demand from worldwide customers, we widely use automated production lines which can output more than 80% of annual production capacity. It takes pride in the achievement that we have been the key supplier of JVC, Brother, IKEA, Midea, Microsoft, Honeywell, Sennheiser, Primax and GGEC...etc. With the consistent enterprise principles "Striving Excellence" & "Quality Assurance", we hope both parties can establish a mutual benefit relationship and create a win-win situation.
Application
Products are widely used in: Internet of things,aviation model, OA transaction machine, computer perimeter,electronic toys,game, car image, power tools, intercom, household appliances, home theater, adjustable lighting and medical equipment,instruments and other fields
Provide solutions for electronic switch components in the automotive industry. The products have been approved by the International Automotive Working Group and have been assessed by the world's leading certification body to obtain IATF16949 management certification
FAQ
1. who are we?
We are based in Guangdong, China, start from 2013,sell to North America(15.00%),Western Europe(10.00%),Central America(10.00%),Eastern Europe(10.00%),South America(10.00%),Oceania(5.00%),Eastern Asia(5.00%),Northern Europe(5.00%),Southern Europe(5.00%),Africa(5.00%),Southeast Asia(5.00%). There are total about 301-500 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
potentiometer,encoder,switch,Foot Switch,Rotary Switch
4. why should you buy from us not from other suppliers?
Our R&D team have more than 20 years experience in the component industry.Our customers through all over the world,such as Brother,IKEA,Microsoft,Honeywell etc. The products widely used in aviation model,communication equipment, adjustable lighting.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,L/C,
