Product Details:
|
| Model Number: | R1610N | Type: | Rotary Potentiometer |
|---|---|---|---|
| Technology: | Carbon Film | Resistance: | B100k |
| Resistance Tolerance: | 10%-20% | Rated Power: | 0.125W |
| Tolerance: | ±20% | Termination: | B1 |
| Temperature Coefficient: | -20--+70 | Rotation: | 300°±5° |
| Resistive Material: | Carbon | Termination Style: | Solder Lug |
| Actuator Type: | Slotted | Actuator Diameter: | Standard |
| Bushing Thread: | M7 X 0.75 | Shaft Size: | Not Applicable |
| Number Of Turns:: | 15000 | Description: | Shaft Rotary Potentiometer |
| Key Words: | B500k Potentiometer Rotary | Certification: | CE |
| Rotational Life: | 15000 | Max. Operating Voltage: | 200V AC |
| Cross Reference: | 16mm Rotary Potentiometer | ||
| High Light: | Carbon Film Rotary Potentiometer 16mm,16mm 500k Reverse Log Potentiometer,16mm alpha 500k pots |
||

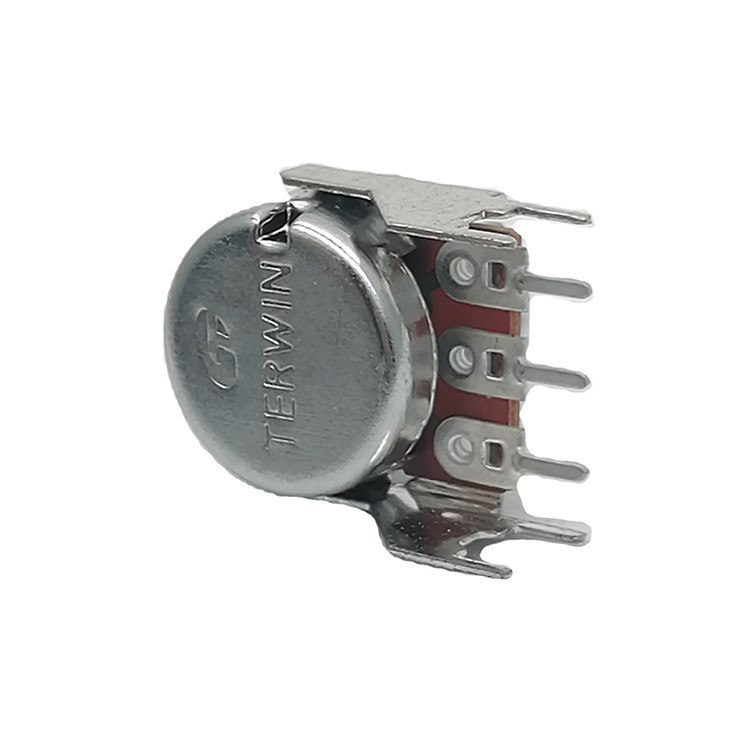

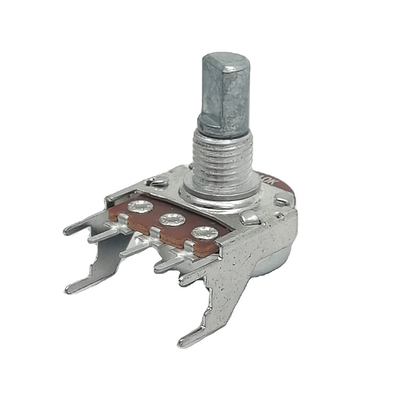

Carbon Film Resistence Controller 16mm Rotary Trimmer Potentiometer
Product feature
Used For Remote Control , equipemnt , devices Made In China Rotary Potentiometer/ encoder / tact switch / trimmer potentiometer / slide potentiometer with Competitive price and Best Quality
Product Description
(1)potentiometer
Electronics china are leading potentiometer supplier in china.we are
specializing in producing and developing potentiometers,Slide potentiometers
Encoders,Switchs for many years.With competive price and high quality.
(2)Rotary potentiometer
potentiometer specification:
1.Metal shaft style
2.Carbon element.
3.Wide range of resistance tapers
4.Asorted pin layout
4.Defetive rate≤1‰; Rotation(sliding) life ≥10,000 cycles
(3)Electronics characteristics:
Total Resistance:Single Unit:500Ω-1MΩ;
Total Resistance tolerance:+/-20% more than 1mΩ : +/-30%;
Resistance Taper: A.B.C
Max.Operating Voltage:Linear Taper B:AC500V ;Other Tapers:AC 250V ;
Rated Power:Linear Taper B:0.5W ;Other Tapers:0.25W ;
Sliding noise: less than 100mV
Insultated Resistance: More than 10OMΩ at DC 500V)
Withstand Voltage:1 min at AC 500V ;
Residual Resistance: Term.1~2:less than 10 Ω ;Term.2~3: less than 10Ω
Rotational Angle: 270° -300°
Spectifictaion
|
Company Introduction
Dongguan TianQian Electronics Co., Ltd.established in 2013,it is specialized in design, development and production of high precision components such as Rotary Potentiometer, Sliding Potentiometer, Foot Switch, Band Switch, AC Switch, Sensor, Encoder, Tact Switch and Connectors. The products are widely used in Dimmable Lighting, Audio Mixer, Home Appliances, Automobile, Multimedia, Audio Equipments, Instrument, Toys, Aviation Model and Communication Equipments. We have an area of 3,000 square meters of factory building. Our R&D team members have more than 20 years experience in the component industry. In order to meet the high quality demand from worldwide customers, we widely use automated production lines which can output more than 80% of annual production capacity. It takes pride in the achievement that we have been the key supplier of JVC, Brother, IKEA, Midea, Microsoft, Honeywell, Sennheiser, Primax and GGEC...etc. With the consistent enterprise principles "Striving Excellence" & "Quality Assurance", we hope both parties can establish a mutual benefit relationship and create a win-win situation.
Applicaiton
We have a full range of special potentiometers, encoders and switches ,which are widely used for mixers,instruments, effects, car audio,air condition, lithgting control and household appliances contral panels ,all products are welcome customized.
FAQ
1.Where are linear potentiometers used?
Linear potentiometers have many uses in industries including,
Test/ lab applications.
Mobile vehicle.
Medical.
Agricultural machinery.
Industrial processing.
Robotics.
Industrial machinery.
Motorsport.
2.How are potentiometers rated?
The rating or “resistive” value of a potentiometer or variable resistor relates to the resistive value of the entire stationary resistance track from one fixed terminal to the other. So a potentiometer with a rating of 1kΩ will have a resistive track equal to the value of a 1kΩ fixed resistor.
3.What are the advantages of potentiometer?
Potentiometer works on zero deflection method so the possibility of error is very small. It is a highly sensitive device, therefore can measure small emfs. A standard cell can be used to standardise a potentiometer.
