Product Details:
|
| Model Number: | R1610N-AA7-B10K Double Section | Type: | Rotary Potentiometer |
|---|---|---|---|
| D/C: | NEW | Technology: | Carbon Film |
| Resistance Tolerance: | 10%-20% | Resistance: | B10k |
| Rated Power: | 0.125W | Max. Operating Voltage: | 200V AC |
| Operating Temperature: | -20--+70 | Brand: | R1610N-AA7-B10K |
| Packaging: | STANDARD | Power (Watts): | 0.125W |
| Tolerance: | ±10% | Adjustment Type: | Top Finger Adjustment, Top Adjustment |
| Termination: | PC Pin | Package / Case: | Plastic |
| Built In Switch: | Push-Pull, DPDT, With Detent | Rotation: | 300° |
| Resistive Material: | Carbon | Actuator Type: | Slotted |
| Highlight: | Vertical 5k Audio Taper Potentiometer,16mm Double Gang Potentiometer,16mm 5k ohm potentiometer |
||

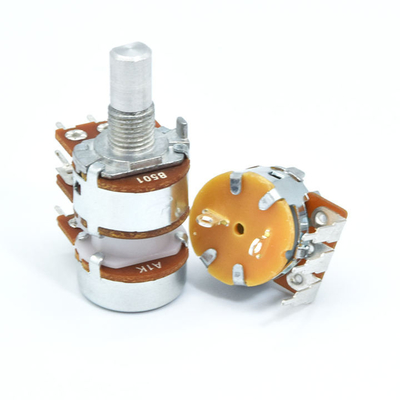

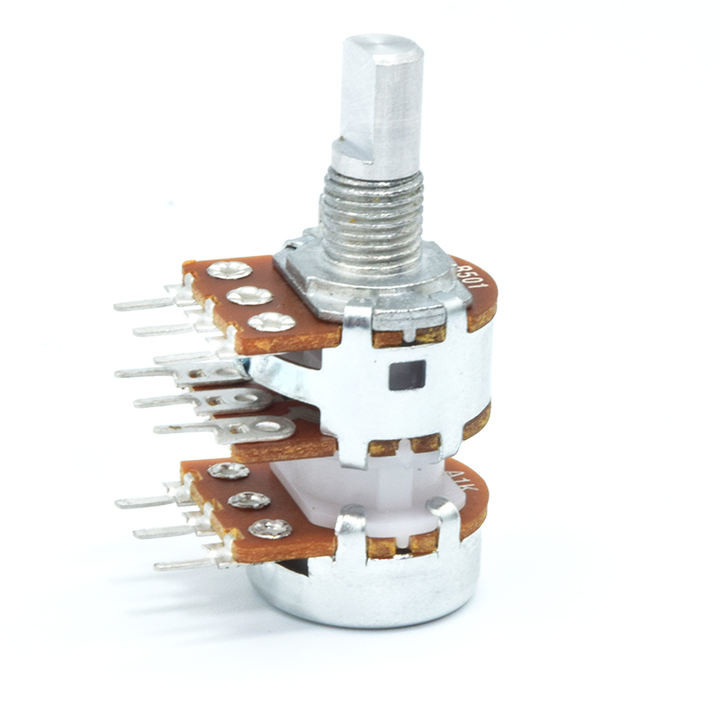

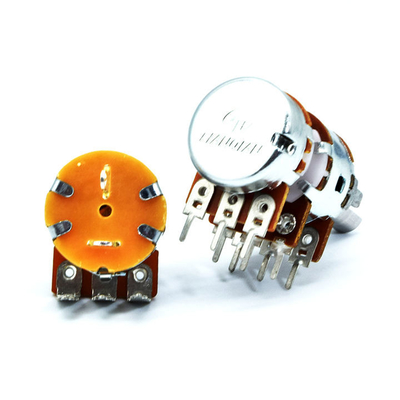

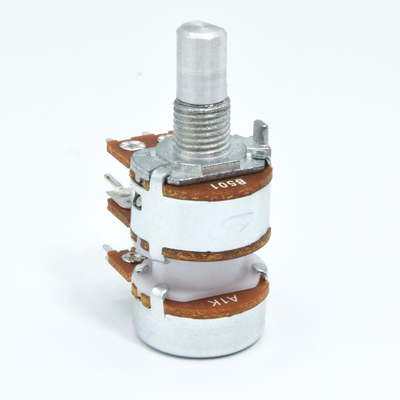

R1610 Double Section Vertical Volume Controller 16mm B5k Trimmer Potentiometer
Product Features
Rotary Potentiometer R1610G-_D1-
1. Resistance Range: 5K-500K;
2. Tolerance: +/-20%, more than 1mΩ : +/-30%;
3. Taper: A, B, C;
4. Shaft Type: KQ, F, S
5. Temperature Range: -20° C to +50° C
6. Voltage: 50V-250V/AC
7. Rotational Angle: 270° -300°
Packing
100PCS/Bag, 800PCS/Box, 4800PCS/Carton
Dimension of Carton: 47cm*35cm*40cm
|
Company Introduction
Dongguan TianQian Electronics Co., Ltd.established in 2013,it is specialized in design, development and production of high precision components such as Rotary Potentiometer, Sliding Potentiometer, Foot Switch, Band Switch, AC Switch, Sensor, Encoder, Tact Switch and Connectors. The products are widely used in Dimmable Lighting, Audio Mixer, Home Appliances, Automobile, Multimedia, Audio Equipments, Instrument, Toys, Aviation Model and Communication Equipments.
Applicaiton
We have a full range of special potentiometers, encoders and switches ,which are widely used for mixers,instruments, effects, car audio,air condition, lithgting control and household appliances contral panels ,all products are welcome customized.
FAQ
1. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
2.what can you buy from us?
potentiometer,encoder,switch,Foot Switch,Rotary Switch
