Product Details:
|
| Function: | Rotary Encoder | Rotary Encoder: | EC1102 |
|---|---|---|---|
| Max. Current: | 5mA | Product Name: | 11mm Encoder With Collar |
| Type: | Incremental | Application: | Auto,speaker Audio |
| Hollow Shaft Diameter: | 11mm | Pulse Number: | 15/20 |
| Number Of Clicks: | 30/20 | Total Rotational Angle: | 360 Degree |
| Rotational Torque: | 30-200gf.cm | Operational Temperature: | '-10°C To 70°C |
| Rating Power: | DC5V 0.5mA | Insulation Resistance: | 10MΩ 1 Minute At DC50V |
| Dieelectric Voltage: | 1 Minute At AC50V | Rotational Life: | 30000 Times Min |
| Switch Circuit And Number Of Pulse: | Single Pole And Single Throw Push On | Travel Of Switch: | 0.5±0.2mm |
| Operating Force Of Switch: | 450±200gf | Rated Capacity: | DC 5V 10mA |
| Contact Resistance: | 100mΩ Max | Push Operating Life: | 20,000 Times |
| Highlight: | 11mm Rotary Encoder,Rotary Encoder 20 Pulse,20 Pulse Incremental Position Encoder With Switch |
||

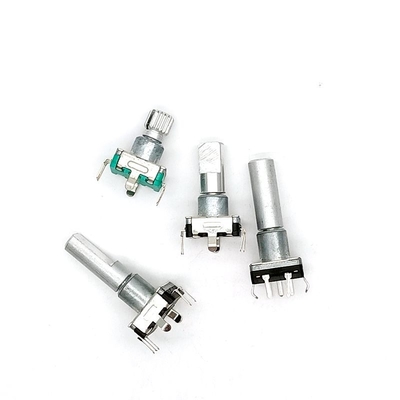

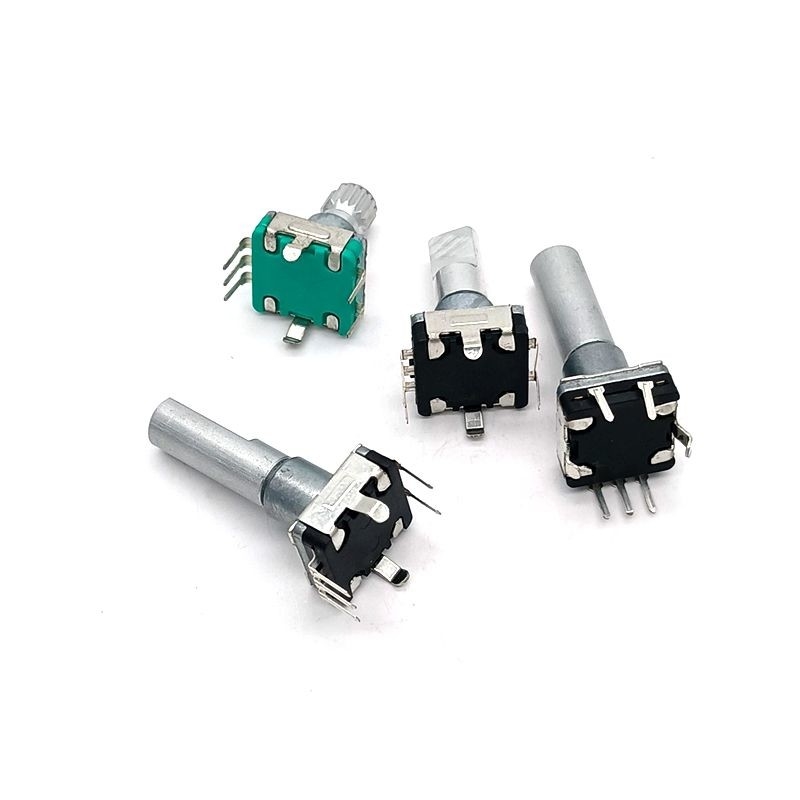

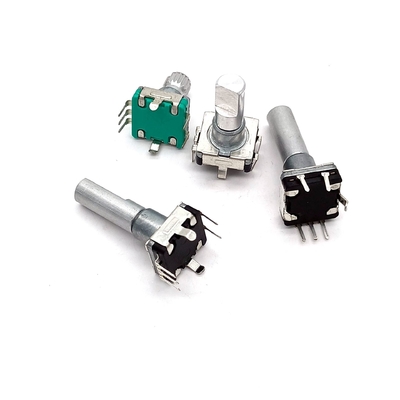

EC1102 Metal Shaft Incremental Rotary Encode For Home Small Electrics
Features
|
Dongguan TianQian Electronics Co., Ltd.established in 2013,it is specialized in design, development and production of high precision components such as Rotary Potentiometer, Sliding Potentiometer, Foot Switch, Band Switch, AC Switch, Sensor, Encoder, Tact Switch and Connectors. The products are widely used in Dimmable Lighting, Audio Mixer, Home Appliances, Automobile, Multimedia, Audio Equipments, Instrument, Toys, Aviation Model and Communication Equipments. We have an area of above 3,000 square meters of factory building. Our R&D team members have more than 20 years experience in the component industry. In order to meet the high quality demand from worldwide customers, we widely use automated production lines which can output more than 80% of annual production capacity. It takes pride in the achievement that we have been the key supplier of JVC, Brother, , Midea, Microsoft, Honeywell, Sennheiser, Primax and GGEC...etc. With the consistent enterprise principles "Striving Excellence" & "Quality Assurance", we hope both parties can establish a mutual benefit relationship and create a win-win situation.
