Product Details:
|
| Total Resistance: | 5KΩ~2MΩ | Total Resistance Tolerance: | ±20% More Than 1 MΩ±30% |
|---|---|---|---|
| Resistance Taper: | A.B.C | Insulation Resistance: | 100MΩ Min.at 250V DC |
| Withstand Voltage: | AC300V(1 Minute) | Operating Force: | 0.3~2.5N(30~250gf) |
| Push Pull Strength: | 50N(5kgf) | Click Slip-out Force: | 0.2~2N(20~200gf) |
| Lever Deviation: | 0.5 Max.(one Side) | Sliding Life: | 15000cycles |
| Application: | Mixing Desk, Sound Card Tuning Speed Regulation And Dimming | ||
| High Light: | 30mm Travel Fader B10k,Fader B10k 100ohm,100ohm 45mm Slide Potentiometer |
||

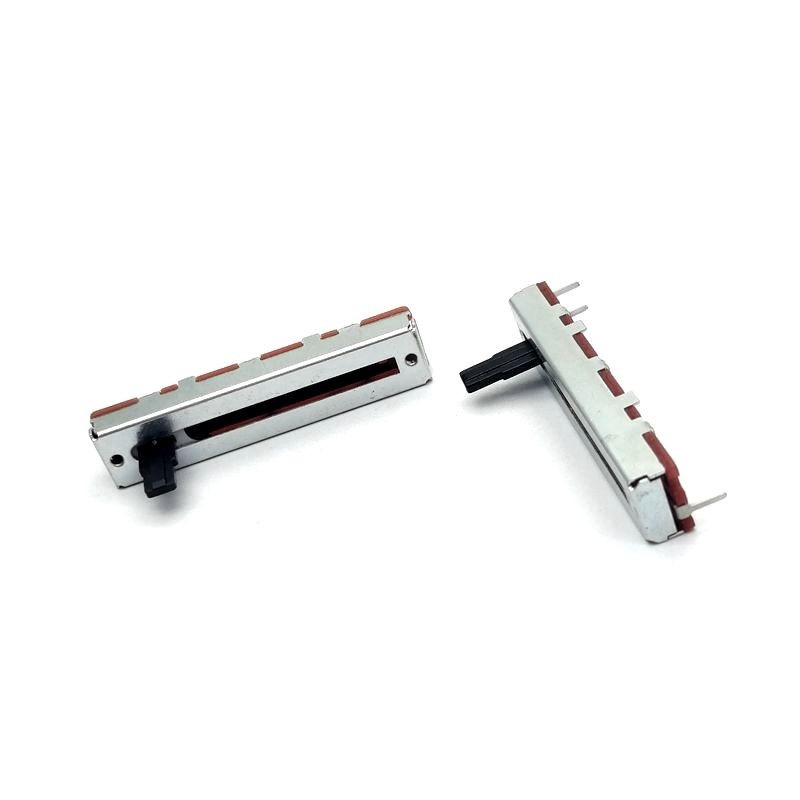

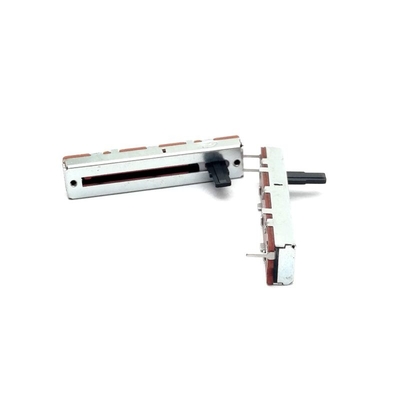

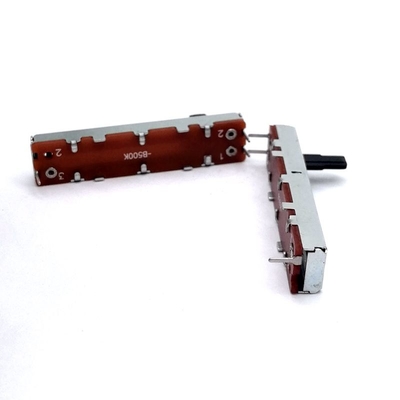

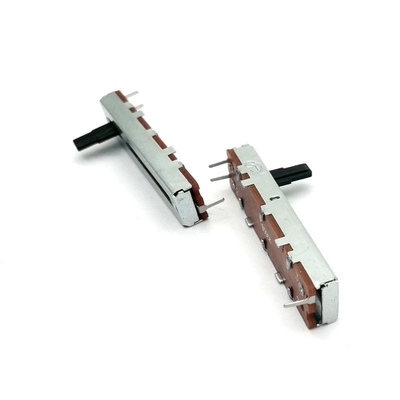

C3031S Style 30mm Travel 45mm Length 3pin Plastic Handle With Switch Slide Potentiometer
Product Features
Specification
Company Introduction
Dongguan TianQian Electronics Co., Ltd.established in 2013,it is specialized in design, development and production of high precision components such as Rotary Potentiometer, Sliding Potentiometer, Foot Switch, Band Switch, AC Switch, Sensor, Encoder, Tact Switch and Connectors.
Applicaiton
We have a full range of special potentiometers, encoders and switches ,which are widely used for mixers,instruments, effects, car audio,air condition, lithgting control and household appliances contral panels ,all products are welcome customized.
FAQ
Q1: When can I get the quotation ?
A: We are online all day, so you can get quotation within 24h.
Q2: Can I get free samples?
A: Yes, after confirming the price, we can provide 5-20 free samples.
Q3: When can I get the samples?
A: It depends on the express, generally 3-10 days.
Q4: Can you accept small order?
A: Yes, we will try our best to help you with your business.
Q5: What's the lead time of mass production?
A: Generally 2-4weeks. We will inform you the delivery time after receiving your payment.
Our advantage
* Cost Efficient manufacturer
* 100% in-house production facilities
* Fully customized design capabilities
* Industrial level of manufacture
* Powerful Team Work to implement customer's new project
