Product Details:
|
| Technology: | Carbon Film | Resistance: | 1kΩ/10kΩ/50kΩ/100kΩ/500kΩ |
|---|---|---|---|
| Resistance Tolerance: | ±20% | Rated Power: | 0.125w |
| Operating Temperature: | -10-70℃ | Max. Operating Voltage: | 200V AC |
| Application: | Guitar And Amplifier | ||
| Highlight: | 200V Electric Guitar Pots,Electric Guitar Pots 1000ohm,1000ohm Guitar Potentiometer 500K |
||

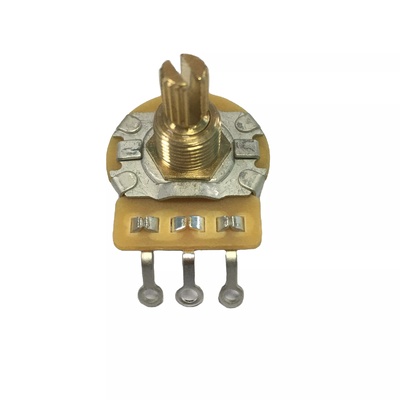

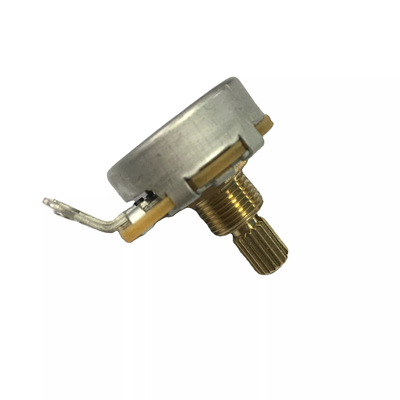

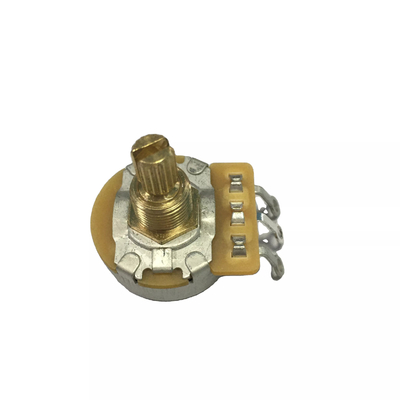

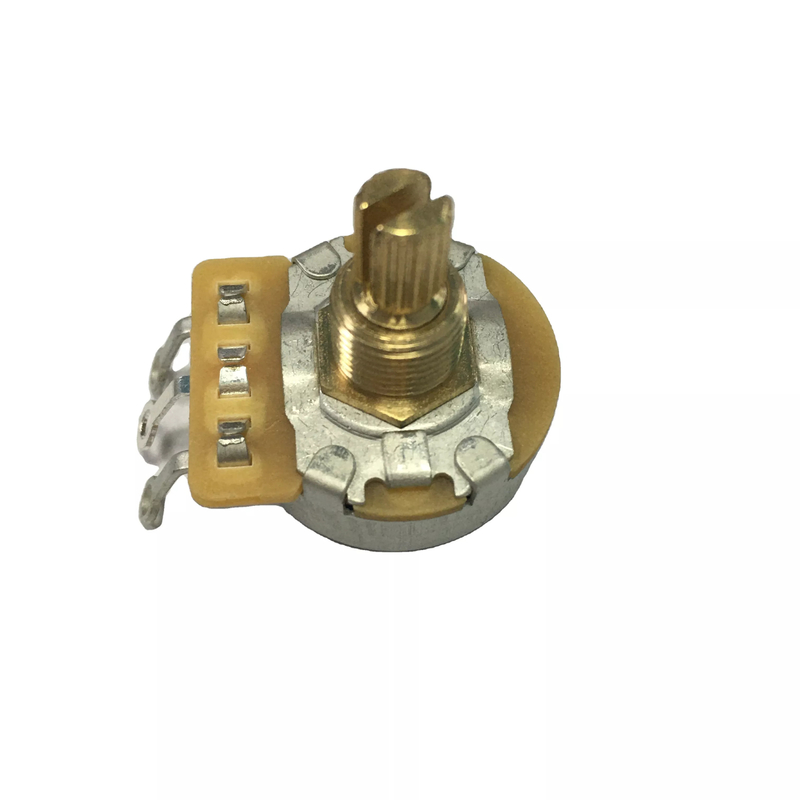

Superior Cts Rotary Guitar Potentiometer For Electric Guitar And Amplifier
Rotary Potentiometer (R24)
1. Product Description
(1)potentiometer
Electorinics china are leading potentiometer supplier in china. We are
Specializing in producing and developing potentiometers, Slide potentiometers
Encoders, Switchs for many years. With competive price and high quality
(2)Rotary potentiometer (R24 )
Potentiometer specification:
1. Metal shaft style
2. Carbon element.
3. Wide range of resistance tapers
4. Asorted pin layout
4. Defetive rate≤ 1‰ ; Rotation(sliding) life ≥ 10, 000 cycles
(3)Electronics characteristics:
Total Resistance: Single Unit: 500Ω -1MΩ ;
Total Resistance tolerance: +/-20% more than 1mΩ : +/-30%;
Resistance Taper: A. B. C
Max. Operating Voltage: Linear Taper B: AC500V; Other Tapers: AC 250V;
Rated Power: Linear Taper B: 0.5W; Other Tapers: 0.25W;
Sliding noise: Less than 100mV
Insultated Resistance: More than 10OMΩ At DC 500V)
Withstand Voltage: 1 min at AC 500V;
Residual Resistance: Term. 1~2: Less than 10 Ω ; Term. 2~3: Less than 10Ω
Rotational Angle: 270° -300°
Product Description
|
Model Number
|
RV2410N-19B1-B500K
|
|
Type
|
Rotary Potentiometer
|
|
Place of Origin
|
China
|
|
|
Guangdong
|
|
Brand Name
|
TQ
|
|
D/C
|
-
|
|
Technology
|
Carbon Film
|
|
Resistance
|
1kΩ/10kΩ/50kΩ/100kΩ/500kΩ
|
|
Resistance Tolerance
|
±20%
|
|
Rated Power
|
0.125w
|
|
Max. Operating Voltage
|
200V AC
|
|
Operating Temperature
|
-10-70℃
|
|
Brand
|
TQ
|
|
Packaging
|
-
|
|
Power (Watts)
|
standard
|
|
Tolerance
|
±20%
|
|
Adjustment Type
|
Top Finger Adjustment
|
|
Diameter
|
24mm
|
|
Length
|
-
|
|
Mounting Type
|
standard
|
|
Termination
|
solder
|
|
Package / Case
|
standard
|
|
Built in Switch
|
None
|
|
Temperature Coefficient
|
-
|
|
Rotation
|
300°
|
|
Resistive Material
|
Carbon
|
|
Termination Style
|
Solder Lug
|
|
Actuator Type
|
Round
|
|
Actuator Length
|
standred
|
|
Actuator Diameter
|
19mm
|
|
Bushing Thread
|
3/8-32
|
|
Shaft Size
|
19mm
|
|
Number of Turns
|
15000
|
|
Cross Reference
|
-
|
|
Product name
|
OEM B100k 500K split shaft CTS potentiometer for electric guitar
|
|
Description
|
cts potentiometer
|
|
Model
|
RV2410N-19B1-B500K
|
|
Delivery Time
|
14 days
|
|
Shipping By
|
DHLUPSFedexEMSChina PostHongKong Post
|
|
Insulation Resistance
|
Min:100M
|
|
Shaft Type
|
KQ Shaft
|
|
Brand
|
TQ
|
|
Rotational Torque
|
2-20mN.m
|
|
Service
|
OEM ODM Availeble
|
100PCS/Bag, 800PCS/Box, 4800PCS/Carton
Dimension of Carton: 47cm*35cm*40cm
Pls kindly note that we are an end manufacturer, we can customize the potetiometers according to your needs, please feel free to contact us. We will provide hight quality and best price to you!
Sample
1. Sample: We can provide free samples for most of items.
2. Samples time: Need 3-5 days to preparing the samples,
Except some especially items.
Quality Guarantee:
1. Strictly quality Check before leave factory
2. We have ISO9001 ROHS certificates.
Advantage
1. We are en end manufacturer
2. New design Accepted: As your requirement
3. Good Quality: Strict quality control and good reputation
5. Fast & Cheap Delivery: Big discount from express agent
(Long-term Contract with DHL, FedEx, EMS, UPS, TNT)
