Product Details:
|
| Model: | R1610 | Brand: | TQ |
|---|---|---|---|
| Packing: | OPP Bag+box | Resistance: | 5K~1M |
| Power (Watts): | 0.2W | Rotation: | 270 |
| Number Of Turns: | 15000 Cycles | Technology: | Carbon Film |
| Tolerance: | ±10% | Cross Reference: | Alpha |

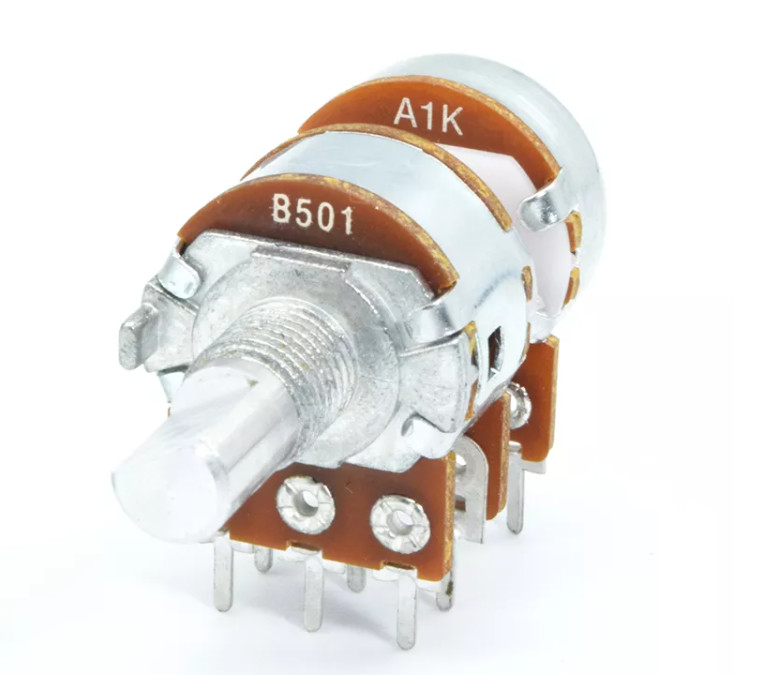

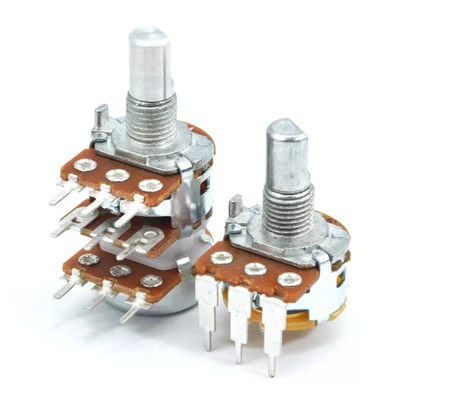

| Highlight: | 250v A10k Potentiometer 6 Pin,A10k Potentiometer 6 Pin 16mm,16mm Dual Rotary Potentiometer |
||
A potentiometer consists of a resistive element, a sliding contact (wiper) that moves along the element, makes good electrical contact with a portion of the element, electrical terminals on both ends of the element, and a means to move the wiper from one end to the other institution. And a housing that contains the filter element and wipers.
Many inexpensive potentiometers use a resistive element to make an arc, usually less than a full turn, and a tap (C) that slides over that element as it rotates to make electrical contact. Resistive elements can be flat or angled. Each end of the resistive element is connected to terminals (E, G) on the housing. The wiper is usually connected to the third terminal (F), between the other two terminals. On panel potentiometers, the wiper is usually the center terminal of three. For single-turn potentiometers, the wiper typically makes less than one revolution around the contact. The xxx entry point for contamination is the narrow space between the shaft and the axis of rotation.
Another type is the linear slider potentiometer, which has a tap that slides along the linear element without rotating. Contaminants can get anywhere along the slot the slider enters, making effective sealing more difficult and compromising long-term reliability. One advantage of the slider potentiometer is that the slider position provides a visual indication of its setting. While the setting of the rotary potentiometer can be seen by the location of the markings on the knob, the array of sliders can give the visual impression of the setting as on a graphic equalizer or fader on a mixing console.
SPECIFICATION
| ITEMS | SPECIFICATION |
| Technology | carbon film |
| Resistance | 5KΩ~10MΩ |
| Total rotational angle | 300°±5° |
| Rotational torque | 20~200gf.cm |
| Rotation stopper strength | 7kgf.cm |
| Push pull strength | 7kgf |
| total resistance | 5kΩ~2MΩ |
| Total resistance tolerance | ±20% |
| rated power | 0.2w |
| Resistance taper | A,B |
| rotational life | 10000 cycles |
WORKSHOP&FACTORY
Cooperation partner
Company Profile
Dongguan TianQian Electronics Co., Ltd. established in 2008, it is specialized in design, development and production of high precision components such as Rotary Potentiometer, Sliding Potentiometer, Foot Switch, Band Switch, AC Switch, Sensor, Encoder, Tact Switch and Connectors. The products are widely used in Dimmable Lighting, Audio Mixer, Home Appliances, Automobile, Multimedia, Audio Equipments, Instrument, Toys, Aviation Model and Communication Equipments. We have an area of 3,000 square meters of factory building. Our R&D team members have more than 20 years experience in the component industry. In order to meet the high quality demand from worldwide customers, we widely use automated production lines which can output more than 80% of annual production capacity. It takes pride in the achievement that we have been the key supplier of JVC, Brother, , Midea, Microsoft, Honeywell, Sennheiser, Primax and GGEC...etc. With the consistent enterprise principles "Striving Excellence" & "Quality Assurance", we hope both parties can establish a mutual benefit relationship and create a win-win situation.
FAQ
1. who are we?
We are based in Guangdong, China, start from 2013,sell to North America(15.00%),Western Europe(10.00%),Central America(10.00%),Eastern Europe(10.00%),South America(10.00%),Oceania(5.00%),Eastern Asia(5.00%),Northern Europe(5.00%),Southern Europe(5.00%),Africa(5.00%),Southeast Asia(5.00%). There are total about 301-500 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
potentiometer,encoder,switch,Foot Switch,Rotary Switch
4. why should you buy from us not from other suppliers?
Our R&D team have more than 20 years experience in the component industry.Our customers through all over the world,such as Brother,,Microsoft,Honeywell etc. The products widely used in aviation model,communication equipment, adjustable lighting.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese
Contact Person: Mr. Peter Qiao
Tel: 19303909993
Fax: 86-769-83736659
