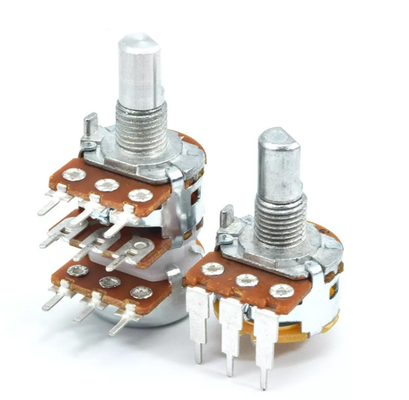

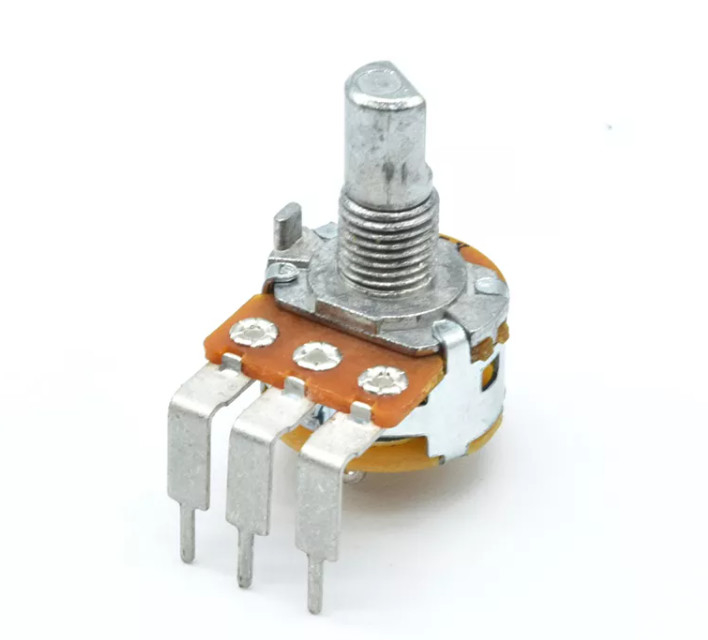

Product Details:
|
| Model: | R1610 | Brand: | TQ |
|---|---|---|---|
| Packing: | OPP Bag+box | Resistance: | 5K~1M |
| Power (Watts): | 0.2W | Rotation: | 270 |
| Number Of Turns: | 15000 Cycles | Technology: | Carbon Film |
| Tolerance: | ±10% | Cross Reference: | Alpha |
| Highlight: | ROHS Rotary Potentiometer,Potentiometer 200k Ohm For Guitar,ROHS 200k potentiometer |
||
A measuring instrument called a potentiometer is essentially a voltage divider for measuring electrical potential (voltage); this component is an implementation of the same principle, hence the name.
Potentiometers are often used to control electrical equipment, such as volume controls on audio equipment. Potentiometers operated by mechanical devices can be used as position sensors, for example in joysticks. Potentiometers are rarely used to directly control larger powers (beyond watts) because the power dissipation in a potentiometer is comparable to the power in a controlled load.
There are many terms used in the electronics industry to describe certain types of potentiometers:
Slip Can or Slip Can: A potentiometer that is usually adjusted by sliding the wiper left or right (or up and down depending on the installation) with a finger or thumb.
Thumb pot or thumbwheel pot: Small rotary potentiometer, not often adjusted by the pinky wheel.
Trim Potentiometer or Trimmer Pot: A trimmer pot is usually meant to be adjusted once or an electrical signal that is not commonly used to "trim".
SPECIFICATION
| ITEMS | SPECIFICATION |
| Technology | carbon film |
| Resistance | 5KΩ~10MΩ |
| Total rotational angle | 300°±5° |
| Rotational torque | 20~200gf.cm |
| Rotation stopper strength | 7kgf.cm |
| Push pull strength | 7kgf |
| total resistance | 5kΩ~2MΩ |
| Total resistance tolerance | ±20% |
| rated power | 0.2w |
| Resistance taper | A,B |
| rotational life | 10000 cycles |
WORKSHOP&FACTORY
Cooperation partner
Dongguan TianQian Electronics Co., Ltd. established in 2008, it is specialized in design, development and production of high precision components such as Rotary Potentiometer, Sliding Potentiometer, Foot Switch, Band Switch, AC Switch, Sensor, Encoder, Tact Switch and Connectors. The products are widely used in Dimmable Lighting, Audio Mixer, Home Appliances, Automobile, Multimedia, Audio Equipments, Instrument, Toys, Aviation Model and Communication Equipments. We have an area of 3,000 square meters of factory building. Our R&D team members have more than 20 years experience in the component industry. In order to meet the high quality demand from worldwide customers, we widely use automated production lines which can output more than 80% of annual production capacity. It takes pride in the achievement that we have been the key supplier of JVC, Brother, , Midea, Microsoft, Honeywell, Sennheiser, Primax and GGEC...etc. With the consistent enterprise principles "Striving Excellence" & "Quality Assurance", we hope both parties can establish a mutual benefit relationship and create a win-win situation.
1. who are we?
We are based in Guangdong, China, start from 2013,sell to North America(15.00%),Western Europe(10.00%),Central America(10.00%),Eastern Europe(10.00%),South America(10.00%),Oceania(5.00%),Eastern Asia(5.00%),Northern Europe(5.00%),Southern Europe(5.00%),Africa(5.00%),Southeast Asia(5.00%). There are total about 301-500 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
potentiometer,encoder,switch,Foot Switch,Rotary Switch
4. why should you buy from us not from other suppliers?
Our R&D team have more than 20 years experience in the component industry.Our customers through all over the world,such as Brother,,Microsoft,Honeywell etc. The products widely used in aviation model,communication equipment, adjustable lighting.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese
