Product Details:
|
| Function: | Rotary Encoder | Rotary Encoder: | EC16 |
|---|---|---|---|
| Max. Current: | 5mA | Product Name: | 16mm Encoder |
| Type: | Incremental | Application: | Auto,speaker Audio |
| Hollow Shaft Diameter: | 12mm | Pulse Number: | 12/24 |
| Number Of Clicks: | 12/24 | Total Rotational Angle: | 360 Degree |
| Rotational Torque: | 30-200gf.cm | Operational Temperature: | '-20°C To 80°C |
| Rating Power: | DC5V 0.5mA | Insulation Resistance: | 100MΩ 1 Minute At DC250V |
| Dieelectric Voltage: | 1 Minute At AC300v | Rotational Life: | 30000 Times Min |
| Switch Circuit And Number Of Pulse: | Single Pole And Single Throw Push On | Travel Of Switch: | 0.4±0.2mm |
| Operating Force Of Switch: | 500±200gf | Rated Capacity: | DC 5V 10mA |
| Contact Resistance: | 100mΩ Max | Push Operating Life: | 20,000 Times |
| High Light: | EC16 Dual Axis Rotary Encoder,Rotary Encoder With Push Switch Cyt1100,Dual Axis Rotary Encoder Cyt1100 |
||

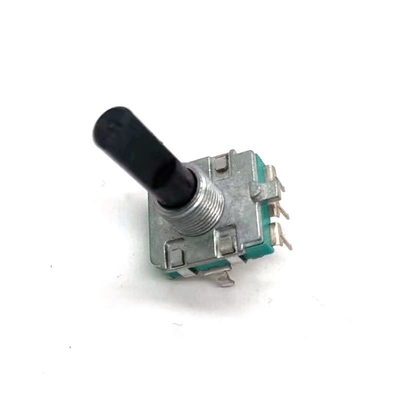

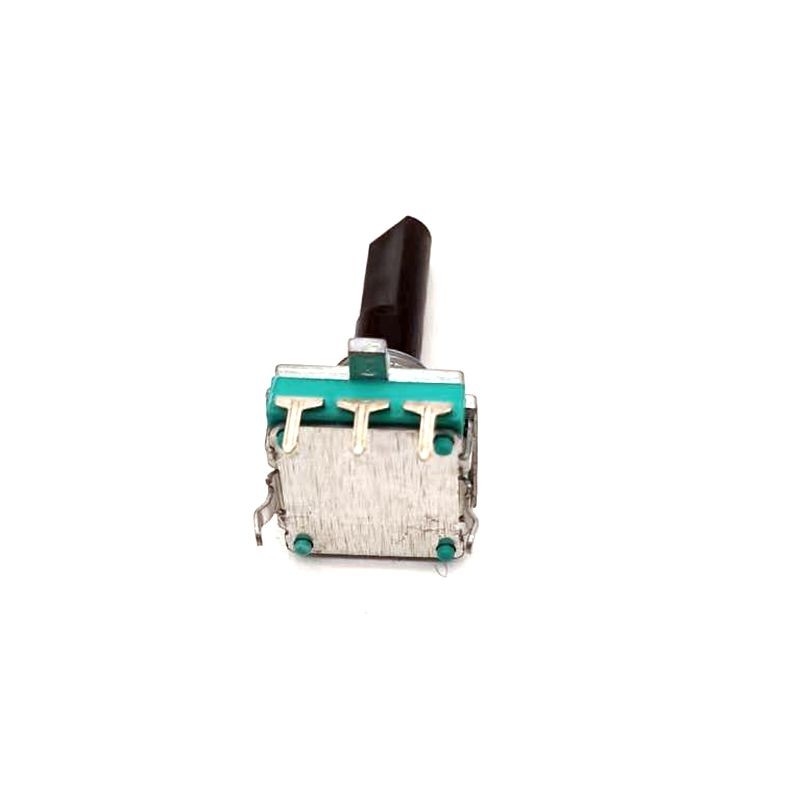

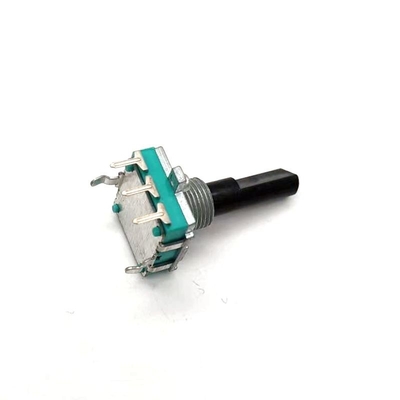

EC16 Encoder With Switch , Black And Green Plastic Shaft Encoder For Home Application
|
item
|
value
|
|
Model Number
|
EC16 with switch
|
|
Type
|
SWITCH ENCODER
|
|
Place of Origin
|
China
|
|
|
Guangdong
|
|
Brand Name
|
TQ
|
|
Usage
|
|
|
Pulse number
|
12/24
|
|
Total rotational angle
|
360 degree
|
|
Rotational Torque
|
30-200gf.cm
|
|
Operational temperature
|
-20℃~80℃
|
|
Rating power
|
DC5V 0.5mA
|
|
Insulation resistance
|
100mΩ 1 minute at DC250V
|
|
Dieelectric voltage
|
1 minute at AC300V
|
|
Rotational life
|
30000 times Min
|
|
Travel of switch
|
0.4±0.2mm
|
|
Contact resistance
|
100mΩ Max
|
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Encoder is a sensor that outputs physical quantity information such as Angle, length and speed by digital quantity 0 and 1 encoding. Because of its high precision, large range measurement, fast response and digital output characteristics; Small size, light weight, compact structure, easy installation, simple maintenance, reliable work and other excellent characteristics, so become today's industrial control system is favored and an indispensable part.
Company Profile
Dongguan TianQian Electronics Co., Ltd. established in 2008, it is specialized in design, development and production of high precision components such as Rotary Potentiometer, Sliding Potentiometer, Foot Switch, Band Switch, AC Switch, Sensor, Encoder, Tact Switch and Connectors. The products are widely used in Dimmable Lighting, Audio Mixer, Home Appliances, Automobile, Multimedia, Audio Equipments, Instrument, Toys, Aviation Model and Communication Equipments. We have an area of 3,000 square meters of factory building. Our R&D team members have more than 20 years experience in the component industry. In order to meet the high quality demand from worldwide customers, we widely use automated production lines which can output more than 80% of annual production capacity. It takes pride in the achievement that we have been the key supplier of JVC, Brother, IKEA, Midea, Microsoft, Honeywell, Sennheiser, Primax and GGEC...etc. With the consistent enterprise principles "Striving Excellence" & "Quality Assurance", we hope both parties can establish a mutual benefit relationship and create a win-win situation.
Application
Products are widely used in: Internet of things,aviation model, OA transaction machine, computer perimeter,electronic toys,game, car image, power tools, intercom, household appliances, home theater, adjustable lighting and medical equipment,instruments and other fields.
FAQ
A: Please tell us the requirement of product you need, we will provide drawing and quotation of the part related.
A: We have the strict quality control system, and all goods must be 100% inspected before shipment.
A: Sure, we will provide free sample for your testing if need, but shipping cost shall be borne by customer.
A: Yes, We accept Trade Assurance Online order by Alibaba.
A: Lead time is 7-10 days normally, we will confirm the lead time before receiving your order.
