Product Details:
|
| Model: | SM100N-DF2 | Sliding Travel: | 100mm |
|---|---|---|---|
| Resistance: | 1K, 2 K, 5K, 10K , 20K Ohm, 10K | Resistance Tolerance: | ±20% |
| Rated Power: | 0.5W | Max. Operating Voltage: | DC 10V AC 200V |
| Operating Temperature: | -10℃~60℃ | Power (Watts): | 0.5w |
| Tolerance: | ±20% | Adjustment Type: | Slide |
| Diameter: | 100 | Mounting Type: | DIP |
| Package / Case: | Metal | Temperature Coefficient: | ±150ppm/°C |
| Termination Style: | PC Pins | Actuator Type: | Motor |
| Actuator Length: | 100±0.5mm | Actuator Diameter: | 17.2mm |
| Scope: | SM Type | Nominal Total Resistance And Tolerance: | 10kΩ±20% |
| Power Rating: | B Taper:0.5w Other Typer:0.25w | Rated Voltage: | DC10V AC 200V |
| Residual Resistance: | 500Ω Max | Slide Noise: | 68mVp-p Less Than |
| Insulation Resistance: | 100MΩ Or More | Dielectric Strength: | Without Arcing Or Breakdown |
| Conductive Resistance: | 1K Ohm | ||
| Highlight: | Motorised Potentiometer 8MMT,100MM CE Motorised Potentiometer,10k Slide Potentiometer |
||

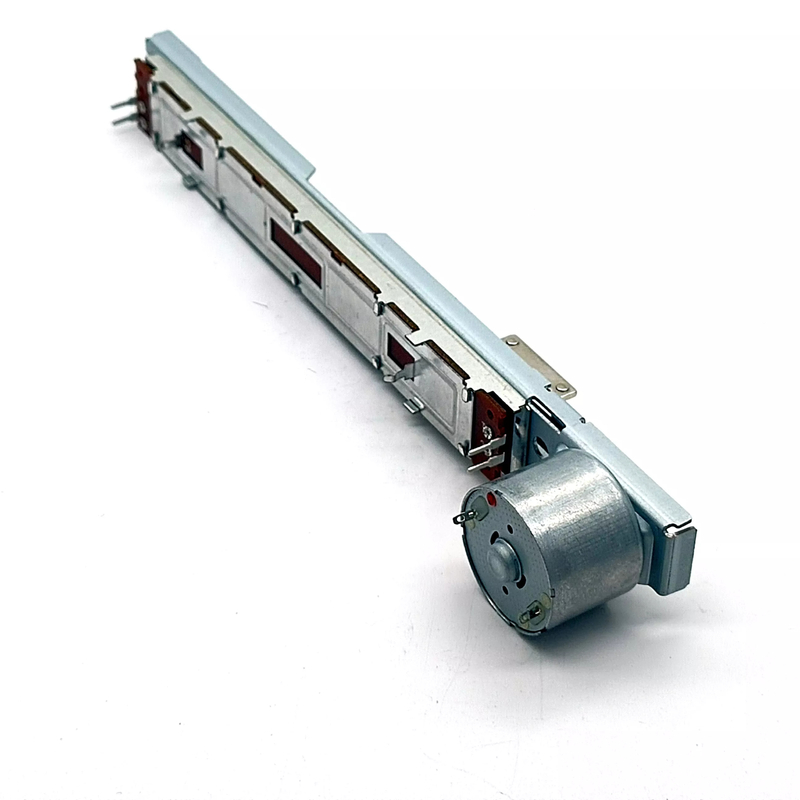

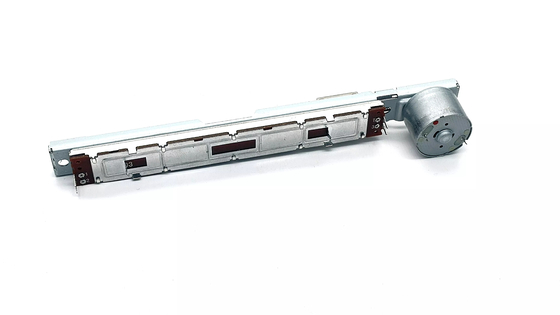

Slide potentiometer circular motor drive stroke 100MM B10K 8MMT type shaft for mixer sound card
specification
|
Company Introduction
Dongguan TianQian Electronics Co., Ltd.established in 2013,it is specialized in design, development and production of high precision components such as Rotary Potentiometer, Sliding Potentiometer, Foot Switch, Band Switch, AC Switch, Sensor, Encoder, Tact Switch and Connectors. The products are widely used in Dimmable Lighting, Audio Mixer, Home Appliances, Automobile, Multimedia, Audio Equipments, Instrument, Toys, Aviation Model and Communication Equipments.
Applicaiton
We have a full range of special potentiometers, encoders and switches ,which are widely used for mixers,instruments, effects, car audio,air condition, lithgting control and household appliances contral panels ,all products are welcome customized.
FAQ
Q1: When can I get the quotation ?
A: We are online all day, so you can get quotation within 24h.
Q2: Can I get free samples?
A: Yes, after confirming the price, we can provide 5-20 free samples.
Q3: When can I get the samples?
A: It depends on the express, generally 3-10 days.
Q4: Can you accept small order?
A: Yes, we will try our best to help you with your business.
Q5: What's the lead time of mass production?
A: Generally 2-4weeks. We will inform you the delivery time after receiving your payment.
Our advantage
From the purchase of raw materials to the finished product, all production process
(product development/plating/mold and equipment processing/ metalpressing/ plasticinjection/semi-automatic and fully automated equipment assembly, etc.)are completed in the factory. Our metal pressing and plastic injection own the advantages of 100% self-made mold, from a single form to the various forms of application.
And we continuously keep innovation and enhance the technology in order to collaborate with our customers to design the most sophisticated products.whether in production base or in quality assurance department in the head office, have professional equipment and technical personnel.
In addition to the annual new product development, product improvement and testing are performed as annual plan to ensure that listed products maintain in best quality.Therefore, our long-term customers/partners, get the best quality of the switches.
