Product Details:
|
| Model Name: | R0610N | Type: | Rotary Potentiometer |
|---|---|---|---|
| D/C: | NEW | Technology: | Carbon Film |
| Resistance Tolerance: | 10%-20% | Resistance: | 1K ~ 1M Ω |
| Rated Power: | 0.2W | Max. Operating Voltage: | AC200V / DC50V |
| Operating Temperature: | -10℃ ~ +70℃ | Brand: | Rotary Potentiometer With Pull Push Switch |
| Packaging: | STANDARD | Power (Watts): | 0.2W |
| Tolerance: | ±10% | Adjustment Type: | Mount On PCB |
| Termination: | PC Pin | Package / Case: | Plastic |
| Built In Switch: | Push-Pull, DPDT, With Detent | Rotation: | 300° |
| Resistive Material: | Carbon | Actuator Type: | Slotted |
| Highlight: | 6mm Digital Dail Rotary Potentiometer,Digital Dail Rotary Potentiometer,R0610N subwoofer potentiometer |
||
6mm Digital Dail Rotary Potentiometer For Hearing Aid
Product Features
Type:Rotary Potentiometer
Name:R0610N
Potentiometer works on zero deflection method so the possibility of error is very small. It is a highly sensitive device, therefore can measure small emfs. A standard cell can be used to standardise a potentiometer.
Electrical Characteristics | ||||
Total Resistance | 500 ohm ~ 1 M ohm | |||
Resistance Tolerance | ±10% ; ±20% | |||
Residual Resistance | < 20 ohmR1-2 < 10 ohm / R2-3 < 20 ohm < 10 ohm | |||
Resistance Taper | B (Linear) / A (Log) / C (An-Ti Log) | |||
Power Rating | 0.05W (Linear) | |||
Max Operating Voltage | AC 50V / DC 20V | |||
Slide Noise | Under 100mV | |||
Insulation Resistance | 100M ohm Min. at DC250V | |||
Voltage Proof | AC 250V at 1 minute | |||
Switch | ||||
Push switch rating | 50V DC / 0.3A | |||
Push switch travel | 4.0 ± 0.5mm | |||
Function | DPDT | |||
Contact resistance | 30mΩ Max. | |||
Insulation Resistance | 100mΩ Min. | |||
Push switch torque | 400 ± 100 gf.cm | |||
Push switch life | 10,000 Cycles Min. | |||

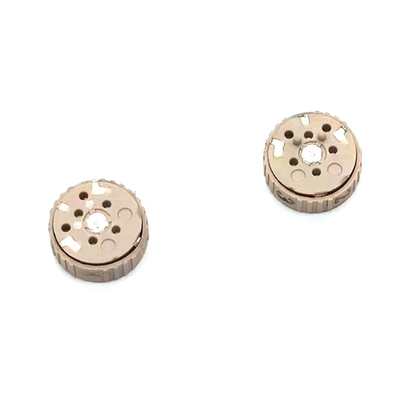

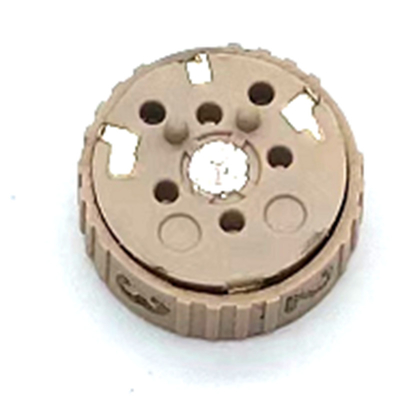

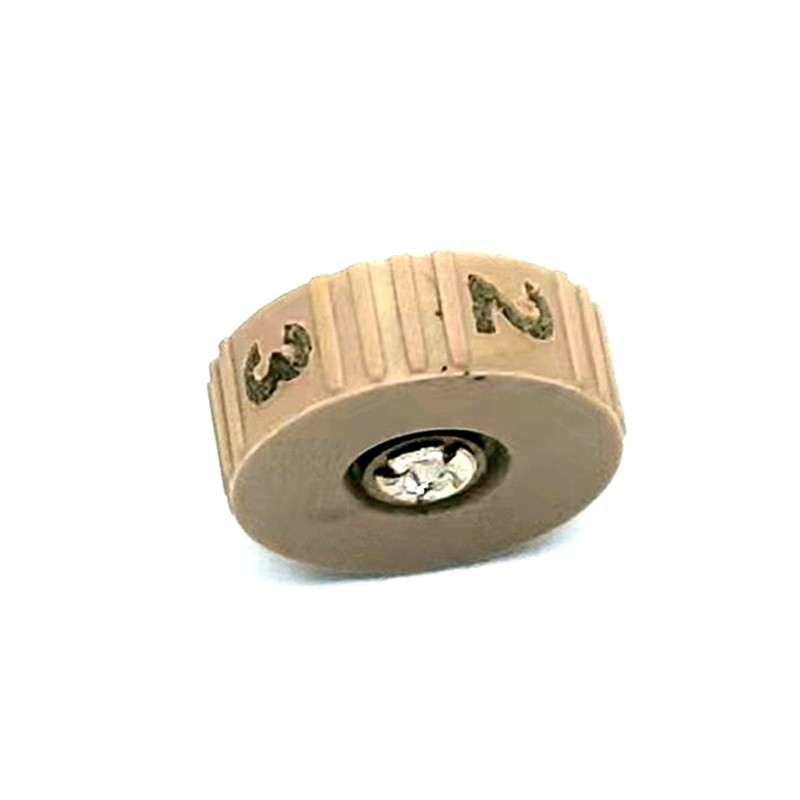

Products display
Applicaiton
We have a full range of special potentiometers, encoders and switches ,which are widely used for mixers,instruments, effects, car audio,air condition, lithgting control and household appliances contral panels ,all products are welcome customized.
FAQ
1.Where are linear potentiometers used?
Linear potentiometers have many uses in industries including,
Test/ lab applications.
Mobile vehicle.
Medical.
Agricultural machinery.
Industrial processing.
Robotics.
Industrial machinery.
Motorsport.
2.How are potentiometers rated?
The rating or “resistive” value of a potentiometer or variable resistor relates to the resistive value of the entire stationary resistance track from one fixed terminal to the other. So a potentiometer with a rating of 1kΩ will have a resistive track equal to the value of a 1kΩ fixed resistor.
