RD915S 9mm Rotary Potentiometer With Switch Carbon Film Potentiometer

Certification
China Dongguan Tianqian Electronics Co., Ltd. certification
China Dongguan Tianqian Electronics Co., Ltd. certification
I'm Online Chat Now

RD915S 9mm Rotary Potentiometer With Switch Carbon Film Potentiometer

RD915S 9mm Rotary Potentiometer With Switch Carbon Film Potentiometer
RD915S 9mm Rotary Potentiometer With Switch Carbon Film Potentiometer RD915S 9mm Rotary Potentiometer With Switch Carbon Film Potentiometer RD915S 9mm Rotary Potentiometer With Switch Carbon Film Potentiometer RD915S 9mm Rotary Potentiometer With Switch Carbon Film Potentiometer

Large Image :  RD915S 9mm Rotary Potentiometer With Switch Carbon Film Potentiometer

Product Details:
Place of Origin: China
Brand Name: TQ
Certification: CE
Model Number: RD915
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: USD 0.3-0.65
Packaging Details: Plastic
Payment Terms: T/T, Western Union

RD915S 9mm Rotary Potentiometer With Switch Carbon Film Potentiometer

Description
Total Ratational Angle: 300°±5° Rotational Torque: 1-20mN.m
Rotation Stopper Strength: 0.4N.m Push Pull Strength: 40N
Bushing Nut Tighting: 0.7N.m Total Resistance: 10KΩ-500KΩ
Tolerance: ±20% Rated Power: Curve B:0.05w
Max.operating Voltage: 50V Resistance Taper: A B C
Rotational Life: 15000 Cycles Application: Sound Instrument Volume Adjustment, Mixing Stand
High Light:

Sound Instrument 9mm Rotary Potentiometer

,

Carbon Film 9mm Rotary Potentiometer

,

Rotary Adjustment Carbon Film Potentiometer

RD915S 9mm Rotary Potentiometer With switch Carbon Film Potentiometer



item
value
Model Number
RD915S
Type
Rotary Potentiometer
Place of Origin
China

Guangdong
Brand Name
TQ
Technology
Carbon Film
Resistance
5K~500K
Resistance Tolerance
+/- 20%
Rated Power
0.05W
Max. Operating Voltage
AC 250V
Operating Temperature
-20~+70
Packaging
standard
Power (Watts)
0.2W
Tolerance
±20%
Adjustment Type
ROTARY

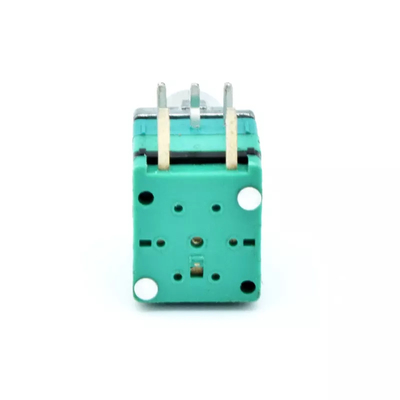

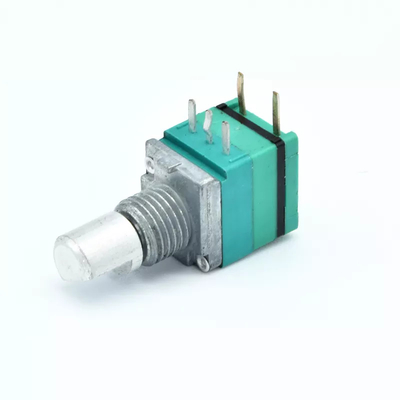

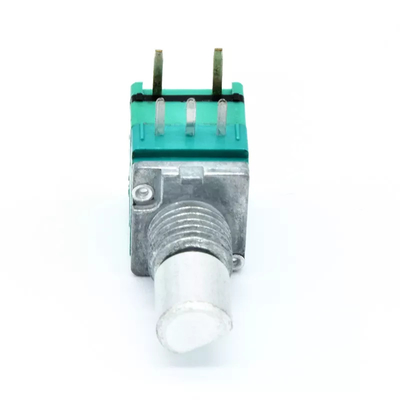

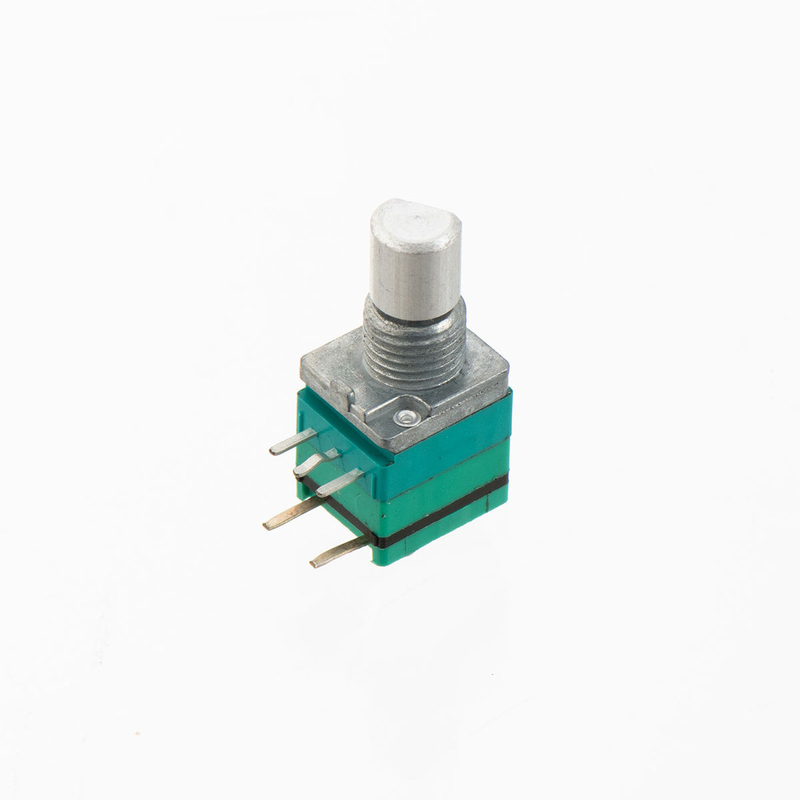

RD915S 9mm Rotary Potentiometer With Switch Carbon Film Potentiometer 0RD915S 9mm Rotary Potentiometer With Switch Carbon Film Potentiometer 1RD915S 9mm Rotary Potentiometer With Switch Carbon Film Potentiometer 2

RD915S 9mm Rotary Potentiometer With Switch Carbon Film Potentiometer 3

Packaging & Shipping





RD915S 9mm With switch Rotary Potentiometer small-scale type speed regulating dimming Potentiometer
