Product Details:
|
| Total Rotational Angle: | 300°±5° | Rotational Torque: | 1-20mN.m |
|---|---|---|---|
| Rotation Stopper Strength: | 0.4N.m | Push Pull Strength: | 40N |
| Bushing Nut Tighting: | 0.7N.m | Total Resistance: | 10kΩ-500kΩ |
| Total Resistance Tolerance: | ±20％ | Rated Power: | Curve B：0.05W |
| Max. Operating Voltage: | Curve B：50V | Resistance Taper: | A B C |
| Insulation Resistance: | More Than 100MΩ At DC 250V | Withstand Voltage: | For 1 Minute Or More At AC 250V |
| Rotational Life: | 15000 Cycles | Application: | Interphone |
| High Light: | Multi Ganged Rotary Potentiometer,Musical Instruments Rotary Potentiometer,Audio Frequency 9mm Rotary Potentiometer |
||

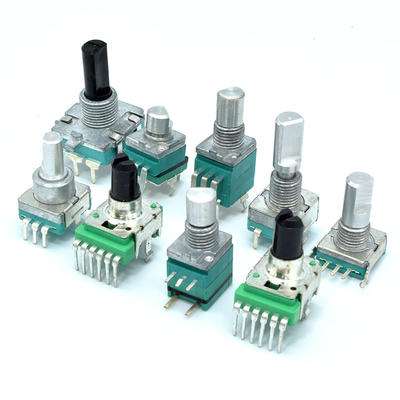

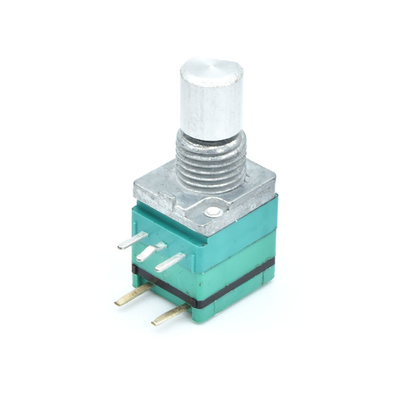

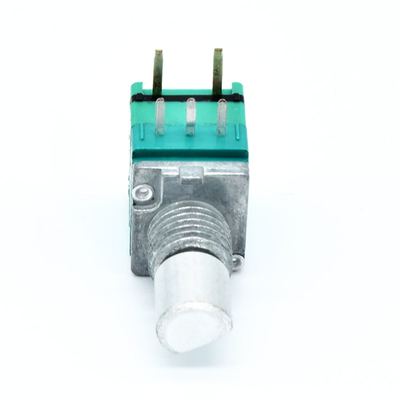

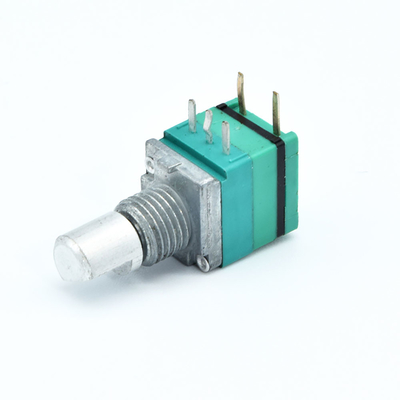

RD915S 9mm Metal Shaft Multi-Ganged Rotary Potentiometer For Musical Instruments And Audio Frequency
DispenserSpecification
|
item
|
value
|
|
Model Number
|
RD915S-A
|
|
Type
|
Rotary Potentiometer
|
|
Place of Origin
|
China
|
|
|
Guangdong
|
|
Brand Name
|
TQ
|
|
Technology
|
Carbon Film
|
|
Resistance
|
10kΩ-500kΩ
|
|
Resistance Tolerance
|
±20%
|
|
Rated Power
|
0.05W
|
|
Max. Operating Voltage
|
50V
|
|
Operating Temperature
|
-20-70
|
|
Brand
|
|
|
Power (Watts)
|
|
|
Tolerance
|
±20%
|
|
Adjustment Type
|
Bottom Adjustment
|
|
Diameter
|
9mm
|
|
Built in Switch
|
None
|
|
Total rotational angle
|
300°±5°
|
|
Rotation torque
|
1-20mN.m
|
|
rational stopper strength
|
0.4N.m
|
|
push pull strength
|
40N
|
|
bushing nut tighting
|
0.7N.m
|
|
tatal resistance
|
10kΩ-500kΩ
|
|
total resistance tolerance
|
±20%
|
|
rated power
|
curve B :0.05W
|
|
resistance taoer
|
A,B,C
|
|
rotational life
|
15000 cycles
|
