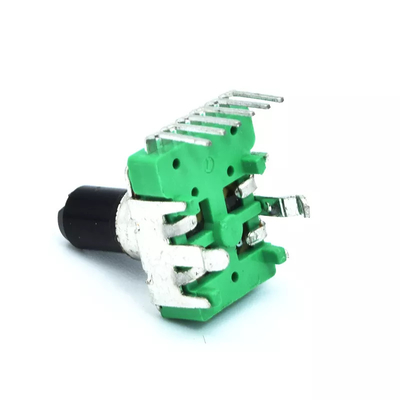

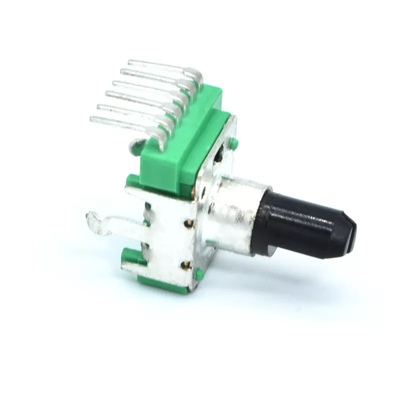

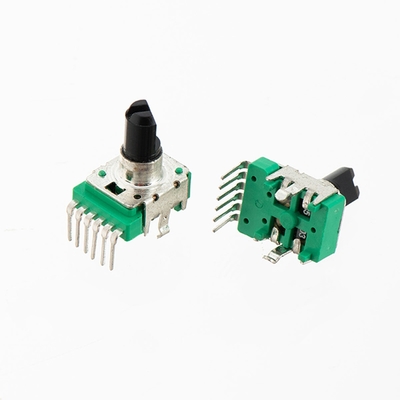

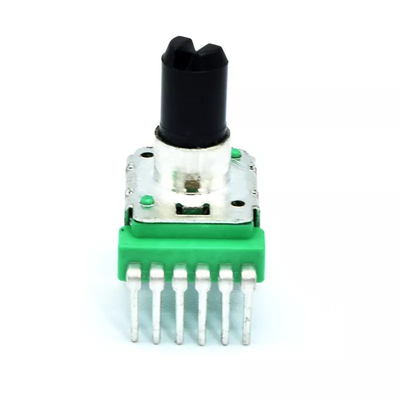

R1116G 11 Mm Dual Gang Metal Shaft Carbon Film Rotary Potentiometer B10k 50K 100K

R1116G 11 Mm Dual Gang Metal Shaft Carbon Film Rotary Potentiometer B10k 50K 100K
R1116G 11 Mm Dual Gang Metal Shaft Carbon Film Rotary Potentiometer B10k 50K 100K R1116G 11 Mm Dual Gang Metal Shaft Carbon Film Rotary Potentiometer B10k 50K 100K R1116G 11 Mm Dual Gang Metal Shaft Carbon Film Rotary Potentiometer B10k 50K 100K R1116G 11 Mm Dual Gang Metal Shaft Carbon Film Rotary Potentiometer B10k 50K 100K

Large Image :  R1116G 11 Mm Dual Gang Metal Shaft Carbon Film Rotary Potentiometer B10k 50K 100K

Product Details:
Place of Origin: China
Brand Name: TQ
Certification: CE ISO
Model Number: R1116G
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: USD 0.3-0.6
Payment Terms: T/T, Western Union

R1116G 11 Mm Dual Gang Metal Shaft Carbon Film Rotary Potentiometer B10k 50K 100K

Description
Total Ratational Angle: 300°±5° Rotational Torque: 1-20mN.m
Rotation Stopper Strength: 0.4N.m Total Resistance: 10KΩ-500KΩ
Tolerance: ±20% Max.operating Voltage: 50V
Type: Rotary Potentiometer Length: 11mm
Rotational Life: 15000 Cycles
High Light:

Rotary Potentiometer 15000 cycles

,

Metal Shaft Rotary Potentiometer

,

11 mm Carbon Film Potentiometer

R1116G 11 mm Dual Gang Metal Shaft Carbon Film Rotary Potentiometer B10k 50K 100K

R1116G 11 Mm Dual Gang Metal Shaft Carbon Film Rotary Potentiometer B10k 50K 100K 0

R1116G 11 Mm Dual Gang Metal Shaft Carbon Film Rotary Potentiometer B10k 50K 100K 1

R1116G 11 Mm Dual Gang Metal Shaft Carbon Film Rotary Potentiometer B10k 50K 100K 2

Specification
Mechanical specification
Total rotational angle
300°±5°
Rotational Torque
2-20m N.m (20~200gf.cm)
Rotational stop strength of the shaft
0.5N.m(5kgf.cm)
Shaft push and pull strength
70N(7kgf)
Shaft lever wobble
0.7*L/30mm-pp MAX.
Electrical Specification
Total resistance
5KΩ-2MKΩ
Total resistance tolreance
±20%(more than 1M Ω ±30%)
Rated Power
Taper B: 0.05W other than B: 0.025W
Max Operating voltage
Taper B: 50V AC 20V DCother than B: 30V AC 15V DC
Resistance taper
A,B,C
Residual resistance
R ≥250K Ω 0.1% max. of total resistance
250KΩ >R>10KΩ 20Ωmax
10K Ω ≥R 10Ωmax
Insulation resistance
more than 100MΩ at DC 500V
Dielectric Strength
Dielectric Strength
Rotational Life
15000 cycles
Packing & Delivery
R1116G 11 Mm Dual Gang Metal Shaft Carbon Film Rotary Potentiometer B10k 50K 100K 3
R1116G 11 Mm Dual Gang Metal Shaft Carbon Film Rotary Potentiometer B10k 50K 100K 4
Carton with blister box inside
