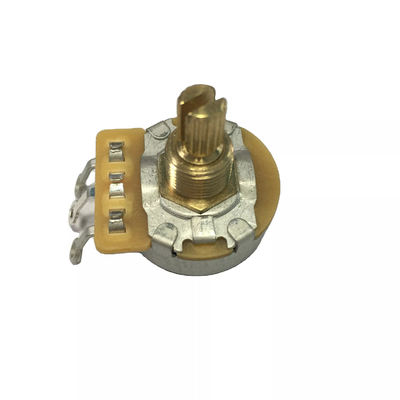

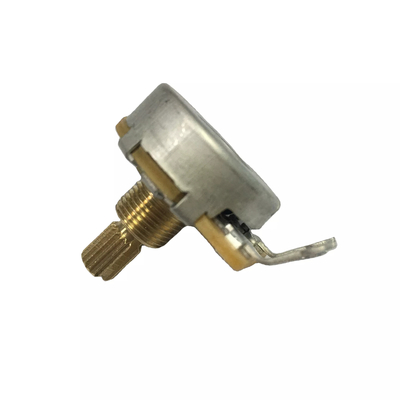

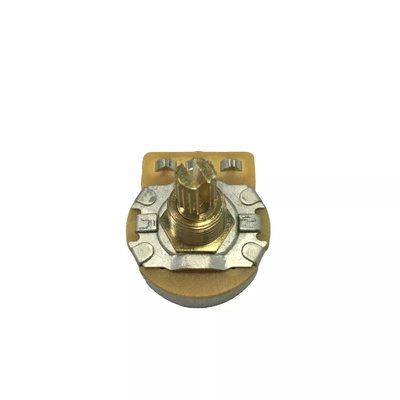

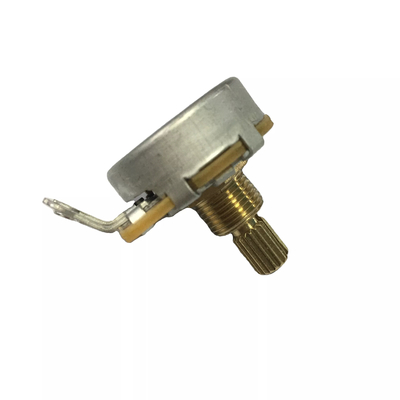

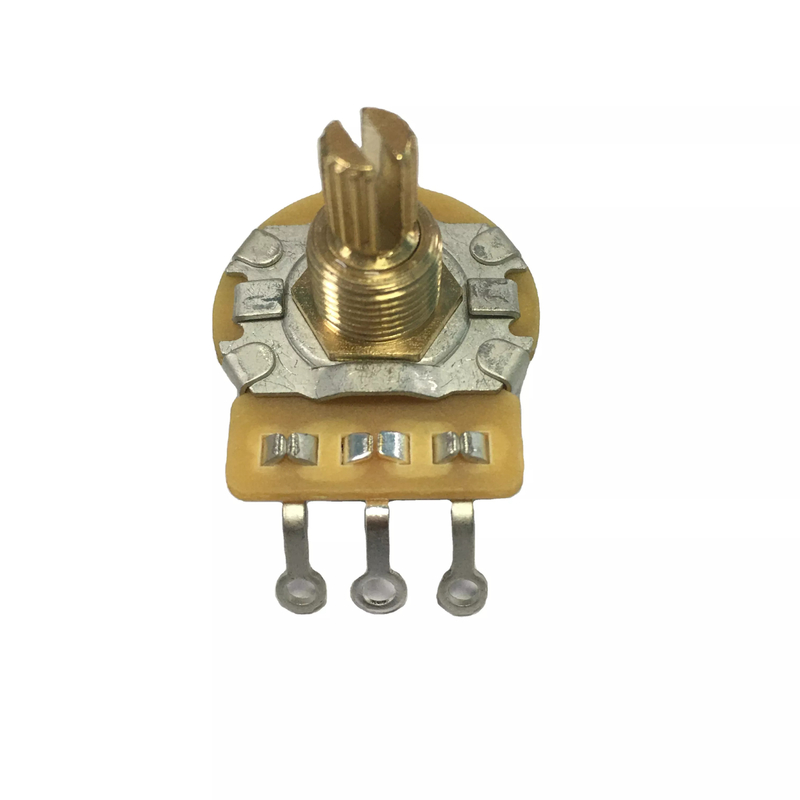

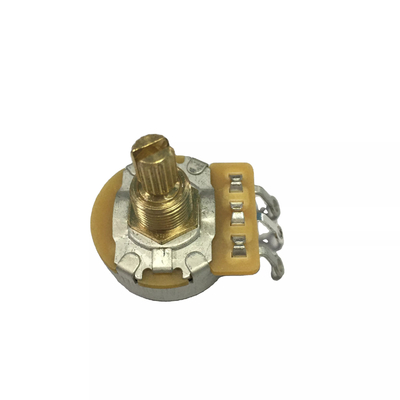

B500K Electric Guitar Pots 24mm Bass Guitar Potentiometers

B500K Electric Guitar Pots 24mm Bass Guitar Potentiometers
B500K Electric Guitar Pots 24mm Bass Guitar Potentiometers B500K Electric Guitar Pots 24mm Bass Guitar Potentiometers B500K Electric Guitar Pots 24mm Bass Guitar Potentiometers B500K Electric Guitar Pots 24mm Bass Guitar Potentiometers B500K Electric Guitar Pots 24mm Bass Guitar Potentiometers B500K Electric Guitar Pots 24mm Bass Guitar Potentiometers B500K Electric Guitar Pots 24mm Bass Guitar Potentiometers

Large Image :  B500K Electric Guitar Pots 24mm Bass Guitar Potentiometers

Product Details:
Place of Origin: GUANGDONG,CHINA
Brand Name: TQ
Certification: SGS,ROHS
Model Number: RV24
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Packaging Details: OPP Bag+box
Delivery Time: 20 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 10000000pcs per day

B500K Electric Guitar Pots 24mm Bass Guitar Potentiometers

Description
Model: RV24 Brand: TQ
Packing: OPP Bag+box Knob: White, Black
Material: ABS+Metal Style: Adjustable
Application: Control Switch Type: Effects
High Light:

B500K Electric Guitar Pots

,

b500k potentiometer 24mm

,

24mm bass guitar potentiometers

PRODUCTION DESCRPTION


Key Specifications/ Special Features:

Electrical characteristics:
1.1 Overall resistance range: 500Ω to 1MΩ (tolerance ±20%)
1.2 Power rating: B taper 0.5W except B taper 0.25W
1.3 Residual resistance: less than 20Ω
1.4 Rotation noise (refer to JIS): 100MV maximum
1.5 Insulation resistance: 100MΩ min at 500V DC
1.6 Dielectric test: units shall be designed to with stand 300V AC between resistance
elements and case for a period of one minute without damage or arcing
1.7 Maximum operating voltage: B taper 200V AC except B taper 150V AC
1.8 Rated wattage :0.5W 0.25W
Rated voltage:500v 250V
Switch rating :125VAC, 1A

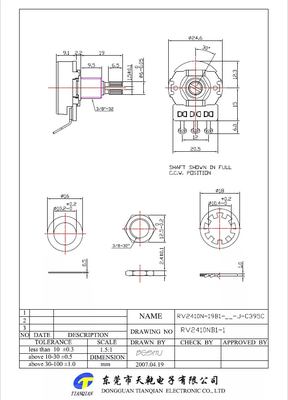

Mechanical characteristics:
2.1 Overall rotation angle: 300 ±5°
2.2 Operation torque: 20 to 200gf/cm (rotational speed 60°/1 second)
2.3 Play of shaft: resistor shall be mounted by soldering mounting legs on
the panel and an end thrust of 500gf/cm at the end of the shaft shall be applied
then the total play of the shaft shall not exceed
0.7*L/30mm P to P
2.4 Strength of shaft against end thrust: shaft shall withstand against end thrust of not less than 8kgf for 3 seconds
2.5 Shaft end stop strength: 6kgf/cm minute
2.6 Number of click: 1, 11, 21 and 41C
2.7 Torque of click: rotation torque 50 to 300gf/cm (2.6 and 2.7 is used for click only)
2.8 Bushing mount strength: 5kgf/cm minute
Endurance characteristics:
3.1 Rotational life: more than 10,000 cycles
Other:
4.1 Operating temperature range: -10 to +70°C
4.2 Storage temperature range: -20 to +80°C
Certifications:
CE and RoHS Directive-compliant



B500K Electric Guitar Pots 24mm Bass Guitar Potentiometers 0B500K Electric Guitar Pots 24mm Bass Guitar Potentiometers 1B500K Electric Guitar Pots 24mm Bass Guitar Potentiometers 2B500K Electric Guitar Pots 24mm Bass Guitar Potentiometers 3B500K Electric Guitar Pots 24mm Bass Guitar Potentiometers 4B500K Electric Guitar Pots 24mm Bass Guitar Potentiometers 5



SPECIFICATION


5 Way Pickup Selector Switch for Electric Guitars


Items is 100% like the picture shown
3 Way or 5 Way Guitar Switch With white/Black knob
Fit for TL Strat Electric Guitar

We could offer guitar parts & accessories with various styles , the items showed on alibaba is not all products we supplied, if you need more items, welcome to contact with us. We offer discount for large quantity.
B500K Electric Guitar Pots 24mm Bass Guitar Potentiometers 6



Brand TQ
Origin Guangdong, China
Color Yellow
Model RV24
Application Electrical guitar/bass
Packing OPP bag+carbon box
Ternimal 3
Rotation Customize
