Product Details:
|
| Type: | Precision Multi-turn Adjustable Potentiometer | Brand: | TQ |
|---|---|---|---|
| Packing: | OPP Bag+box | Keywords: | Potentiometer 3296W-10R |
| Potentiometer 3296W-10R: | 10R | Style: | Adjustable |
| Model: | Cermet Trimmer 3296W | ||
| High Light: | 1k Trimmer Potentiometers,Trimmer Potentiometers 102,Trimmer 1k Ohm ROHS |
||

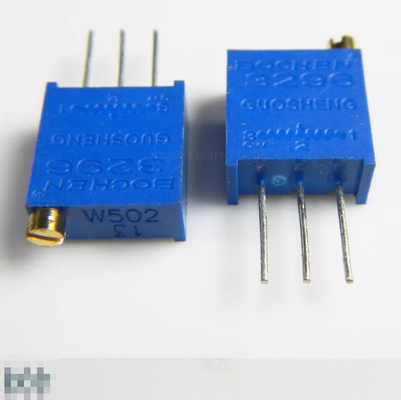

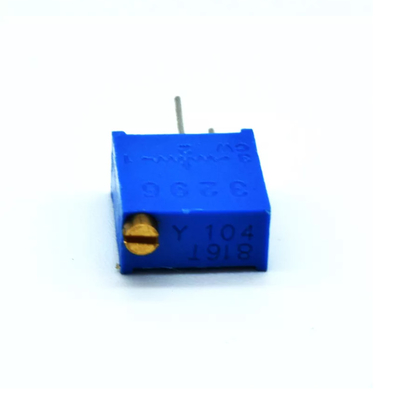

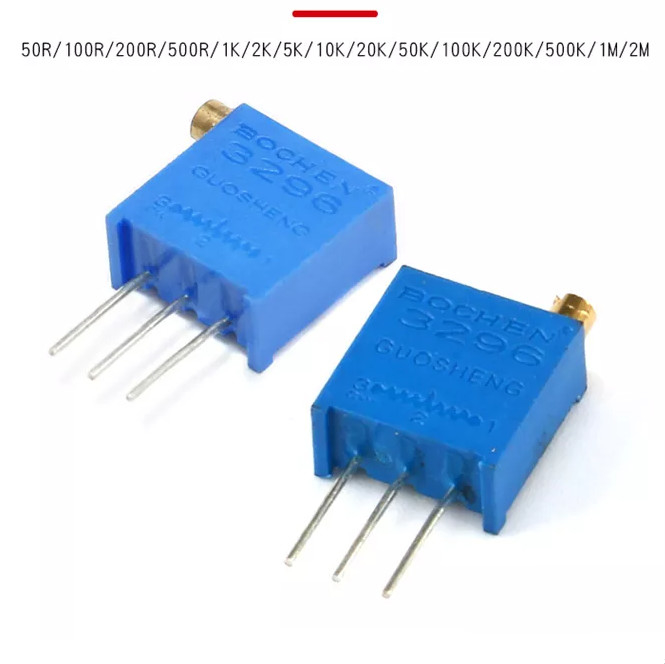

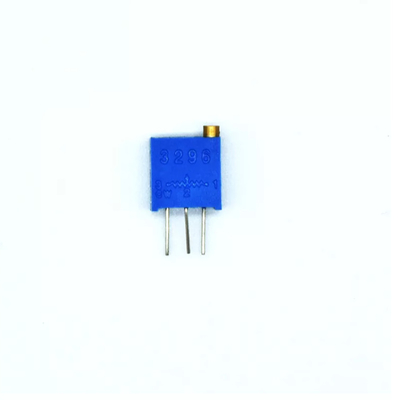

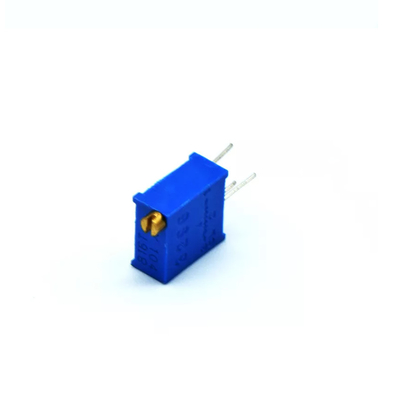

Trimpots, also known as potentiometers, are multi-turn adjustable resistors used for adjustment, calibration, and tuning purposes in circuits. They are easily mountable on PCB boards with a pin spacing of 0.1-inches and adjusted by a screwdriver. The internal resistive track is a carbon composition or cermet.
To use a trimpot potentiometer, connect the CCW (pin 1) and CW (pin 3) terminal with positive supply and ground terminal, respectively. A variable output will be present at the wiper terminal (pin 2). To adjust output value, rotate the screw on the top of the trimpot, which rotates the wiper inside the potentiometer, and varies the resistance.
SPECIFICATION
| BRAND NAME | TQ |
| ORIGIN | GUANGDONG,CHINA |
| SHIPPING PORT | SHENZHEN |
| MODEL | 3296W |
| POWER RATING | 0.5W |
| 25 turns and rotational life of 200 cycles | |
| Temperature coefficient | ±100ppm/°C |
| Temperature Range | -55 °C to +125 °C |
| APPLICATION | consumer electronics, industrial, portable devices, power management |
WORKSHOP&FACTORY
Cooperation partner
Dongguan TianQian Electronics Co., Ltd. established in 2008, it is specialized in design, development and production of high precision components such as Rotary Potentiometer, Sliding Potentiometer, Foot Switch, Band Switch, AC Switch, Sensor, Encoder, Tact Switch and Connectors. The products are widely used in Dimmable Lighting, Audio Mixer, Home Appliances, Automobile, Multimedia, Audio Equipments, Instrument, Toys, Aviation Model and Communication Equipments. We have an area of 3,000 square meters of factory building. Our R&D team members have more than 20 years experience in the component industry. In order to meet the high quality demand from worldwide customers, we widely use automated production lines which can output more than 80% of annual production capacity. It takes pride in the achievement that we have been the key supplier of JVC, Brother, IKEA, Midea, Microsoft, Honeywell, Sennheiser, Primax and GGEC...etc. With the consistent enterprise principles "Striving Excellence" & "Quality Assurance", we hope both parties can establish a mutual benefit relationship and create a win-win situation.
1. who are we?
We are based in Guangdong, China, start from 2013,sell to North America(15.00%),Western Europe(10.00%),Central America(10.00%),Eastern Europe(10.00%),South America(10.00%),Oceania(5.00%),Eastern Asia(5.00%),Northern Europe(5.00%),Southern Europe(5.00%),Africa(5.00%),Southeast Asia(5.00%). There are total about 301-500 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
potentiometer,encoder,switch,Foot Switch,Rotary Switch
4. why should you buy from us not from other suppliers?
Our R&D team have more than 20 years experience in the component industry.Our customers through all over the world,such as Brother,IKEA,Microsoft,Honeywell etc. The products widely used in aviation model,communication equipment, adjustable lighting.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese
Contact Person: Emma
Tel: +8613613717515
