Product Details:
|
| Model: | C6044 | Sliding Travel: | 60mm |
|---|---|---|---|
| Lever Type: | Metal | Application: | Audio Mixer/mixing Console |
| Life Span: | 30000 Cycles | Certificates: | CE SGS BV |
| Brand: | TQ | Rated Power: | 0.2W |
| Retaed Voltage: | 200V AC For Taper B | Slider Noise: | Less Than 47mV |
| High Light: | 60mm Slide Potentiometer,lide Potentiometer B100K,B100K Linear Resistance Potentiometer |
||

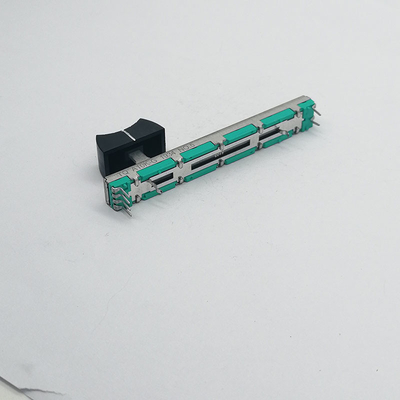

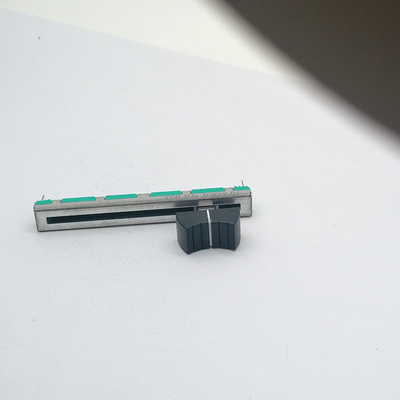

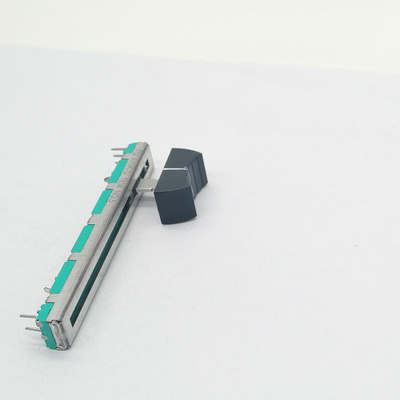

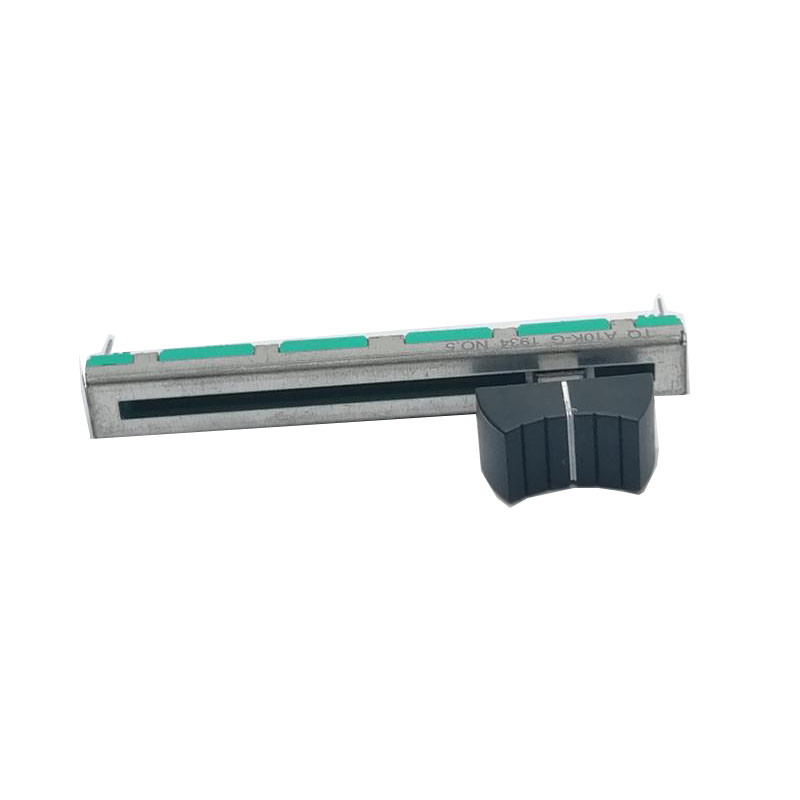

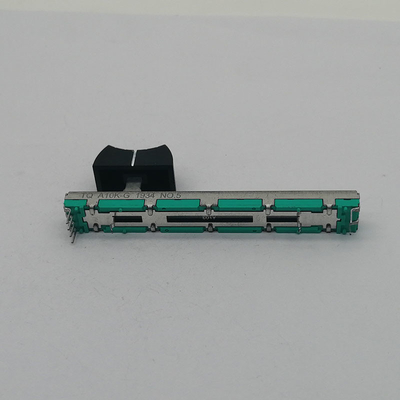

60mm travel potentiomter metal lever with black dust cloth slide fader for mixing consoles
Quick Detail:
Description:
The model slide fader is 60mm sliding travel ,newly designed potentiometer. It's widely welcomed by manuy customers from mixing console industry. We have a few gib brand audio mixing console manufacturer to use the product well
Specifications:
| Tech Data |
||
| Model |
C6044 |
|
| Slide travel |
60mm |
|
| Lever material | metal | |
| rated |
0.2W |
|
| Rated voltage |
200V AC for taper B | |
| insulation resistance |
over 100M ohms |
|
| Certificate |
CE, BV, SGS |
|
| Life span | 30000 cycles |
|
| slide noise |
less than 47 mV | |
| operating force | 10-40 gf | |
| Housing Color |
sliver |
|
| Net Weight |
10g | |
| Dimension |
425 x 255 x 320mm |
|
| package |
carton with inner tray | |
