Product Details:
|
| Total Rotational Angle: | 300°±5° | Total Resistance: | 5KΩ~2MΩ |
|---|---|---|---|
| Total Resistance Tolerance: | ±20%(more Than 1MΩ±30%) | Rated Power: | B:0.125W Other Than B:0.06W |
| Max.operating Voltage: | B:200V AC Other Than B:150V AC | Resistance Taper: | A,B,C |
| Rotational Torque: | 2~20mN.m(20~200gf.cm) | Click Position: | Center,11,21,31,41 Detent |
| Push Pull Strength: | 70N(7kgf) | Application: | Tuning, Dimming, Speed Regulation |
| High Light: | 70N Rotary Switch Potentiometer,Potentiometer Vertical 2ohm,Vertical Potentiometer 70N |
||

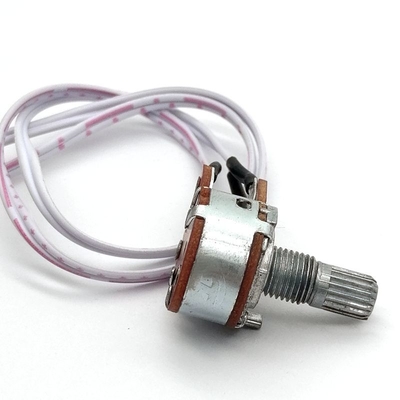

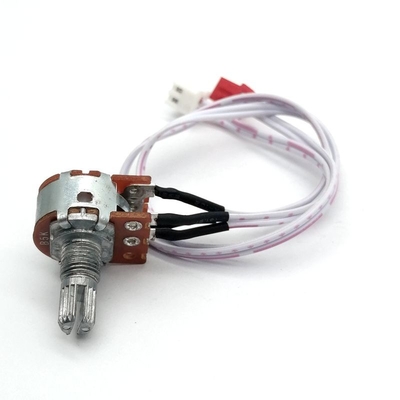

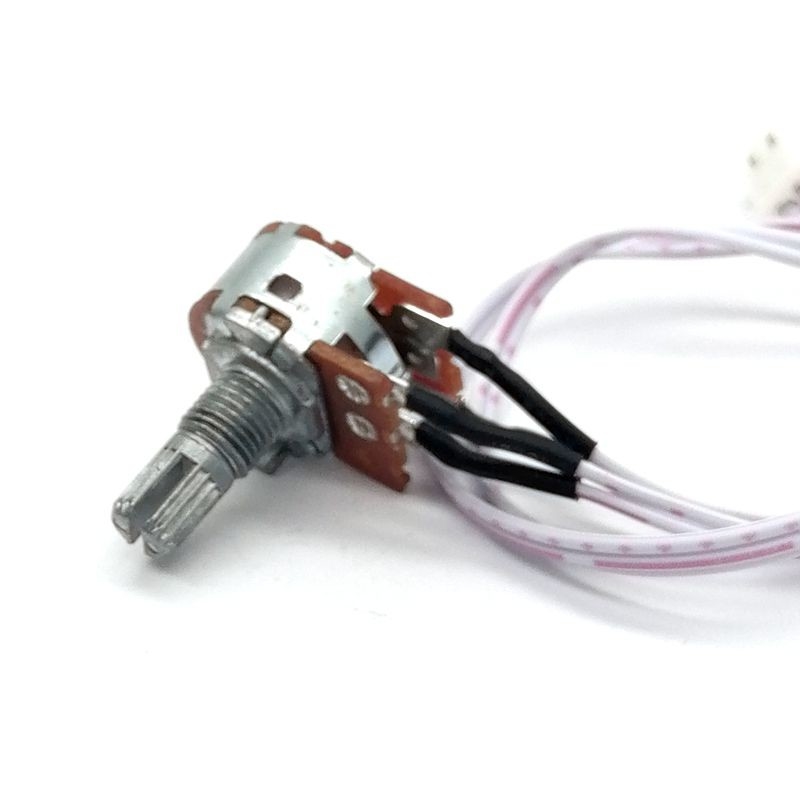

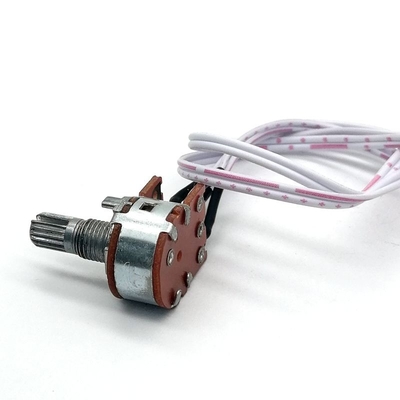

16mm rotary potentiometer with switch and solder wire for tuning speed regulation
Product Description
Specification
About rotary potentiometer
1) Shaft type:: D shaft, R-shaft, K-shaft,Spline shaft
2) Taper: A,B,C.
3) Resistance value: 5-500K
4)Shaft length:10mm,15mm,20mm,25mm
5)Pin number:3
6)Gang number: 1,2,3,4
7)Pin type: N and P
Application
a) Audio mixer
b) Speaker
c) Microphone
d) Walkie-talkie
e) musical instrument
f) drones
g) earphones
h) amplifier
i) Dimmer adjustment
j) medical instrument
k) recorder
l) hair straigtener and curler and drier
m) sewing machines
n) juicer
o) electric fan
p) Electric car
q) Plane
Packing
1 polybag
2 inner box
3 carton
Packing & Delivery
UPS: special express for North America,need 3-5 working days
DHL: normally 3-5 business days could reach your side
FEDEX: normally 3-10 business days could reach US and European
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
Dongguan TianQian Electronics Co., Ltd. established in 2008, it is specialized in design, development and production of high precision components such as Rotary Potentiometer, Sliding Potentiometer, Foot Switch, Band Switch, AC Switch, Sensor, Encoder, Tact Switch and Connectors. The products are widely used in Dimmable Lighting, Audio Mixer, Home Appliances, Automobile, Multimedia, Audio Equipments, Instrument, Toys, Aviation Model and Communication Equipments. We have an area of 3,000 square meters of factory building. Our R&D team members have more than 20 years experience in the component industry. In order to meet the high quality demand from worldwide customers, we widely use automated production lines which can output more than 80% of annual production capacity. It takes pride in the achievement that we have been the key supplier of JVC, Brother, IKEA, Midea, Microsoft, Honeywell, Sennheiser, Primax and GGEC...etc. With the consistent enterprise principles "Striving Excellence" & "Quality Assurance", we hope both parties can establish a mutual benefit relationship and create a win-win situation.
Certifications & Exhibition
We have got many certificates for our management system ISO-90001 and IATF16949 for potentiometer,encoder and switch.In the same time we have got certification from CE,ROHS for our products
Application
Products are widely used in: Internet of things,aviation model, OA transaction machine, computer perimeter,electronic toys,game, car image, power tools, intercom, household appliances, home theater, adjustable lighting and medical equipment,instruments and other fields
Workshop
We have three factories located in Dongguan and Henan for making potentiometer,encoder and switch. There are 350 workers and staff in the factories,10 R&D skilled staff and 30 QC and QA persons. There are 12 production lines which produce 5 million pcs per day. We can meet your order demand for the larger quantity. The quality and delivery can be guaranteed
Why choose us?
1: Factory direct sales price
2: High quality and fast delivery
3: Lower MOQ is acceptable
4: Multi choice payment
6: Good after-sale service
7. Three factories for potentiometer,encoder and switch
8. Location near Hong Kong . Transportation is very convenient
We have many famous big brand customers all over the world, such as: Presonus Ikea, Brother, Microsoft, Media,etc
OEM and ODM are both acceptable
