Product Details:
|
| Rating: | 2A 250VAC | Contact Resistance: | ≤50mΩ |
|---|---|---|---|
| Insution Resistance: | ≥100MΩ | Pressure: | 1500V |
| The Ues Of Temperature: | -20~70℃ | Life: | ≥10000 Cycles |
| High Light: | 17mm Push Button Footswitch,Push Button Footswitch 1500V,1500V Stomp Switch 3pdt |
||

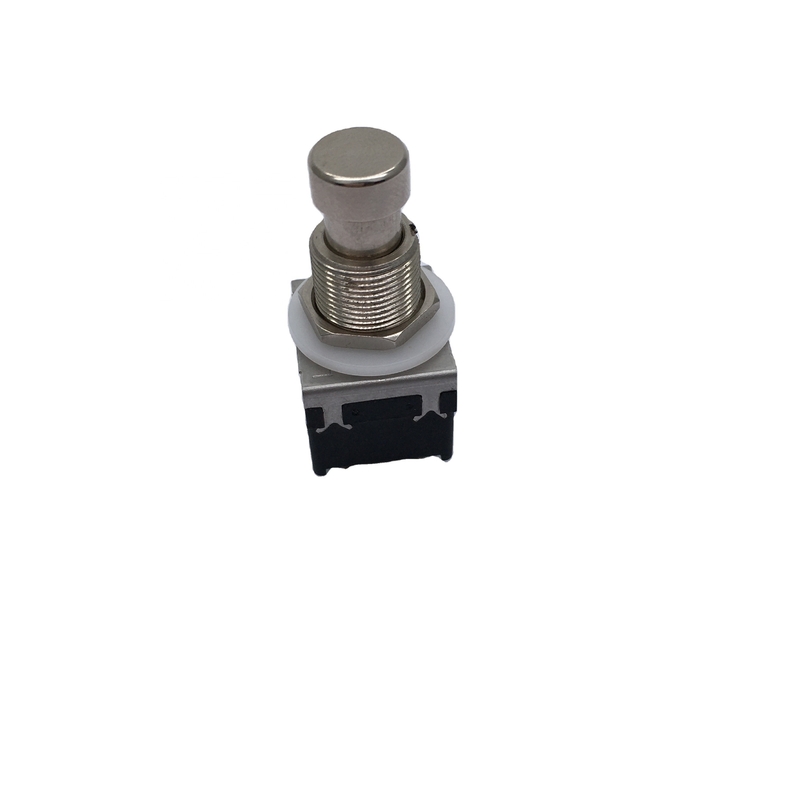

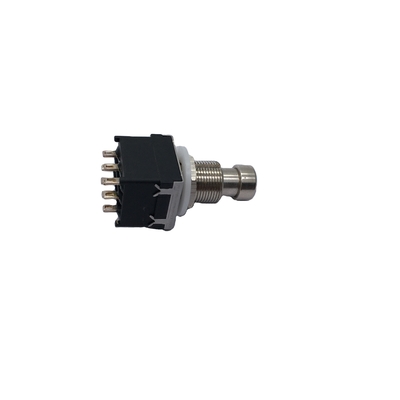

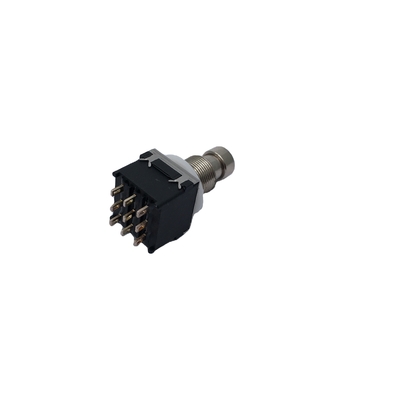

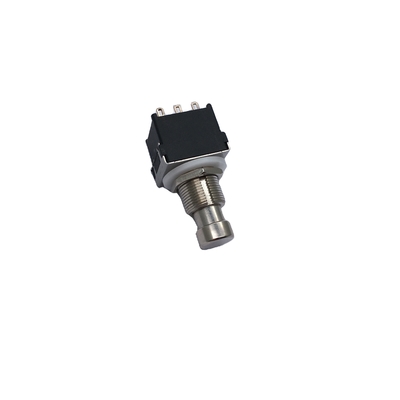

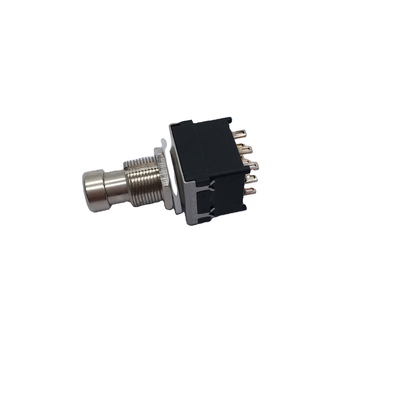

17mm Foot Switch DPDT Guitar Effector Step Control 9-Pin 3PDT Used For Electric Guitar
Working principle of potentiometer: composed of resistance body and rotation or sliding system, namely by a moving contact moving on resistance body, obtain partial voltage output
1, used as a voltage divider
A potentiometer is a continuously adjustable resistor in which moving contacts slide on the resistor body when adjusting the potentiometer's turn or slide handle. At this time, the potentiometer output terminal can be obtained and potentiometer applied voltage and movable arm Angle or stroke into a certain relationship of the output voltage
2. Used as rheostat
When potentiometer is used as rheostat, should connect it into two ends device, inside the range of travel of such flower potentiometer, can obtain the resistance value of a smooth and continuous change
3, used as current controller
When the potentiometer is used as a current controller, one of the selected current outputs must be the sliding contact leads.
Specification
|
item |
value |
|
Certification |
CE |
|
Place of Origin |
China |
|
|
Guangdong |
|
Brand Name |
tianqian |
|
Model Number |
SF17 |
|
Max. Current |
3A |
|
Max. Voltage |
250V |
|
Mechanical Life |
10000 |
|
Rating |
2A 250VAC ;3A 125VAC |
|
Contact resistance |
≤50MΩ |
|
Insulation resistance |
≥100MΩ |
|
pressure |
1500V/min |
|
the use of temperature |
-20℃~+70℃ |
|
life |
≥10000 cycles |
Packing & Delivery
Dongguan TianQian Electronics Co., Ltd. established in 2008, it is specialized in design, development and production of high precision components such as Rotary Potentiometer, Sliding Potentiometer, Foot Switch, Band Switch, AC Switch, Sensor, Encoder, Tact Switch and Connectors. The products are widely used in Dimmable Lighting, Audio Mixer, Home Appliances, Automobile, Multimedia, Audio Equipments, Instrument, Toys, Aviation Model and Communication Equipments. We have an area of 3,000 square meters of factory building. Our R&D team members have more than 20 years experience in the component industry. In order to meet the high quality demand from worldwide customers, we widely use automated production lines which can output more than 80% of annual production capacity. It takes pride in the achievement that we have been the key supplier of JVC, Brother, IKEA, Midea, Microsoft, Honeywell, Sennheiser, Primax and GGEC...etc. With the consistent enterprise principles "Striving Excellence" & "Quality Assurance", we hope both parties can establish a mutual benefit relationship and create a win-win situation.
How does your company do regarding quality control?
Each year we have quality supervision department inspection, and issue inspection reports, each batch of goods will be strictly controlled, the company's internal will have qualityregulation, to ensure that every batch of products qualified and best quality.
Dongguan TianQian electonics factory offer you :
1: factory direct price.
2:nice quality.
3:small order welcome
4: online payment.
5: after sales services 24/7.
We had the honor to serve many of the famous big companies all over the world.
welcome to be one of our top VIP customers.
we accept support OEM drder.
we believe that “the quality is the soul of an enterprise”.
we believe in win-win situation.
