Product Details:
|
| Total Resistance: | 1kΩ~1MΩ | Total Resistance Tolerance: | ±20％ |
|---|---|---|---|
| Resistance Taper: | A B C W | Insulation Resistance: | 100MΩ Min. At 250V DC |
| Withstand Voltage: | AC 300V | Rated Power: | 0.1W |
| Max. Operating Voltage: | 200AC V | Total Resistance: | 50kΩ |
| Operating Force: | 0.3~2.5N | Stopper Strength: | 50N |
| Bending Moment: | 25mN.m | Push Pull Strength: | 50N |
| Click Slip-out Force: | 0.2~2N | Lever Deviation: | 0.5 Max. |
| Sliding Life: | 15000 Cycles | Application: | Sound Console |
| High Light: | 1000ohm 50k Slide Potentiometer,50k Slide Potentiometer 20mm,20mm Motorized Slide Pot |
||

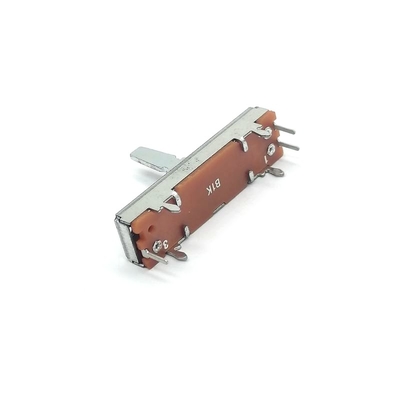

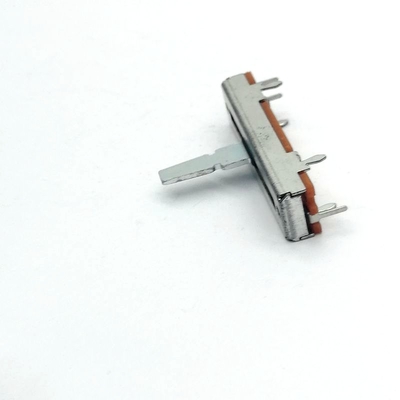

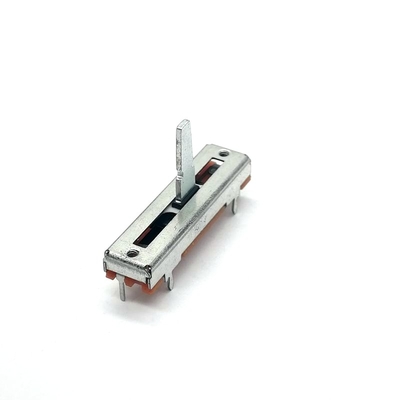

C3021N Metal Handle 20mm Travel 8.1 Mm Wide Used For Sound Console Earphone And Microphone
Working principle of potentiometer: composed of resistance body and rotation or sliding system, namely by a moving contact moving on resistance body, obtain partial voltage output
1, used as a voltage divider
A potentiometer is a continuously adjustable resistor in which moving contacts slide on the resistor body when adjusting the potentiometer's turn or slide handle. At this time, the potentiometer output terminal can be obtained and potentiometer applied voltage and movable arm Angle or stroke into a certain relationship of the output voltage
2. Used as rheostat
When potentiometer is used as rheostat, should connect it into two ends device, inside the range of travel of such flower potentiometer, can obtain the resistance value of a smooth and continuous change
3, used as current controller
When the potentiometer is used as a current controller, one of the selected current outputs must be the sliding contact leads
Contact type
1. The rated load:DC 4V 300mA
2. Contact impedance: <50mΩ
3. Insulation impedance: > 1 00mΩ DC500V
4. Resistance welding temperature: 250±15° 5s
5. The service life of the: 10,000 cycles
6. The use of temperature: -25 C to 80 'C
7. Use the humidity: 85% RH
8. Operating force : 200gf
|
item
|
value
|
|
Model Number
|
C2021N QA1 B1K
|
|
Type
|
Slide Potentiometer
|
|
Place of Origin
|
China
|
|
|
Guangdong
|
|
Brand Name
|
TQ
|
|
D/C
|
C2021N QA1 B1K
|
|
Technology
|
Carbon Film
|
|
Resistance
|
1K
|
|
Resistance Tolerance
|
Tolerance: +/- 20%
|
|
Rated Power
|
0.05W
|
|
Max. Operating Voltage
|
200V AC
|
|
Operating Temperature
|
-20~+70
|
|
Brand
|
mixing console Slide potentiometer
|
|
Packaging
|
none
|
|
Power (Watts)
|
0.05W
|
|
Tolerance
|
±20%
|
|
Adjustment Type
|
Slide
|
|
Diameter
|
none
|
|
Length
|
none
|
|
Mounting Type
|
plug in
|
|
Termination
|
none
|
|
Package / Case
|
none
|
|
Built in Switch
|
None
|
|
Temperature Coefficient
|
0.05
|
|
Rotation
|
Not Applicable
|
|
Resistive Material
|
Carbon
|
|
Termination Style
|
Not Applicable
|
|
Actuator Type
|
Flatted
|
|
Actuator Length
|
15mm
|
|
Actuator Diameter
|
Not Applicable
|
|
Bushing Thread
|
Not Applicable
|
|
Shaft Size
|
Not Applicable
|
|
Number of Turns
|
Not Applicable
|
|
Cross Reference
|
C2021N QA1 B1K
|
|
Product name
|
mixing console Slide potentiometer
|
|
Service
|
OEM ODM Availeble
|
|
Certification
|
CE ROHS
|
|
Delivery Time
|
7~10 Days
|
|
Insulation Resistance
|
100Ω mini @250V DC
|
|
Withstand voltage
|
AC300V
|
|
Package
|
Carton
|
|
Shipping By
|
DHLUPSFedexEMSHK Post
|
|
Main travel
|
20MM
|
|
Application
|
mixing console
|
Packing &Delivery
Company Profile
About slide potentiometer
1) lever type:: C lever, CA-lever, B-lever
2) Taper: A,B,C.W
3) Resistance value: 5-500K
4)lever length:10mm,15mm,20mm,25mm
5)Pin number:3
Application
a) Audio mixer
b) Speaker
c) Microphone
d) Walkie-talkie
e) musical instrument
f) drones
g) earphones
h) amplifier
i) Dimmer adjustment
j) medical instrument
k) recorder
l) hair straigtener and curler and drier
m) sewing machines
n) juicer
o) electric fan
Packing
1.polybag
2 inner box
3 carton
Our Advantages
1. Years of manufacturing experience
2. Variety of Type, Provide Professional Products with more than 2,000 type.
3. Original manufacturer with direct factory price, Competitive & Professional.
4. High Standard management for quality control.
5. Small order acceptable: 1,000 pieces.
6. Safe payment terms: T/T and Western Union are available.
7. Prompt Delivery & Lowest shipping cost : We can get low discount from DHL, Fedex, UPS, TNT, EMS, etc.
8. OEM, ODM available.
9. Got good reputation both at home and abroad. Long-term Supplier for Customers' reference.
10. Excellent Service, Smooth export procedure
