Product Details:
|
| Push Pull Strength: | 30N | Operating Force: | 0.2~2N |
|---|---|---|---|
| Lever Deviation: | 0.5max. | Total Resistance: | 5kΩ-2MΩ |
| Total Resistance Tolerance: | ±20％ | Resistance Taper: | A B C |
| Insulation Resistance: | 100MΩ Min. At 250VDC | Withstand Voltage: | AC 300V |
| Reated Power: | 0.1W | Max. Operating Voltage: | 200AC V |
| Residual Resistance: | 100kΩ | Silding Life: | 15000 Cycles |
| Application: | Sound Console | ||
| High Light: | 5ohm Slide Potentiometer,Slide Potentiometer 9.5Mm,100k Ohm Linear Taper Potentiometer |
||

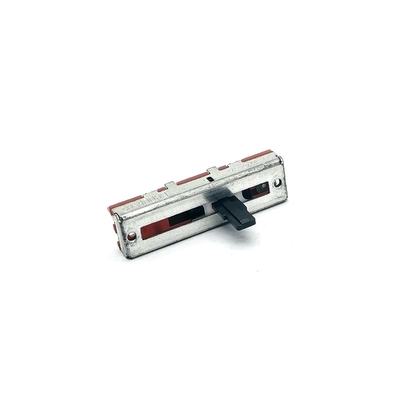

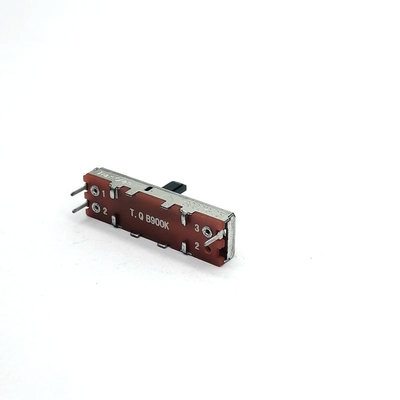

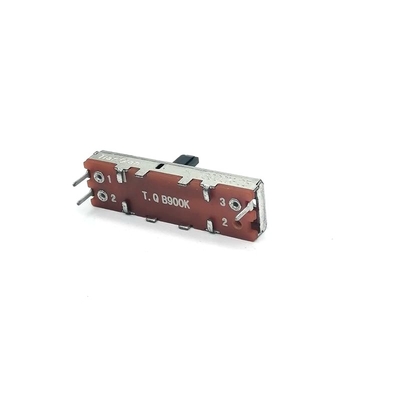

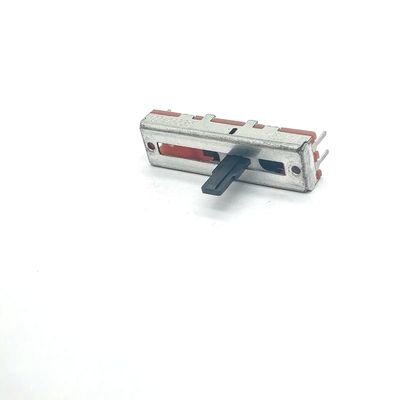

C2031S Metal Handle 20mm Travel 9.5 Mm Wide Used For Sound Console Earphone And Microphone
About slide potentiometer
1) Shaft type:: D shaft, R-shaft, K-shaft,Spline shaft
2) Taper: A,B,C.
3) Resistance value: 5-500K
4)Shaft length:10mm,15mm,20mm,25mm
5)Pin number:3
6)Gang number: 1,2,3,4
7)Pin type: N and P
|
item
|
value
|
|
Model Number
|
C2031S-1A2-B900K-9N
|
|
Type
|
Slide Potentiometer
|
|
Place of Origin
|
China
|
|
|
Guangdong
|
|
Brand Name
|
TQ
|
|
D/C
|
C2031S-1A2-B900K-9N
|
|
Technology
|
Carbon Film
|
|
Resistance
|
B900K
|
|
Resistance Tolerance
|
±20%
|
|
Rated Power
|
0.1w
|
|
Max. Operating Voltage
|
AC 200V
|
|
Operating Temperature
|
-20°C - +70°C
|
|
Brand
|
Electric sewing machine slide switch potentiometer
|
|
Packaging
|
None
|
|
Power (Watts)
|
0.1w
|
|
Tolerance
|
±20%
|
|
Adjustment Type
|
Slide
|
|
Diameter
|
none
|
|
Length
|
none
|
|
Mounting Type
|
plug in
|
|
Termination
|
none
|
|
Package / Case
|
none
|
|
Built in Switch
|
None
|
|
Temperature Coefficient
|
0.05
|
|
Rotation
|
Not Applicable
|
|
Resistive Material
|
Carbon
|
|
Termination Style
|
Not Applicable
|
|
Actuator Type
|
Flatted
|
|
Actuator Length
|
10mm
|
|
Actuator Diameter
|
Not Applicable
|
|
Bushing Thread
|
Not Applicable
|
|
Shaft Size
|
Not Applicable
|
|
Number of Turns
|
Not Applicable
|
|
Cross Reference
|
C2031S-1A2-B900K-9N
|
|
Product name
|
sewing machine slide switch potentiometer
|
|
Service
|
OEM Customization
|
|
Certification
|
CE ROHS
|
|
Delivery Time
|
7~10 Days
|
|
PAYMENT
|
PaypalTTWestern Union Trade Assurance
|
|
Appliance
|
sewing machine
|
|
Package
|
Carton
|
|
Key words 2
|
sewing machine potentiometer
|
|
Shipping By
|
DHLUPSFedexEMSHK Post
|
|
ROTATIONAL LIFE
|
15,000cycles
|
Packing &Delivery
Company Profile
About slide potentiometer
1) lever type:: C lever, CA-lever, B-lever
2) Taper: A,B,C.W
3) Resistance value: 5-500K
4)lever length:10mm,15mm,20mm,25mm
5)Pin number:3
Application
a) Audio mixer
b) Speaker
c) Microphone
d) Walkie-talkie
e) musical instrument
f) drones
g) earphones
h) amplifier
i) Dimmer adjustment
j) medical instrument
k) recorder
l) hair straigtener and curler and drier
m) sewing machines
n) juicer
o) electric fan
Packing
1 polybag
2 inner box
3 carton
