Product Details:
|
| Operating Force: | 0.2-2N | Stopper Strength: | 50N |
|---|---|---|---|
| Lever Wobble: | 2 | Bending Moment: | 25mN.m |
| Push Pull Strength: | 30N | Click Slip-out Force: | 0.2~2N |
| Lever Deviation: | 0.5max. | Total Resistance: | 5kΩ-2MΩ |
| Total Resistance Tolerance: | ±20％ | Resistance Taper: | A B C W |
| Insulation Resistance: | 100MΩ Min. At 250VDC | Withstand Voltage: | AC 300V |
| Reated Power: | 0.1W | Max Operating Voltage: | 200AC V |
| Residual Resistance: | 100kΩ | Sliding Life: | 15000 Cycles |
| Application: | Sound Console | ||
| High Light: | ROHS 50k Slide Potentiometer,50k Slide Potentiometer 20mm,20mm Travel Dual Gang Slide Potentiometer |
||

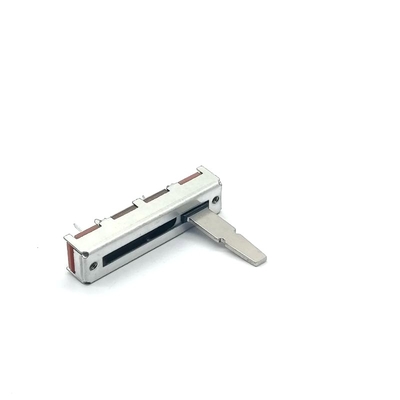

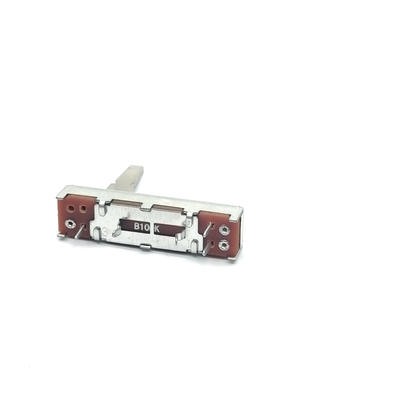

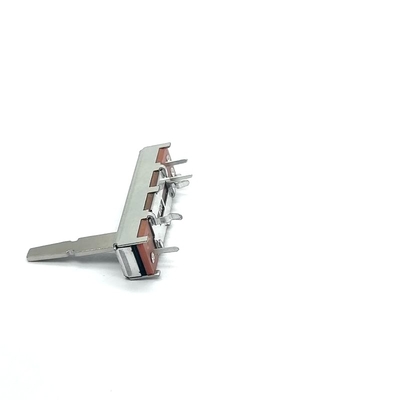

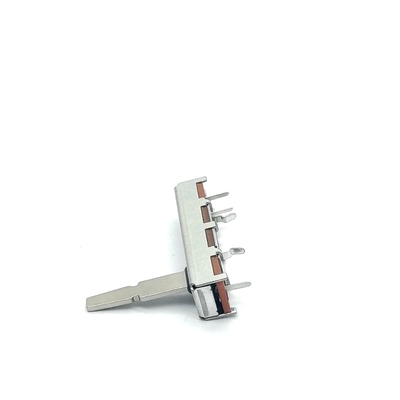

C2043N Metal Handle 20mm Travel 8.1 Mm Wide Used For Sound Console Earphone And Microphone
About slide potentiometer
1) Shaft type:: D shaft, R-shaft, K-shaft,Spline shaft
2) Taper: A,B,C.
3) Resistance value: 5-500K
4)Shaft length:10mm,15mm,20mm,25mm
5)Pin number:3
6)Gang number: 1,2,3,4
7)Pin type: N and P
Specification
|
item
|
value
|
|
Model Number
|
C2043N-RA3-B100K-0300
|
|
Type
|
Slide Potentiometer
|
|
Place of Origin
|
China
|
|
|
Guangdong
|
|
Brand Name
|
TQ
|
|
D/C
|
C2043N-RA3-B100K-0300
|
|
Technology
|
Carbon Film
|
|
Resistance
|
100k
|
|
Resistance Tolerance
|
20%
|
|
Rated Power
|
0.1W
|
|
Max. Operating Voltage
|
300v
|
|
Operating Temperature
|
-20~+70
|
|
Brand
|
mixer console slide potentiometer
|
|
Packaging
|
none
|
|
Power (Watts)
|
0.1w
|
|
Tolerance
|
±20%
|
|
Adjustment Type
|
Slide
|
|
Diameter
|
none
|
|
Length
|
none
|
|
Mounting Type
|
plug in
|
|
Termination
|
PC board
|
|
Package / Case
|
none
|
|
Built in Switch
|
None
|
|
Temperature Coefficient
|
0.05
|
|
Rotation
|
Not Applicable
|
|
Resistive Material
|
Carbon
|
|
Termination Style
|
PC Pin
|
|
Actuator Type
|
Flatted
|
|
Actuator Length
|
20mm
|
|
Actuator Diameter
|
Not Applicable
|
|
Bushing Thread
|
Not Applicable
|
|
Shaft Size
|
Not Applicable
|
|
Number of Turns
|
Not Applicable
|
|
Cross Reference
|
C2043N-RA3-B100K-0300
|
|
Product name
|
mixer console slide potentiometer
|
|
Key words
|
slide potentiometer
|
|
Service
|
OEM Customization
|
|
Certification
|
CE ROHS
|
|
Delivery Time
|
7~10 Days
|
|
Appliance
|
audio
|
|
PAYMENT
|
PaypalTTWestern Union
|
|
Withstand voltage
|
1 Minute AC 300
|
|
Shipping By
|
DHLUPSFedexEMSHK Post
|
|
Total Resistance
|
B100k
|
Packing &Delivery
Company Profile
About slide potentiometer
1) lever type:C lever, CA-lever, B-lever
2) Taper: A,B,C.W
3) Resistance value: 5-500K
4)lever length:10mm,15mm,20mm,25mm
5)Pin number:3
Application
a) Audio mixer
b) Speaker
c) Microphone
d) Walkie-talkie
e) musical instrument
f) drones
g) earphones
h) amplifier
i) Dimmer adjustment
j) medical instrument
k) recorder
l) hair straigtener and curler and drier
m) sewing machines
n) juicer
o) electric fan
Packing
1 polybag
2 inner box
3 carton
