Product Details:
|
| Total Resistance: | 1kΩ-1MΩ | Total Resistance Tolerance: | ±20％ |
|---|---|---|---|
| Resistance Taper: | A B C W | Insulation Resistance: | 100MΩ Min. At 250V DC |
| Withstand Voltage: | AC 300V | Rated Power: | 0.2W |
| Max.operating Voltage: | 200ACV | Residual Resistance: | 100kΩ |
| Operatng Force: | 0.3~2.5N | Stopper Strength: | 50N |
| Lever Wobble: | 2 | Bending Moment: | 25mN.m |
| Push Pull Strength: | 50N | Click Slip-out Force: | 0.2~2N |
| Lever Deviation: | 0.5 Max | Sliding Life: | 15000 Cycles |
| Application: | Sound Console | ||
| Highlight: | 500k Slide Potentiometer,Slide Potentiometer 30mm,30mm 1k Ohm Linear Potentiometer |
||

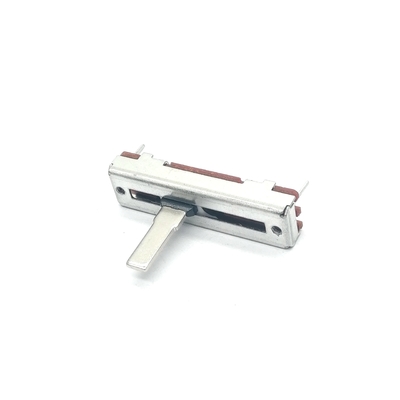

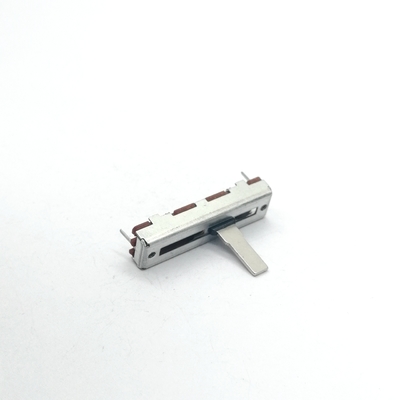

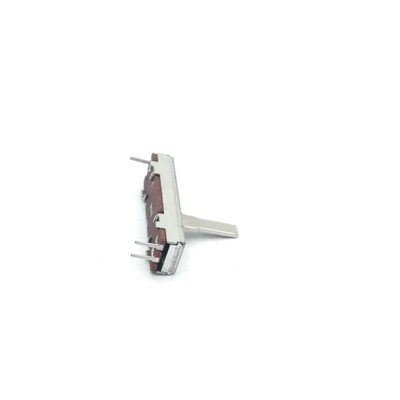

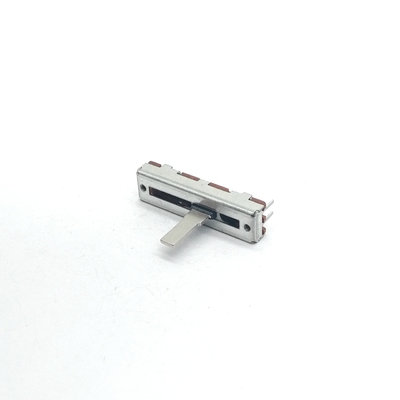

C3021N Metal Handle 30mm Travel 9 Mm Wide Used For Sound Console Earphone And Microphone
|
item
|
value
|
|
Model Number
|
C3021N
|
|
Type
|
Slide Potentiometer
|
|
Place of Origin
|
China
|
|
|
Guangdong
|
|
Brand Name
|
TQ
|
|
D/C
|
|
|
Technology
|
Carbon Film
|
|
Resistance
|
5kΩ-1MΩ
|
|
Resistance Tolerance
|
±20%(more than 1MΩ±30%)
|
|
Rated Power
|
.0.125W
|
|
Max. Operating Voltage
|
350ACV
|
|
Operating Temperature
|
-20°C to ±70°C
|
|
Brand
|
|
|
Power (Watts)
|
0.125W
|
|
Tolerance
|
±20%
|
|
Adjustment Type
|
Side Finger Adjustment
|
|
Diameter
|
|
|
Built in Switch
|
None
|
|
residual resistance
|
20Ω
|
|
resistance taper
|
A.B.C.W
|
|
Insulation Resistance
|
100mΩ min. at 500V DC
|
|
gang error
|
-40~0dB≤3dB
|
|
operating force
|
0.2~2N
|
|
stopper strength
|
50N
|
|
push pull strength
|
30N
|
|
lever deviation
|
0.5 max.
|
|
click slip-out force
|
0.3~2.5N
|
|
sliding life
|
15000 cycles
|
Application
Products are widely used in: Internet of things,aviation model, OA transaction machine, computer perimeter,electronic toys,game, car image, power tools, intercom, household appliances, home theater, adjustable lighting and medical equipment,instruments and other fields
Company Profile
Dongguan TianQian Electronics Co., Ltd. established in 2008, it is specialized in design, development and production of high precision components such as Rotary Potentiometer, Sliding Potentiometer, Foot Switch, Band Switch, AC Switch, Sensor, Encoder, Tact Switch and Connectors. The products are widely used in Dimmable Lighting, Audio Mixer, Home Appliances, Automobile, Multimedia, Audio Equipments, Instrument, Toys, Aviation Model and Communication Equipments. We have an area of 3,000 square meters of factory building. Our R&D team members have more than 20 years experience in the component industry. In order to meet the high quality demand from worldwide customers, we widely use automated production lines which can output more than 80% of annual production capacity. It takes pride in the achievement that we have been the key supplier of JVC, Brother, , Midea, Microsoft, Honeywell, Sennheiser, Primax and GGEC...etc. With the consistent enterprise principles "Striving Excellence" & "Quality Assurance", we hope both parties can establish a mutual benefit relationship and create a win-win situation
About slide potentiometer
1) lever type:: C lever, CA-lever, B-lever
2) Taper: A,B,C.W
3) Resistance value: 5-500K
4)lever length:10mm,15mm,20mm,25mm
5)Pin number:3
Application
a) Audio mixer
b) Speaker
c) Microphone
d) Walkie-talkie
e) musical instrument
f) drones
g) earphones
h) amplifier
i) Dimmer adjustment
j) medical instrument
k) recorder
l) hair straigtener and curler and drier
m) sewing machines
n) juicer
o) electric fan
Packing
1.polybag
2 inner box
3 carton
How does your company do regarding quality control?
Each year we have quality supervision department inspection, and issue inspection reports, each batch of goods will be strictly controlled, the company's internal will have qualityregulation, to ensure that every batch of products qualified and best quality.
Dongguan TianQian electonics factory offer you :
1: factory direct price.
2:nice quality.
3:small order welcome
4: online payment.
5: after sales services 24/7.
We had the honor to serve many of the famous big companies all over the world.
welcome to be one of our top VIP customers.
we accept support OEM drder.
we believe that “the quality is the soul of an enterprise”.
we believe in win-win situation.
