Product Details:
|
| Product Name: | R2410 Ratory Potentiometer | Max. Current: | 1A |
|---|---|---|---|
| Mechanical Life: | 15000 Cycles | Rotational Torque: | 2~20mN.m(20~200gf.cm) |
| Switch Working Angle: | 50°±10° | Total Resistance: | 10KΩ~1MΩ |
| Rated Power: | B:0.1W Other Than B: 0.05W | Resistance Taper: | A,B |
| Max. Voltage: | 125V AC | Total Rotational Angle: | 300°±5° |
| Rotation Stopper Strength: | 0.7N.m(5kgf.cm) | Bushing Nut Tighting Strength: | 0.7 N.m(7kgf.cm ) |
| Total Resistance Tolerance: | ±20%(more Than 1MΩ±30%) | Max.operating Voltage: | B:100V AC Other Than B:50V AC |
| High Light: | 125V AC Continuous Rotary Switch,Continuous Rotary Switch 10000ohm,10000ohmCTS Rotary Switch |
||

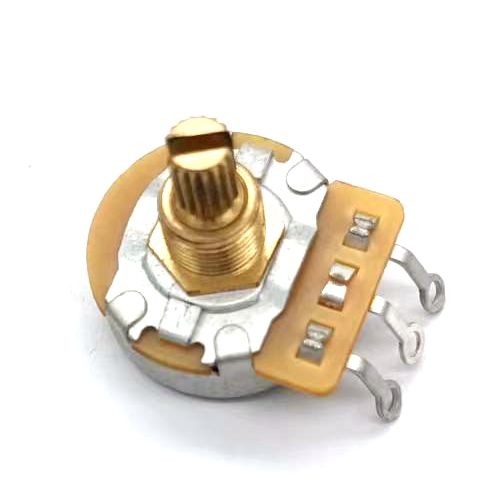

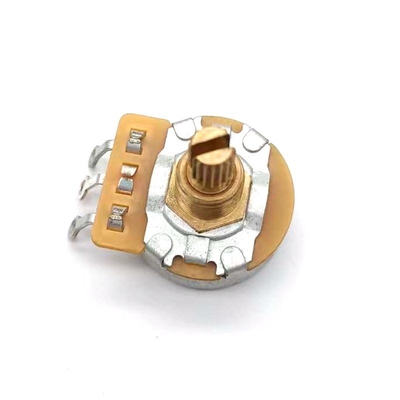

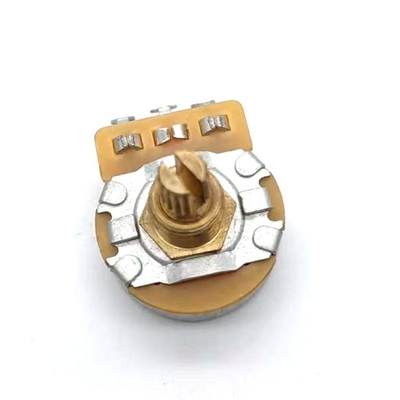

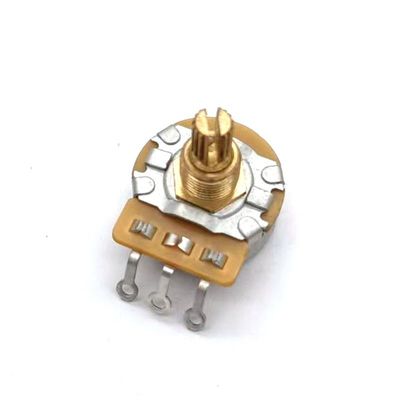

R2410NB1 Rotary Switch CTS Structure For Electric Guitar Switch
A potentiometer is a three-terminal resistor with a sliding or rotating contact that forms an adjustable voltage divider.[1] If only two terminals are used, one end and the wiper, it acts as a variable resistor or rheostat.
The measuring instrument called a potentiometer is essentially a voltage divider used for measuring electric potential (voltage); the component is an implementation of the same principle, hence its name.
|
item
|
value
|
|
Certification
|
CE
|
|
Place of Origin
|
China
|
|
|
Guangdong
|
|
Brand Name
|
TQ
|
|
Model Number
|
R2410NB1
|
|
Max. Current
|
1A
|
|
Max. Voltage
|
125V AC
|
|
Mechanical Life
|
15000 Cycles
|
|
Total rotational angle
|
300°±5°
|
|
Rotational torque
|
2~20mN.m(20~200gf.cm)
|
|
Rotation stopper strength
|
0.7N.m(5kgf.cm)
|
|
switch working angle
|
50°±10°
|
|
Bushing nut tighting strength
|
0.7 N.m(7kgf.cm )
|
|
total resistance
|
10KΩ~1MΩ
|
|
total resistance tolerance
|
±20%(more than 1MΩ±30%)
|
|
rated power
|
B:0.1W other than B: 0.05W
|
|
max.operating voltage
|
B:100V AC other than B:50V AC
|
|
resistance taper
|
A,B
|
|
residual resistance
|
R≥250KΩ 0.01% max.of total resistance 250KΩ＞R＞10KΩ 20Ω max.10KΩ≥R 10Ω max
|
|
insulation resistance
|
more than 100MΩ at DC 500V
|
|
withstand voltage
|
for 1 minute or more at DC 250V
|
|
switch rating
|
125 VAC 1A
|
|
switch life
|
10000 cycles
|
|
rotational life
|
15000 cycles
|
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
Dongguan TianQian Electronics Co., Ltd. established in 2008, it is specialized in design, development and production of high precision components such as Rotary Potentiometer, Sliding Potentiometer, Foot Switch, Band Switch, AC Switch, Sensor, Encoder, Tact Switch and Connectors. The products are widely used in Dimmable Lighting, Audio Mixer, Home Appliances, Automobile, Multimedia, Audio Equipments, Instrument, Toys, Aviation Model and Communication Equipments. We have an area of 3,000 square meters of factory building. Our R&D team members have more than 20 years experience in the component industry. In order to meet the high quality demand from worldwide customers, we widely use automated production lines which can output more than 80% of annual production capacity. It takes pride in the achievement that we have been the key supplier of JVC, Brother, IKEA, Midea, Microsoft, Honeywell, Sennheiser, Primax and GGEC...etc. With the consistent enterprise principles "Striving Excellence" & "Quality Assurance", we hope both parties can establish a mutual benefit relationship and create a win-win situation.
Certifications
Application
Products are widely used in: Internet of things,aviation model, OA transaction machine, computer perimeter,electronic toys,game, car image, power tools, intercom, household appliances, home theater, adjustable lighting and medical equipment,instruments and other fields
