Diameter 26mm Rotary Band 0.3A Multi Position Rotary Switch For Fans Ovens

Large Image : Diameter 26mm Rotary Band 0.3A Multi Position Rotary Switch For Fans Ovens

Product Details:

Place of Origin:	China
Brand Name:	TQ
Certification:	CE,ISO
Model Number:	SR26

Payment & Shipping Terms:

Minimum Order Quantity:	1000 pieces
Price:	USD 0.6 -1 per piece
Packaging Details:	blister bag,carton
Delivery Time:	25 days
Payment Terms:	T/T, Western Union.Trade Assurance
Supply Ability:	50000 pieces per day

Contact Now

Diameter 26mm Rotary Band 0.3A Multi Position Rotary Switch For Fans Ovens

Description

Max. Voltage::	Applying 500V AC Measure For 1 Minute	Max. Current:	125V AC 0.3A
Mechanical Life:	15000 Cycles	Contact Resistance:	Less Than 50mΩ
Switch Power:	125V AC 0.3A	Insulation Resistance:	100MΩ(min)
Voltage Proof:	Applying 500V AC Measure For 1 Minute	Operating Force:	0.5~1.2kgf.cm/1.3~1.7kgf.cm
Rotation Stopper Strength:	More Than 5kgf.cm	Push-pull Strength Of Shaft:	More Than 8kgf.cm
Shaft Wobble:	0.7*L/30mm Max.	Operating Life:	15000cycles
Application:	Fans, Ovens, Heaters
Highlight:	26mm Rotary Band Switch , Rotary Band Switch 0.3A , 0.3A Multi Position Rotary Switch

SR26 26mm Diameter All-Plastic Sealed Multi-Pole Multi-Position Band Rotary Switch For Fans, Ovens, Heaters

Description

Model Number:: SR26

Max. Current:: 125V AC 0.3A

Max. Voltage:: Applying 500V AC measure for 1 minute

Mechanical Life:: 15000 cycles

Contact resistance:: Less than 50mΩ

Switch power:: 125V AC 0.3A

Insulation resistance:: 100MΩ(min)

Voltage proof:: Applying 500V AC measure for 1 minute

Operating force:: 0.5~1.2kgf.cm/1.3~1.7kgf.cm

Rotation stopper strength:: more than 5kgf.cm

Push-pull strength of shaft:: more than 8kgf.cm

shaft wobble:: 0.7*L/30mm Max.

Operating life:: 15000cycles

application:: fans, ovens, heaters

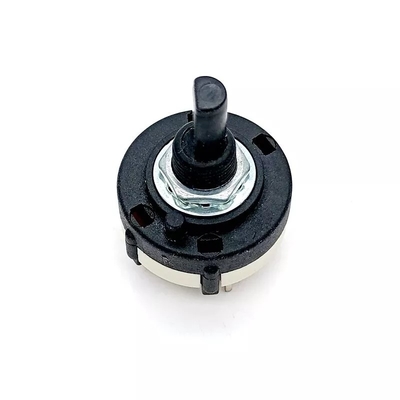

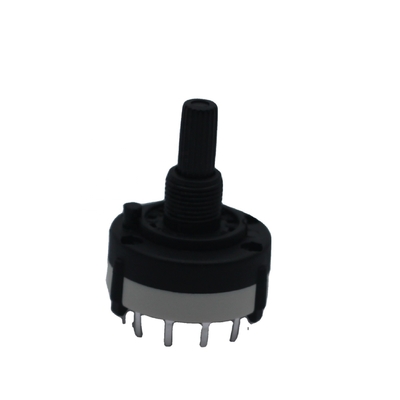

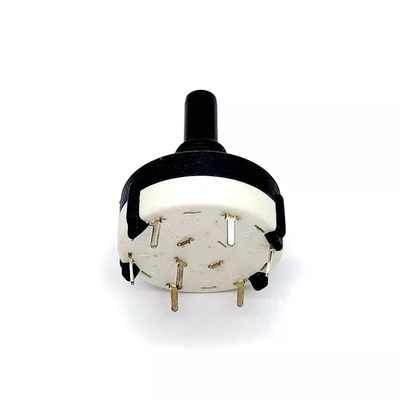

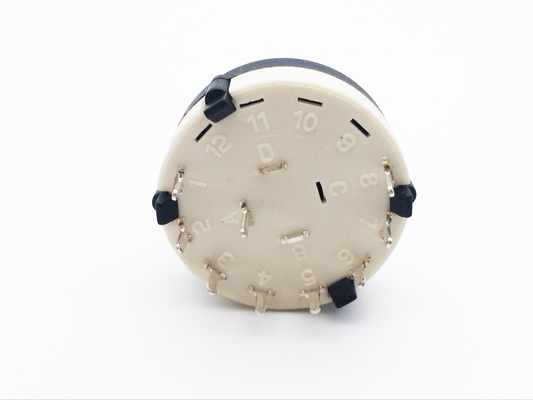

Diameter 26mm Rotary Band 0.3A Multi Position Rotary Switch For Fans Ovens 1

Application

They are widely used in household appliances, electric force, telecommunications, machine tool, vessel, textile, printing, Mining machine, Mustic Instrument, etc.

Certification&Exhibition

Workshop

Cooperation partner

FAQ

1. who are we?
We are based in Guangdong, China, start from 2013,sell to North America(15.00%),Western Europe(10.00%),Central America(10.00%),Eastern Europe(10.00%),South America(10.00%),Oceania(5.00%),Eastern Asia(5.00%),Northern Europe(5.00%),Southern Europe(5.00%),Africa(5.00%),Southeast Asia(5.00%). There are total about 301-500 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
potentiometer,encoder,switch,Foot Switch,Rotary Switch

4. why should you buy from us instead of other suppliers?
Our R&D team have more than 20 years experience in the component industry.Our customers through all over the world,such as Brother,,Microsoft,Honeywell etc. The products widely used in aviation model,communication equipment, adjustable lighting.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash;Trade Assurance
Language Spoken:English,Chines
