Product Details:
|
| Total Resistance: | 5KΩ~1MΩ | Total Resistance Tolerance: | ±20% (More Than 1MΩ: ±30%) |
|---|---|---|---|
| Rated Power: | 0.2W | Max Operating Voltage: | 250VAC, 10A |
| Withstand Voltage: | DC 500V, 1 Minute | Resistance Taper: | A, B |
| Rotational Life: | 15,000 Times | Total Rotational Angle: | 270°± 5° |
| Application: | Dimmer,governor | ||
| High Light: | 10k Potentiometer Volume Control,250VAC Dpdt Push Pull Pot,volume control 6 pin 250VAC |
||

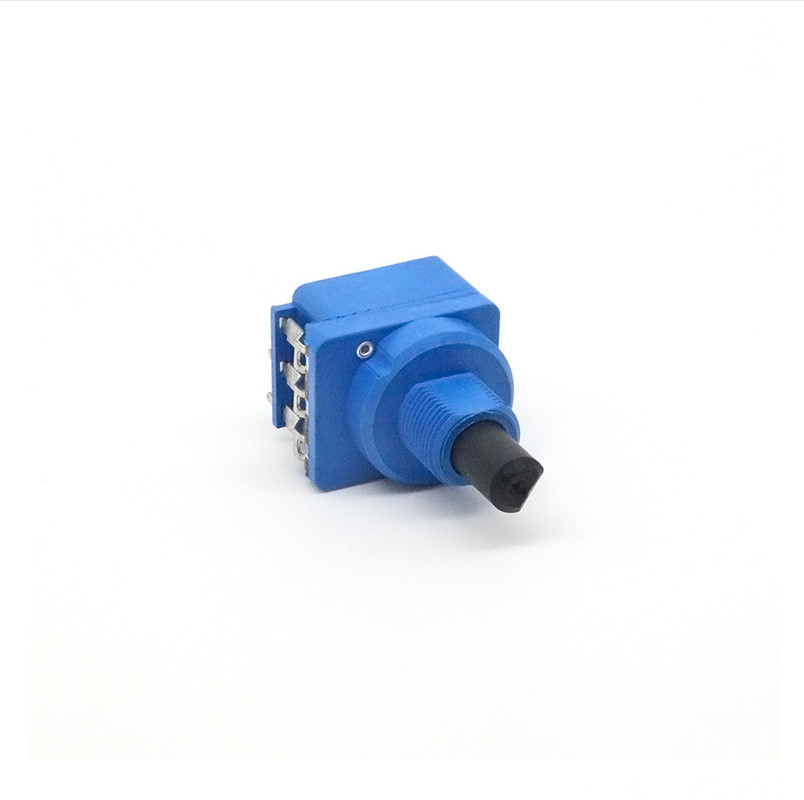

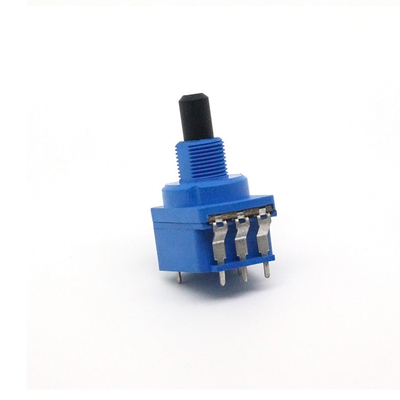

16mm rotary 10A Push switch potentiometer for adjusting dimmer and speed
A potentiometer is a three-terminal resistor with a sliding or rotating contact that forms an adjustable voltage divider.[1] If only two terminals are used, one end and the wiper, it acts as a variable resistor or rheostat.
The measuring instrument called a potentiometer is essentially a voltage divider used for measuring electric potential (voltage); the component is an implementation of the same principle, hence its name.
Potentiometers are commonly used to control electrical devices such as volume controls on audio equipment. Potentiometers operated by a mechanism can be used as position transducers, for example, in a joystick. Potentiometers are rarely used to directly control significant power (more than a watt), since the power dissipated in the potentiometer would be comparable to the power in the controlled load.
About rotary potentiometer
1) Shaft type:: D shaft, R-shaft, K-shaft,Spline shaft
2) Taper: A,B,C.
3) Resistance value: 5-500K
4)Shaft length:10mm,15mm,20mm,25mm
5)Pin number:3
6)Gang number: 1,2,3,4
7)Pin type: N and P
Application
a) Audio mixer
b) Speaker
c) Microphone
d) Walkie-talkie
e) musical instrument
f) drones
g) earphones
h) amplifier
i) Dimmer adjustment
j) medical instrument
k) recorder
l) hair straigtener and curler and drier
m) sewing machines
n) juicer
o) electric fan
p) Electric car
q) Plane
Packing
1 polybag
2 inner box
3 carton
UPS: special express for North America,need 3-5 working days
DHL: normally 3-5 business days could reach your side
FEDEX: normally 3-10 business days could reach US and European
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
We have got many certificates for our management system ISO-90001 and IATF16949 for potentiometer,encoder and switch.In the same time we have got certification from CE,ROHS for our products
Application
Products are widely used in: Internet of things,aviation model, OA transaction machine, computer perimeter,electronic toys,game, car image, power tools, intercom, household appliances, home theater, adjustable lighting and medical equipment,instruments and other fields
Workshop
We have three factories located in Dongguan and Henan for making potentiometer,encoder and switch. There are 350 workers and staff in the factories,10 R&D skilled staff and 30 QC and QA persons. There are 12 production lines which produce 5 million pcs per day. We can meet your order demand for the larger quantity. The quality and delivery can be guaranteed
Why Choose us
1: Factory direct sales price
2: High quality and fast delivery
3: Lower MOQ is acceptable
4: Multi choice payment
6: Good after-sale service
7. Three factories for potentiometer,encoder and switch
8. Location near Hong Kong . Transportation is very convenient
We have many famous big brand customers all over the world, such as: Presonus Ikea, Brother, Microsoft, Media,etc
OEM and ODM are both acceptable
FAQs:
Q: what is your MOQ for this item?
A: MOQ is 1000pcs, we still can accept lower MOQ, but the price is a little higher
Q: Can I get some samples?
A: Sure, Sample order is available.
Q: what about lead time?
A: 25 days after full payment received.
Q: Terms of payment?
A: T/T, credit card, western union, cash, Money Gram
Q: My item was damaged in shipping?
A: Our parts are carefully packaged to prevent damage in shipping.
16mm Conductive Plastic Matel Shaft Potentiometer Push Pull Switch Rotary Potentiometer
