Product Details:
|
| Model: | SM100N | Sliding Travel: | 100mm |
|---|---|---|---|
| Resistance: | 10K | Resistance Tolerance: | ±20% |
| Rated Power: | 0.5W | Max. Operating Voltage: | DC 10V AC 200V |
| Operating Temperature: | -10℃~60℃ | Power (Watts): | 0.5w |
| Tolerance: | ±20% | Adjustment Type: | Slide |
| Diameter: | 100 | Mounting Type: | DIP |
| Package / Case: | Metal | Temperature Coefficient: | ±150ppm/°C |
| Termination Style: | PC Pins | Actuator Type: | Motor |
| Actuator Length: | 100±0.5mm | Actuator Diameter: | 18mm |
| Scope: | SM Type | Nominal Total Resistance And Tolerance: | 10kΩ±20% |
| Power Rating: | B Taper:0.5w Other Typer:0.25w | Rated Voltage: | DC10V AC 200V |
| Residual Resistance: | 500Ω Max | Slide Noise: | 68mVp-p Less Than |
| Insulation Resistance: | 100MΩ Or More | Dielectric Strength: | Without Arcing Or Breakdown |
| Conductive Resistance: | 1kΩ MAX | ||
| High Light: | SM100N Motorised Linear Potentiometer,Motorised Linear Potentiometer 10k,10k Ohm Slide Potentiometer |
||

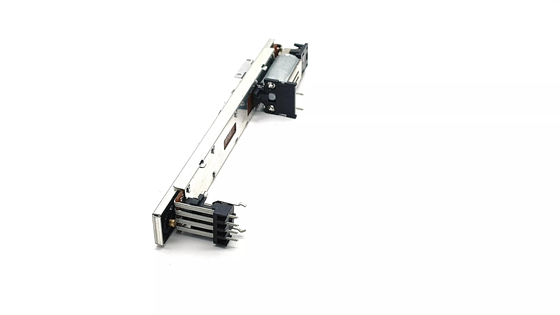

SM100N slide motor potentiometer for audio desk mixer console
specification
|
Company Introduction
Dongguan TianQian Electronics Co., Ltd.established in 2013,it is specialized in design, development and production of high precision components such as Rotary Potentiometer, Sliding Potentiometer, Foot Switch, Band Switch, AC Switch, Sensor, Encoder, Tact Switch and Connectors. The products are widely used in Dimmable Lighting, Audio Mixer, Home Appliances, Automobile, Multimedia, Audio Equipments, Instrument, Toys, Aviation Model and Communication Equipments.
Applicaiton
We have a full range of special potentiometers, encoders and switches ,which are widely used for mixers,instruments, effects, car audio,air condition, lithgting control and household appliances contral panels ,all products are welcome customized.
FAQ
Q1: When can I get the quotation ?
A: We are online all day, so you can get quotation within 24h.
Q2: Can I get free samples?
A: Yes, after confirming the price, we can provide 5-20 free samples.
Q3: When can I get the samples?
A: It depends on the express, generally 3-10 days.
Q4: Can you accept small order?
A: Yes, we will try our best to help you with your business.
Q5: What's the lead time of mass production?
A: Generally 2-4weeks. We will inform you the delivery time after receiving your payment.
Our advantage
* Cost Efficient manufacturer
* 100% in-house production facilities
* Fully customized design capabilities
* Industrial level of manufacture
* Powerful Team Work to implement customer's new project
