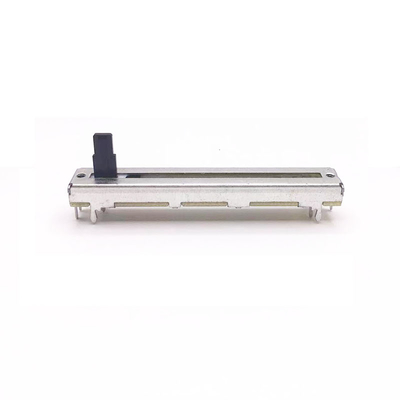

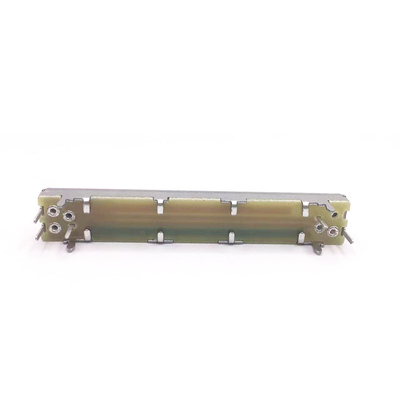

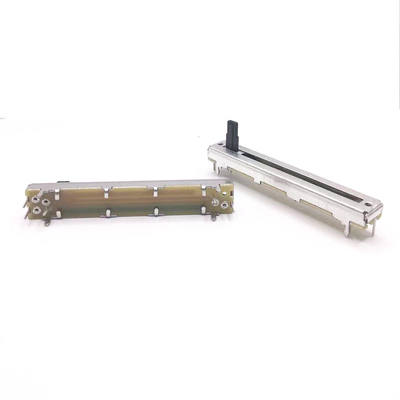

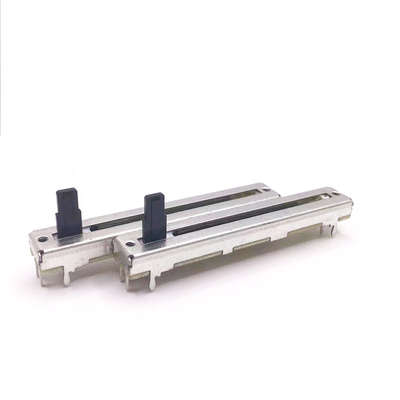

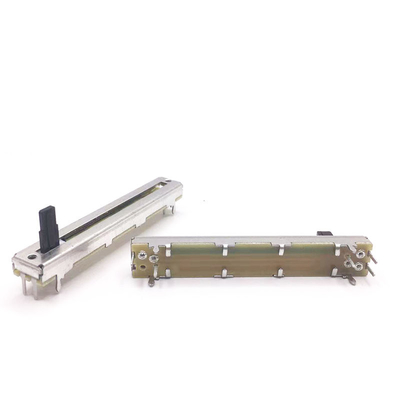

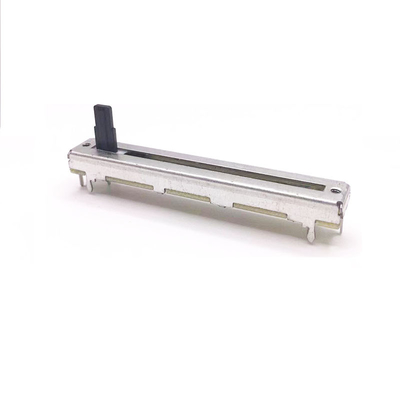

Product Details:
|
| Material: | Carbon Film+Metal | Resistance: | ±20% |
|---|---|---|---|
| Rated Power:: | Taper B:0.25W | Max. Operating Voltage:: | Taper B:AC 200V |
| Durability: | 150000 Cycles | Lever: | 10mm ,could Customize |
| MOQ: | 1000pcs | Payment Term: | T/T,Alipay |
| Lead Time: | 15-20 Work Days | ||
| High Light: | 10k Linear Slide Potentiometer,Carbon Film Linear Slide Potentiometer,B10k Potentiometer With Switch |
||
Mechanical Specification:
Operating force:0.3-2.5N(30-250gf)
Stopper Strength:50n(5kgf) Measuring point:5mm
Lever wobble:2(2*L)/20mm-p-p max.(L:Lever length both side)
Bending moment:25mN.m(250gf.cm)
Push Pull Strenth:50N(5kgf)
Click slip-out force:0.2-2n(20-200gf)
Lever Deviation:0.5max.(one side)
Sliding life:15000 cycles
| Model Number | C4521SG |
| Technology | Carbon Film |
| Resistance | 5k-2M |
| Resistance Tolerance | ±20% |
| Max. Operating Voltage | 1K-2M |
| Total resistance tolerance | ±20%(more than 1M Ω±30%) |
| Max Voltage | 1 minute at 200V |
| Resistance taper | A,B,C,W |
| Insulation resistance | more than 100M Ω at DC 500V |
| Withstand voltage | for 1 minute or more at DC 500V |
| Rotational Life | 15000 times |
