Product Details:
|
| Products: | 18mm Rotary Logic Switch | Diameter: | 18mm |
|---|---|---|---|
| Shaft Type: | Plastic D Type | Rotational Angle: | 360 Degree |
| Detent Numbers: | 16 Detents | Rotational Torque: | 30mN.m-70mN.m |
| Shaft Pull Push Sthength: | 10KGf For 10 Seconds | Rotational Life: | 30000 Cycles |
| Heat Resistance: | 85 °c | Waterproof: | IP64 |
| Highlight: | 18mm Waterproof Rotary Encoder switch,Waterproof Rotary Encoder IP64,IP64 Double Rotary Encoder swtich |
||

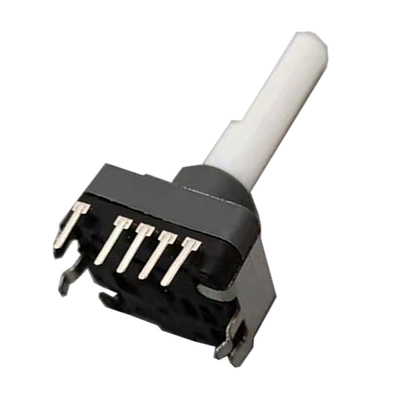

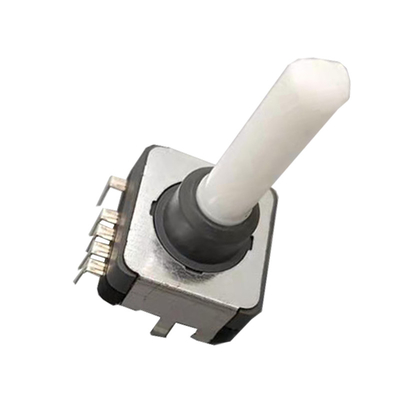

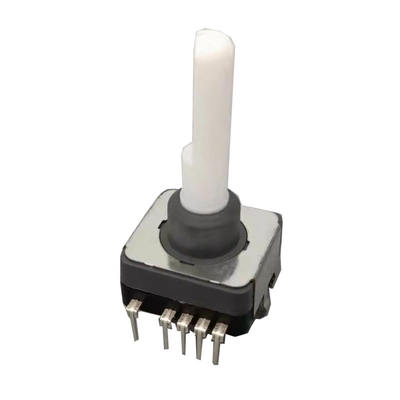

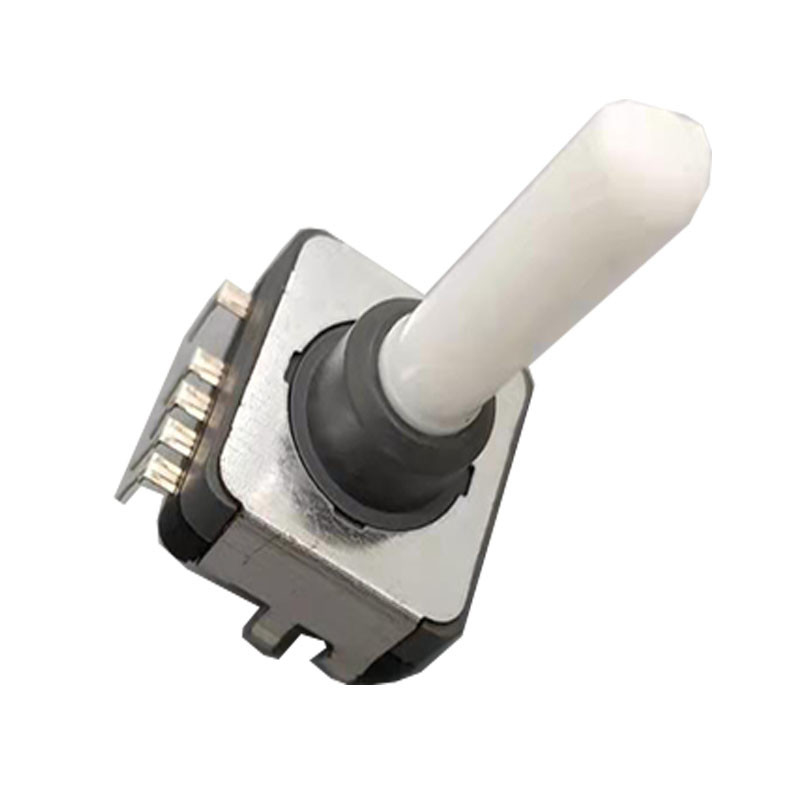

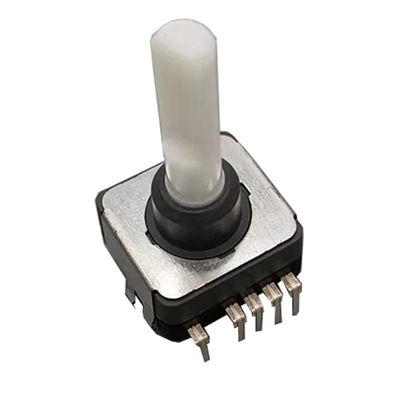

18mm Waterproof IP64 plastic shaft microscopic current circuits rotary logic switch
Quick Detail:
Description:
This specification applies to 18mm size low-profile rotary logic switch for microscopic current circuits used in electronic equipment.
Construction: Dimensions Refer to attached drawing.
Apperance: Every part should be finished not to bring about ruse,flow crack and bad plating which interfere with smooth operation .
Specifications:
| Tech Date |
||
| Model | LR18 rotary logic switch | |
| Shaft Diameter | 18mm |
|
| ShaftType |
D |
|
| Rotational life |
30000 cycles |
|
| Rotational angle | 360 degree |
|
| Rated Voltage |
DC10V |
|
| Usage | washing machines, electronic equipment | |
| Waterproof level | IP64 |
|
| Heat resistance | 85 °c |
|
| Detent numbers |
16 |
|
| Shaft strength |
300kf for 15 seconds in horizontal direction | |
| Relative humidity | 25% to 85% |
|
| Certification |
CE, RoHS, FCC |
|
| Housing Color |
Grey |
|
| Net Weight |
7g | |
| package |
carton with blister inner box | |
Applications:
Widely used in washing machines,many other electronic equipment
Exhibition
Certificates
We have got many certificates for our management system ISO-90001 and IATF16949 for potentiometer,encoder and switch.In the same time we have got certification from CE,ROHS for our products
Why Choose us
1: Factory direct sales price
2: High quality and fast delivery
3: Lower MOQ is acceptable
4: Multi choice payment
6: Good after-sale service
7. Three factories for potentiometer,encoder and switch
8. Location near Hong Kong . Transportation is very convenient
We have many famous big brand companies all over the world, such as: Presonus , Brother, Microsoft, Media,etc
OEM and ODM are both acceptable
FAQ
1. How can we guarantee quality?
Pre-production sample before mass production;
Final Inspection before shipment;
2.what product does Tianqian electronic supply?
Potentiometer,encoder,switch,Foot Switch,Rotary Switch,logic switch,guitar switch
3. why choose us?
Three factories in China with fast delivery and good quality.
R&D team have more than 20 years experience in the component industry.
Famous band customers: Brother,,Microsoft,Honeywell etc.
4. what services can we provide?
OEM/ODM
5.Payment terms: T/T,L/C,Western Union,Cash.
