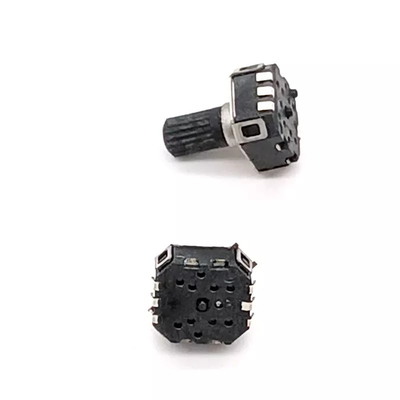

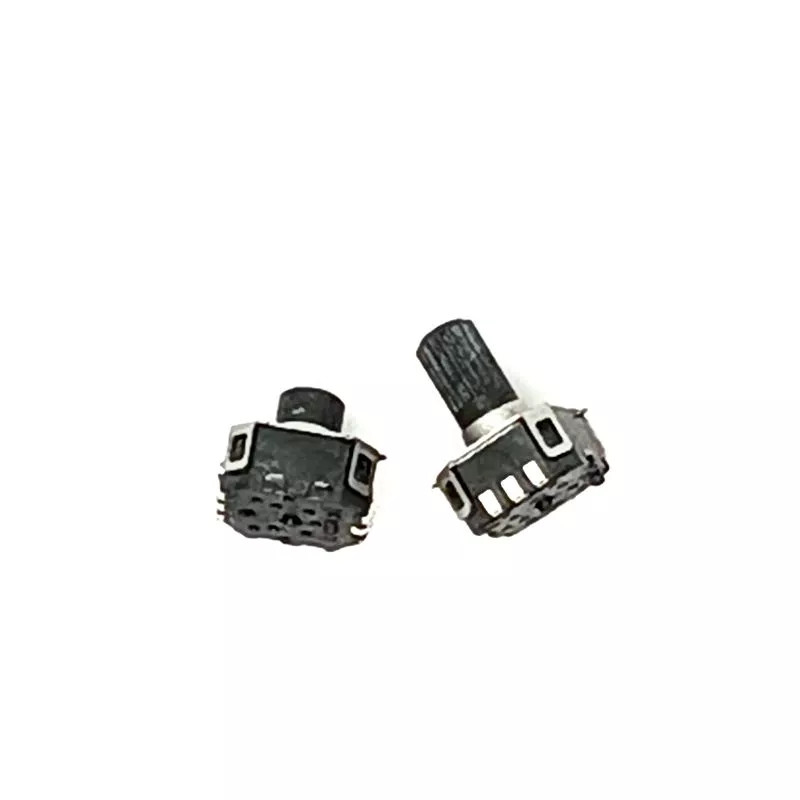

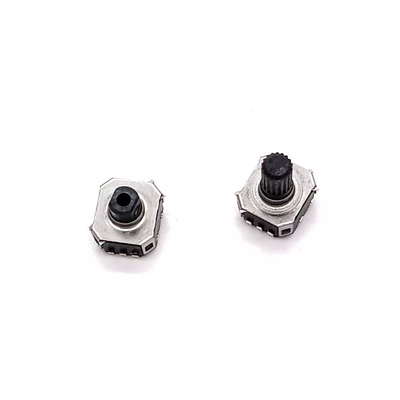

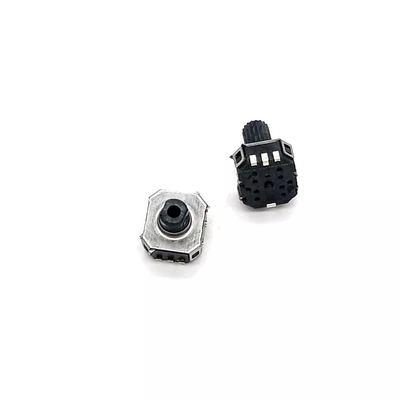

EC06 360 Degree Rotary Encoder 6mm Rotary Pulse Encoder Loudspeaker

Large Image : EC06 360 Degree Rotary Encoder 6mm Rotary Pulse Encoder Loudspeaker

Product Details:

Place of Origin:	CHINA
Brand Name:	TQ
Certification:	CE
Model Number:	EC06

Payment & Shipping Terms:

Minimum Order Quantity:	500 piece
Price:	USD 0.46~1.8 piece
Packaging Details:	Carton with blister box inside
Delivery Time:	25 working days
Payment Terms:	T/T, Western Union
Supply Ability:	100000+piece+per day

Contact Now

EC06 360 Degree Rotary Encoder 6mm Rotary Pulse Encoder Loudspeaker

Description

Model Number:	EC06	Certification:	CE,ISO
Pulse Number:	12/24	Number Of Clicks:	Standard
Application:	Auto,speaker Audio	Total Rotational Angle:	360 Degree
Rotational Torque:	50~200gf.cm	Operational Temperature:	-30℃~80℃
Dielectric Voltage:	1 Minute At AC 110V	Insulation Resistance:	10MΩ 1 Minute At DC50V
Rating Power:	DC5V 0.5mA	Rotational Life:	30000 Times Min
High Light:	EC06 360 Degree Rotary Encoder , 360 Degree Rotary Encoder 6mm , 6mm Rotary Pulse Encoder

EC06 6mm 360 Rotary Encoder For Loudspeaker Speaker Box Sound Box Juicer Audio

Porducts feature

type: encoder
working principle:incremental
reaout principle:contact
operating system:contact brush type
singnal output:comlementary push-pull output

Specification

Item	value
Certification	CE,ISO
Function	Rotary encoder
Place of Origin	China
Brand Name	TQ
Model Number	E06
Max. Current	5mA
Product name	6MM ENCODER
Material
Type	Incremental
Application	auto,speaker audio
Hollow Shaft Diameter	6mm
pulse number	6
Number of clicks	12
Total rotational angle	360 degree
Rotational Torque	10~40gf.cm
Operational temperature	-30°C to 80°C
Rating power	DC5V 0.5mA
Insulation resistance	50MΩ 1 minute at DC250V
Dieelectric voltage	1 minute at AC300v
Rotational life	30000 times Min

Switch circuit and number of pulse	Single pole and single throw (push on)
Travel of switch	0.1+0.1/-0mm
Operating force of switch	250±100gf
Rated capacity	DC 5V 10mA
Contact resistance	100mΩ max
Push operating life	20,000 times

EC06 360 Degree Rotary Encoder 6mm Rotary Pulse Encoder Loudspeaker 0

About Product

installationg form:axie sleeve type
brand:oem or TQ
axonia:servo installation type
transport package:reel
origin:china

Application

Certifications&Exhibition

Workshop

Cooperation partner

FAQ

1.Low MOQ: 500~1000PCS
2.New design Accepted: As your requirement
3.Good Service: Customer as God
4.Good Quality: Strict quality control and good reputation
5.Fast&Cheap Delivery: Big discount from express agent (Long-term Contract)
