Product Details:
|
| Model Number: | SR38 | Max. Current: | 0.5A |
|---|---|---|---|
| Max. Voltage: | 500V | Mechanical Life: | 10000 Cycles |
| Pole: | 4 Poles | Positions: | 2~12 Positions |
| Insulation Resistance: | ≥100mΩ | Contact Resistance: | ≤25mΩ |
| Rotation Stopper Strength: | >5kgf.cm | Shaft Wobble: | 0.7*L/30mm Max |
| Operating Force: | 0.5~1.5kgf.cm | Shaft Play In Axial: | 0.8mm |
| Use: | Transducer | ||
| High Light: | 0.8mm Continuous Rotary Switch,0.5A 4 Pole 2 Position Rotary Switch,0.5A 4 pole 2 position switch |
||

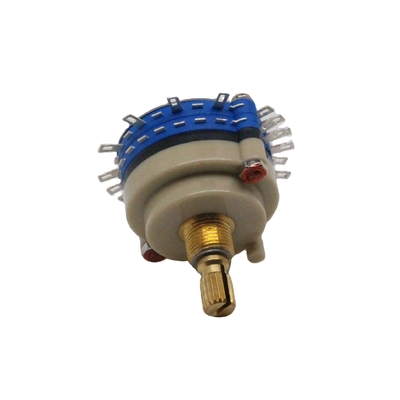

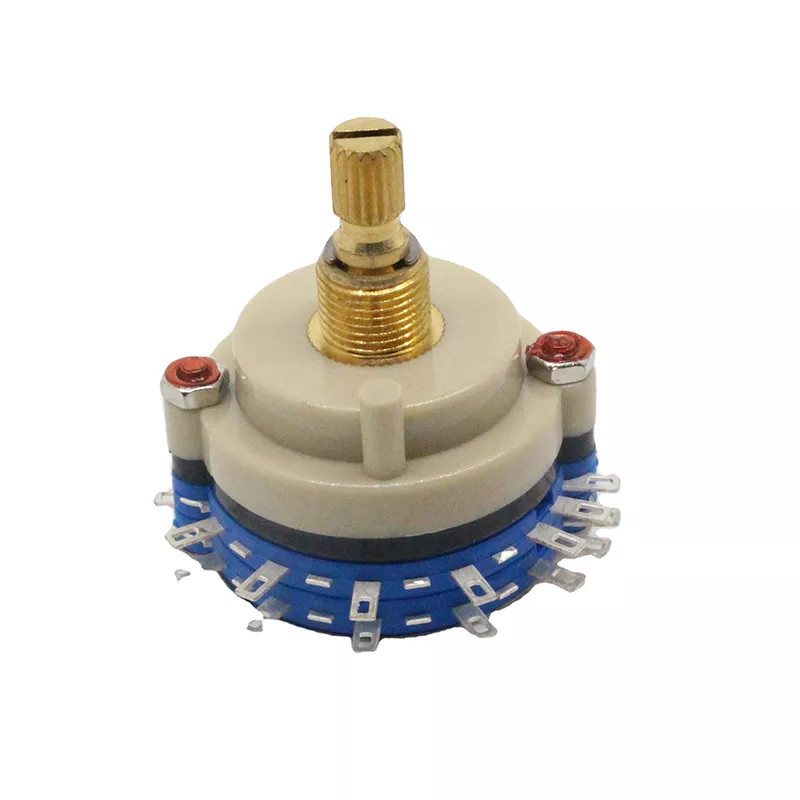

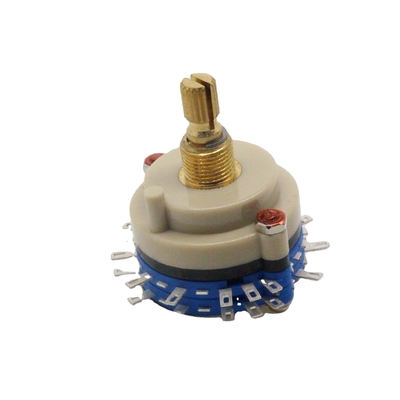

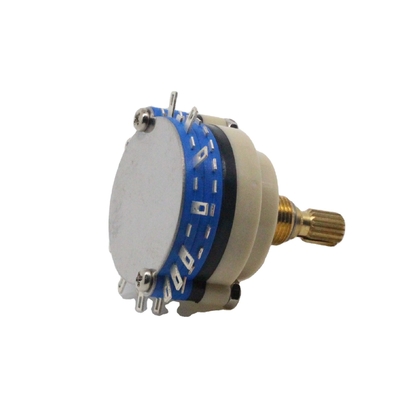

SR38 2 Pole 23 Step Band Switch 6 Section 4 Position Metal Shaft Rotary Switches
|
item
|
value
|
|
Certification
|
Rohs CE
|
|
Whether the smart
|
No
|
|
Place of Origin
|
China
|
|
|
Guangdong
|
|
Brand Name
|
TQ
|
|
Model Number
|
SR38
|
|
Max. Current
|
0.5A
|
|
Max. Voltage
|
500V DC
|
|
Mechanical Life
|
10000 Cycles
|
|
torque
|
section2 ±1kg
|
|
rated power
|
DC 30V 0.5A
|
|
Contact resistance
|
25mΩ Max.
|
|
InsulatIon resistance
|
DC 500 V 100mΩ Min.
|
|
withstand voltage
|
500V
|
Company Introduction
We have an area of 3,000 square meters of factory building. Our R&D team members have more than 20 years experience in the component industry. In order to meet the high quality demand from worldwide customers, we widely use automated production lines which can output more than 80% of annual production capacity. It takes pride in the achievement that we have been the key supplier of JVC, Brother, IKEA, Midea, Microsoft, Honeywell, Sennheiser, Primax and GGEC...etc. With the consistent enterprise principles "Striving Excellence" & "Quality Assurance", we hope both parties can establish a mutual benefit relationship and create a win-win situation.
Usage
We have a full range of special potentiometers, encoders and switches ,which are widely used for mixers,instruments, effects, car audio,air condition, lithgting control and household appliances contral panels ,all products are welcome customized.
FAQ
Can I use a potentiometer to control LED brightness?
The Arduino analog input function has 10-bit precision, that is, it can convert a voltage signal of 0 to 5V into an integer form of 0 to 1024. Utilize the analogRead() function to read input voltage values by the potentiometer, and then use the analogWrite() function to control the brightness of the LED light.
Can potentiometers be variable resistor?
The potentiometer is the most common variable resistor. It functions as a resistive divider and is typically used to generate a voltage signal depending on the position of the potentiometer.
Our Advantage
1.Strictly quality control before leave factory
2. Quality guarantee within one year
