Product Details:
|
| Model Number: | LR18-N6-L29F15.7-D1-16CC | Max. Current: | 1mA |
|---|---|---|---|
| Max. Voltage: | DC 10 V MAX | Mechanical Life: | 30000 Cycles |
| Contact Resistance: | 10Ω~100Ω | Withstand Voltage: | AC 50 V |
| Insulation Resistance: | More Than 50 MΩ At DC250V | Waterproof: | IP64 |
| APPLICATION: | Washing Machine | ||
| High Light: | DC250V Continuous Rotary Switch,Rotary Switch 5 Pin IP64,Washing Machine Rotary Switch 5 Pin IP64 |
||

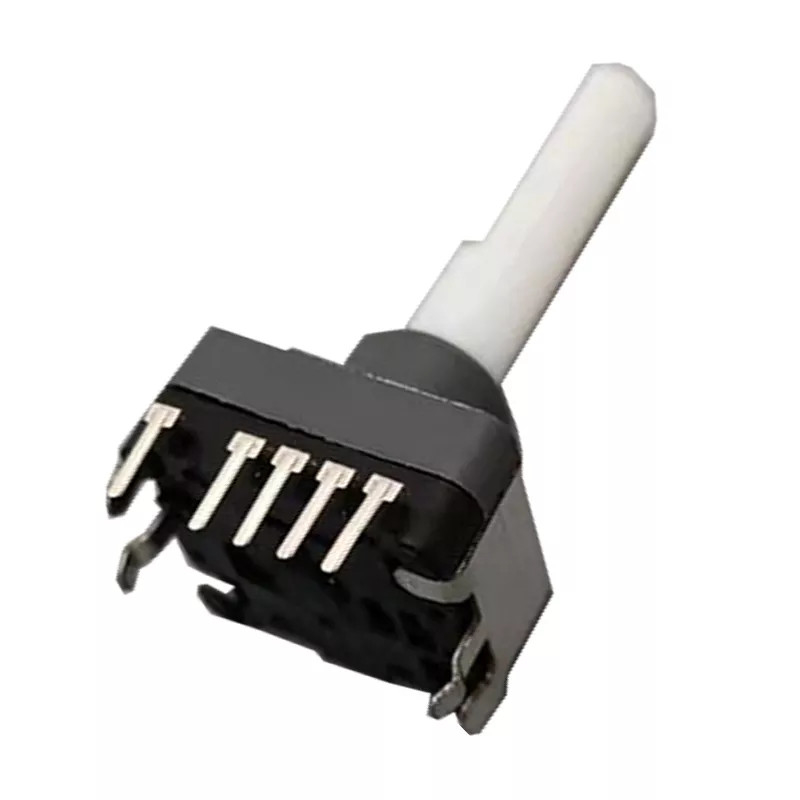

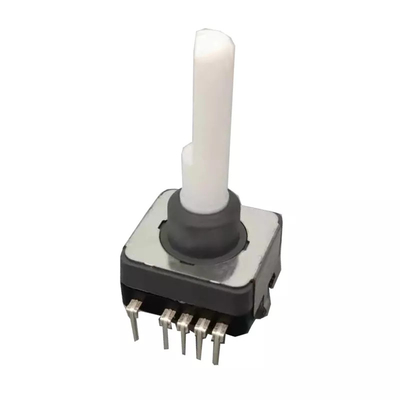

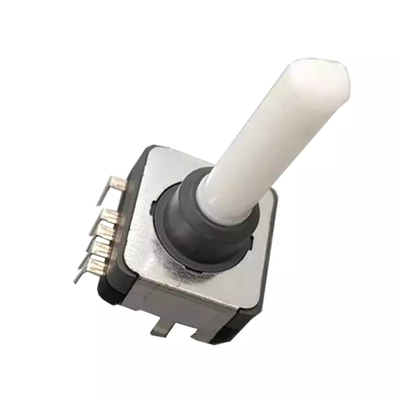

5-pin LR18 series 18 mm low-profile for microscopic current circuits used in washing machine rotary logic switch
Product Description
Specification
|
item
|
value
|
|
Certification
|
CE
|
|
Whether the smart
|
No
|
|
Place of Origin
|
China
|
|
|
Guangdong
|
|
Brand Name
|
TQ
|
|
Model Number
|
LR18-N6-L29F15.7-D1-16CC
|
|
Max. Current
|
1mA
|
|
Max. Voltage
|
DC 10 V MAX
|
|
Mechanical Life
|
30000
|
|
Rated Voltage
|
DC 10 V MAX
|
|
Resistance load
|
1mA
|
|
Contact resistance
|
10Ω~100Ω
|
|
Withstand Voltage
|
AC 50 V
|
|
Insulation resistance
|
more than 50 MΩ at DC250V
|
|
Total notional angle
|
360°
|
|
Rotational torque
|
30 mN.m~70 mN.m
|
|
Rotational life
|
30000
|
|
Waterproof
|
IP64
|
|
Soldering
|
solder temperature 260±5℃ or less Immersion time within 3s
|
Packing & Delivery
1. Bags, blister boxes, bubble wrap, boxes, cartons
2. Each carton shall be labeled with the original label to register the items in the carton
3. Original packaging, reasonable cutting boxes to save freight
4. Invoices are available
5. Fedex, UPS, DHL online shipping
UPS: special express for North America,need 3-5 working days
DHL: normally 3-5 business days could reach your side
FEDEX: normally 3-10 business days could reach US and European or By Ocean & By Air
Service:WELCOME TO ASK ANY QUESTIONS. Any inquiry will be replied in 12 hours.
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Workshop
We have a large enough production workshop, including manual workshop and fully automated workshop, manual is responsible for all product testing, machine is responsible for rapid production, at least 50,000 products a day
Company Profile
Dongguan TianQian Electronics Co., Ltd. established in 2008, it is specialized in design, development and production of high precision components such as Rotary Potentiometer, Sliding Potentiometer, Foot Switch, Band Switch, AC Switch, Sensor, Encoder, Tact Switch and Connectors. The products are widely used in Dimmable Lighting, Audio Mixer, Home Appliances, Automobile, Multimedia, Audio Equipments, Instrument, Toys, Aviation Model and Communication Equipments. We have an area of 3,000 square meters of factory building. Our R&D team members have more than 20 years experience in the component industry. In order to meet the high quality demand from worldwide customers, we widely use automated production lines which can output more than 80% of annual production capacity. It takes pride in the achievement that we have been the key supplier of JVC, Brother, IKEA, Midea, Microsoft, Honeywell, Sennheiser, Primax and GGEC...etc. With the consistent enterprise principles "Striving Excellence" & "Quality Assurance", we hope both parties can establish a mutual benefit relationship and create a win-win situation.
Certifications & Exhibition
Application
Switch products common some foot switch, guitar switch and rotary switch. They can be used in electric guitars, electric basses, guitar effector, speakers, tape simulators, audio mode conversion, amplifiers, automatic doors, medical equipment defibrillators, frequency converters, small home fans, audio mode switching,juicer and more
Products are widely used in: Internet of things,aviation model, OA transaction machine, computer perimeter,electronic toys,game, car image, power tools, intercom, household appliances, home theater, adjustable lighting and medical equipment,instruments and other fields
Product Drawing
TQ Electronic factory provides it to you
1.Power plant. Professional products and services:We are based in Guangdong, China, start from 2013,sell to North America(15.00%),Western Europe(10.00%),Central America(10.00%),Eastern Europe(10.00%),South America(10.00%),Oceania(5.00%),Eastern Asia(5.00%),Northern Europe(5.00%),Southern Europe(5.00%),Africa(5.00%),Southeast Asia(5.00%). There are total about 301-500 people in our office.
Seven professional product managers online to provide you with exclusive product customization services. A team of five professional engineers provide technical support for us.
2.High quality. Always provide you with detailed product drawings and specifications confirmation (including samples) and manufacture according to your approved specifications.
Always each batch of goods must pass all tests before leaving the factory, and only after passing the tests one by one can they be delivered (including samples).
3.Reasonable price. Alway Factory direct prices.
4.Exclusive service. Always customer service one-on-one exclusive service.Support all-weather after-sales service
5.Accept custom. OEM,Seven professional product managers online to provide you with exclusive product customization services. A team of ten professional engineers provide technical support for us.
We have three factories producing potentiometers, encoders and switches respectively. We believe that quality and service are everything. We are semi-finished products supplier, the quality of our products directly determines the quality of customers' finished products, so we dare not neglect! Come and let us serve you!!!
