Product Details:
|
| Rated Power: | DC 30V 0.5A | Contact Resistance: | 25MΩ MAX |
|---|---|---|---|
| Insulation Resistance: | DC500V 100MΩ Min | Withstand Voltage: | 500V 1(min) |
| Rotational Life: | 100000 Cycles | Application: | Pacemakers, Transducers, Automatic Doors |

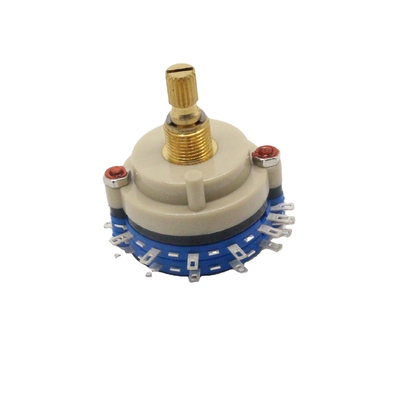

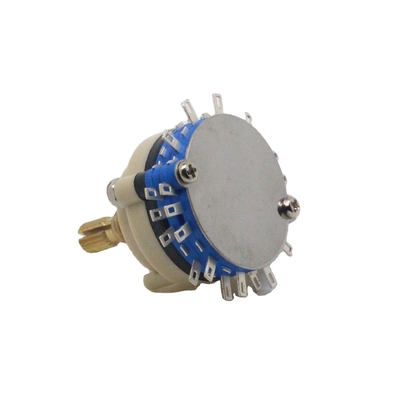

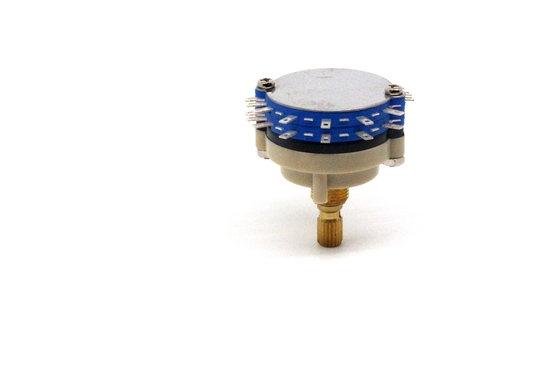

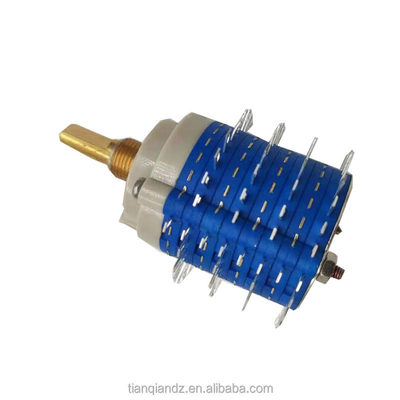

band switch-SR38 2 pole12positions 1pole 24 position Rotary Switch for frequency converter , automatic door
Product Description
Rotary switch is a kind of switch that controls the main contact on and off by rotating the handle. There are also two kinds of structure of rotary switch, which are single-pole unit structure and multi-pole multi-position structure. Monopole unit rotating switch is often used with rotating shaft potentiometer in application, and multi-pole multi-position rotating switch is mostly used for switching the working state line.
Specification
|
item
|
value
|
|
Certification
|
CE
|
|
Place of Origin
|
China
|
|
|
Guangdong
|
|
Brand Name
|
TQ
|
|
Model Number
|
SR38
|
|
Rated Power
|
DC 30V 0.5A
|
|
Contact Resistance
|
25MΩ MAX
|
|
Insulation Resistance
|
DC500V 100MΩ Min
|
|
Withstand Voltage
|
500V 1(min)
|
|
Rotational life
|
100000 cycles
|
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
UPS: special express for North America,need 3-5 working days
DHL: normally 3-5 business days could reach your side
FEDEX: normally 3-10 business days could reach US and European or By Ocean & By Air
Service:WELCOME TO ASK ANY QUESTIONS. Any inquiry will be replied in 12 hours.
Certifications & Exhibition
Application
In a range is to change the resistance value, and then there is a contact switch, which is the switch of the old TV and radio, the fan is a few gears, connected to the fan windings of several groups of lead wire, by changing the number of lines to change the speed, the principle and potentiometer similar.
Products are widely used in: Internet of things,aviation model, OA transaction machine, computer perimeter,electronic toys,game, car image, power tools, intercom, household appliances, home theater, adjustable lighting and medical equipment,instruments and other fields
Workshop
Drawing
FAQ
1. who are we?
We are based in Guangdong, China, start from 2013,sell to North America(15.00%),Western Europe(10.00%),Central America(10.00%),Eastern Europe(10.00%),South America(10.00%),Oceania(5.00%),Eastern Asia(5.00%),Northern Europe(5.00%),Southern Europe(5.00%),Africa(5.00%),Southeast Asia(5.00%). There are total about 301-500 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
potentiometer,encoder,switch,Foot Switch,Rotary Switch
4. why should you buy from us not from other suppliers?
Our R&D team have more than 20 years experience in the component industry.Our customers through all over the world,such as Brother,IKEA,Microsoft,Honeywell etc. The products widely used in aviation model,communication equipment, adjustable lighting.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese
Contact Person: Ember
Tel: +8619913573383
