Product Details:
|
| Product Name: | Band Switch, Rotary Switch, Multichannel Switch | Max. Current: | DC30V 0.3A |
|---|---|---|---|
| Max. Voltage: | 500V AC 1 MIN | Mechanical Life: | OVER 10000 Cycels |
| Initial Contact Resistance: | 20mΩMax | Insulation Resistance: | 500MΩ Min DC500V |
| Withstand Voltage: | 500V AC 1 MIN | Application: | Fans, Automatic Doors, Small Appliances Switches, Speakers |
| Highlight: | 29mm 12 Position Rotary Switch,12 Position Rotary Switch 0.3A,29mm 1 Pole 12 Way Rotary Switch |
||

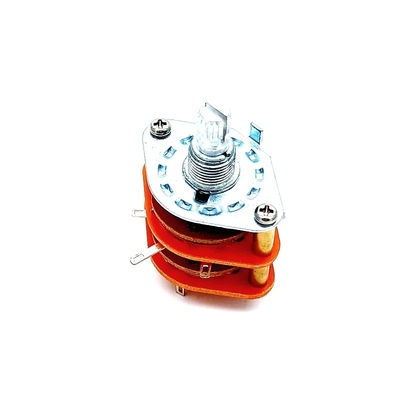

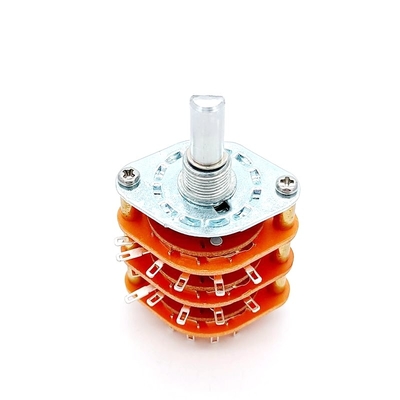

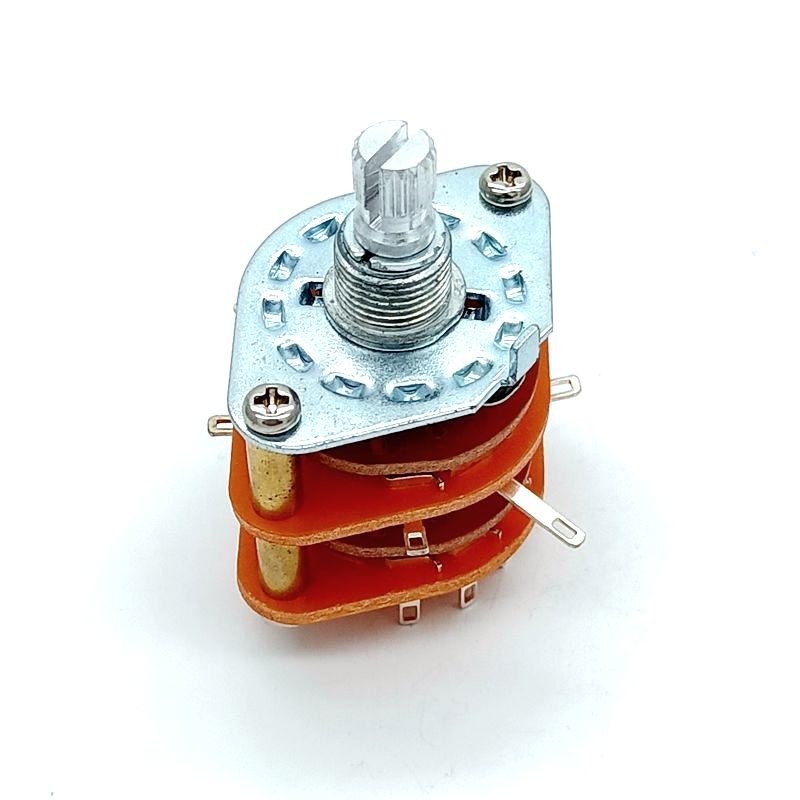

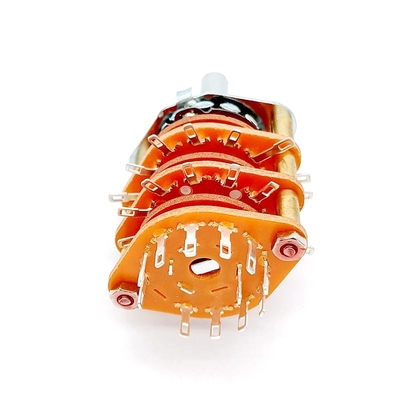

SR29 29mm Multilayer multiplex 12 position Rotary switch for small household appliances, speakers
Product Description
Application: Switch products common some foot switch, guitar switch and rotary switch. They can be used in electric guitars, electric basses, guitar effector, speakers, tape simulators, audio mode conversion, amplifiers, automatic doors, medical equipment defibrillators, frequency converters, small home fans, audio mode switching,juicer and more
Specification
|
item |
value |
|
Certification |
CE |
|
Whether the smart |
No |
|
Place of Origin |
China |
|
|
Guangdong |
|
Brand Name |
TQ |
|
Model Number |
SR29 |
|
Max. Current |
125V AC 0.3A |
|
Max. Voltage |
Applying 500V AC measure for 1 minute |
|
Mechanical Life |
15000 CYCLES |
|
Contact resistance |
Less than 50mΩ |
|
Switch power |
125V AC 0.3A |
|
Insulation resistance |
100MΩ(min) |
|
Voltage proof |
Applying 500V AC measure for 1 minute |
|
Operating force |
0.5~1.2kgf.cm |
|
Rotation stopper strength |
more than 5kgf.cm |
|
Push-pull strength of shaft |
more than 8kgf.cm |
|
more than 8kgf.cm |
0.7*L/30mm Max. |
|
Operating life |
15000cycles |
|
application |
Audio, frequency converter, automatic door |
Packing & Delivery
1. Bags, blister boxes, bubble wrap, boxes, cartons
2. Each carton shall be labeled with the original label to register the items in the carton
3. Original packaging, reasonable cutting boxes to save freight
4. Invoices are available
5. Fedex, UPS, DHL online shipping
UPS: special express for North America,need 3-5 working days
DHL: normally 3-5 business days could reach your side
FEDEX: normally 3-10 business days could reach US and European or By Ocean & By Air
Service:WELCOME TO ASK ANY QUESTIONS. Any inquiry will be replied in 12 hours.
Workshop
We have a large enough production workshop, including manual workshop and fully automated workshop, manual is responsible for all product testing, machine is responsible for rapid production, at least 50,000 products a day
Product Drawing
FAQ
Q: what is your MOQ for this item?
A: MOQ is 1000, but always flexible.
Q: Can I get some samples?
A: Sure, Sample order is available.
Q: what about lead time?
A: 7-10 days after deposit received.
Q: terms of payment?
A: Trade Assurance, T/T, credit card, western union, cash, Money Gram, Paypal
Q: My item was damaged in shipping?
A: Our parts are carefully packaged to prevent damage in shipping. If there is any damage, we will send you a new one
