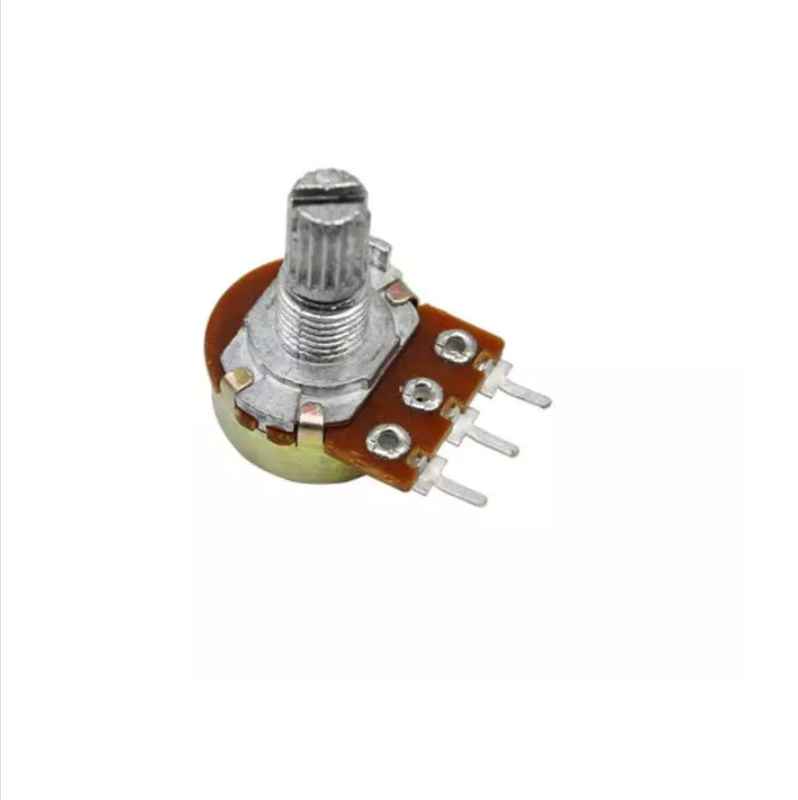

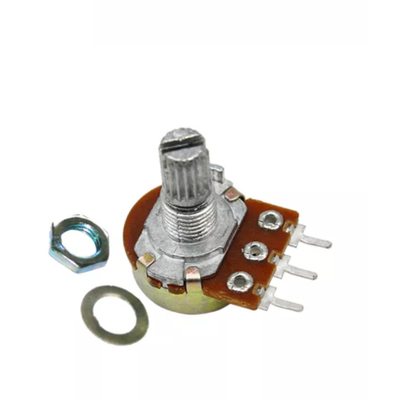

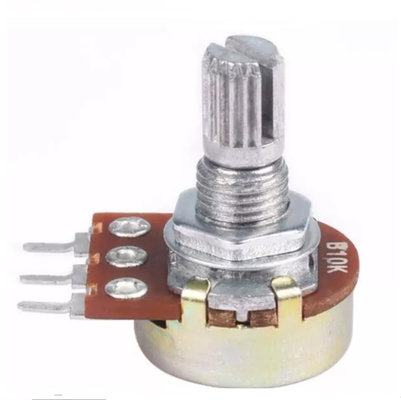

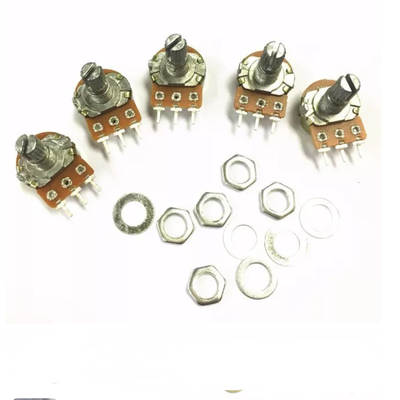

Product Details:
|
| Torque: | Section 4 ±1.5kg | Rated Power: | DC 30V 0.5A |
|---|---|---|---|
| Contact Resistance: | 25mΩ Max. | Insulation Resistance: | DC 500V 100mΩ Min. |
| Withstand Voltage: | 500V | ||
| Highlight: | Section 4 Alpha B100k Potentiometer,Alpha B100k Potentiometer TQ,Potentiometer Pins 1 2 3 TQ |
||
1. Most of the resistors of the potentiometer are made of polycarbonate synthetic resin, and should avoid contact with the following items: ammonia water, other amines, alkaline aqueous solutions, aromatic hydrocarbons, ketones, lipid hydrocarbons, Strong chemicals (too high pH), etc., otherwise it will affect its performance.
2. Avoid using water-capacitive flux when soldering the terminals of the potentiometer, otherwise it will promote metal oxidation and moldy materials; avoid using inferior flux, as poor soldering may cause difficulty in tinning, resulting in poor contact or open circuit.
3. If the terminal of the potentiometer is welded, if the welding temperature is too high or the time is too long, it may cause damage to the potentiometer. The pin type terminal should be soldered at 235℃±5℃ and completed within 3 seconds. The welding should be more than 1.5MM away from the potentiometer body. Do not use solder to flow through the circuit board during soldering; the wire type terminal should be soldered at 350℃± 10°C, completed within 3 seconds. And the terminal should avoid heavy pressure, otherwise it is easy to cause poor contact.
1. who are we?
We are based in Guangdong, China, start from 2013,sell to Domestic Market(55.00%),Eastern Asia(20.00%),North America(10.00%),Southeast Asia(10.00%),Northern Europe(5.00%). There are total about 101-200 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Encoder,Potentiometer/Switch/Encoder
4. why should you buy from us not from other suppliers?
Our R&D team have more than 20 years experience in the component industry.Our customers through all over the world,such as Brother,,Microsoft,Honeywell etc. The products widely used in aviation model,communication equipment, adjustable lighting.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese
