Product Details:
|
| Torque: | Section 4 ±1.5kg | Rated Power: | DC 30V 0.5A |
|---|---|---|---|
| Contact Resistance: | 25mΩ Max. | Insulation Resistance: | DC 500V 100mΩ Min. |
| Withstand Voltage: | 500V | ||

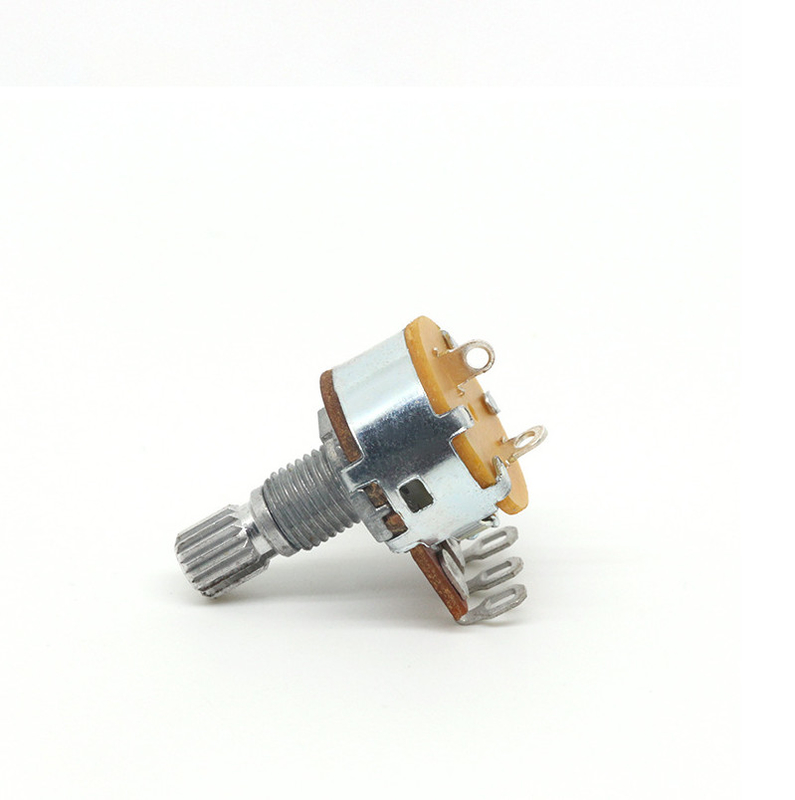

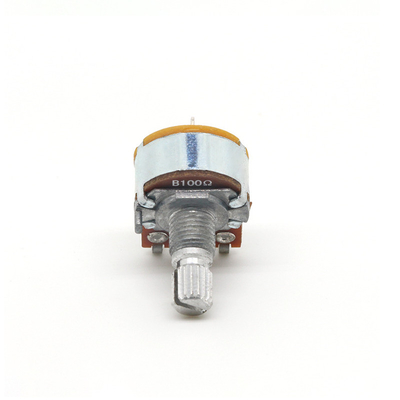

| High Light: | 250VAC Single Pole 4 Position Rotary Switch,Single Pole 4 Position Rotary Switch 0.5A,0.5A Rotary Potentiometer Switch |
||
The main functions in the circuit are introduced:
1. Used as a voltage divider
The potentiometer is a continuously adjustable resistor. When the handle or slide of the potentiometer is adjusted, the movable contact slides on the resistor body. At this time, the output voltage of the potentiometer can be obtained in a certain relationship with the applied voltage of the potentiometer and the rotation angle or stroke of the movable arm.
2. Used as a varistor
When the potentiometer is used as a varistor, it should be connected as a two-terminal device, so that a smooth and continuously changing resistance value can be obtained within the stroke range of the potentiometer.
3. Used as a current controller
When the potentiometer is used as a current controller, one of the selected current outputs must be a sliding contact terminal.
1. who are we?
We are based in Guangdong, China, start from 2013,sell to Domestic Market(55.00%),Eastern Asia(20.00%),North America(10.00%),Southeast Asia(10.00%),Northern Europe(5.00%). There are total about 101-200 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Encoder,Potentiometer/Switch/Encoder
4. why should you buy from us not from other suppliers?
Our R&D team have more than 20 years experience in the component industry.Our customers through all over the world,such as Brother,IKEA,Microsoft,Honeywell etc. The products widely used in aviation model,communication equipment, adjustable lighting.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese
Contact Person: Emma
Tel: +8613613717515
